General
Device Type

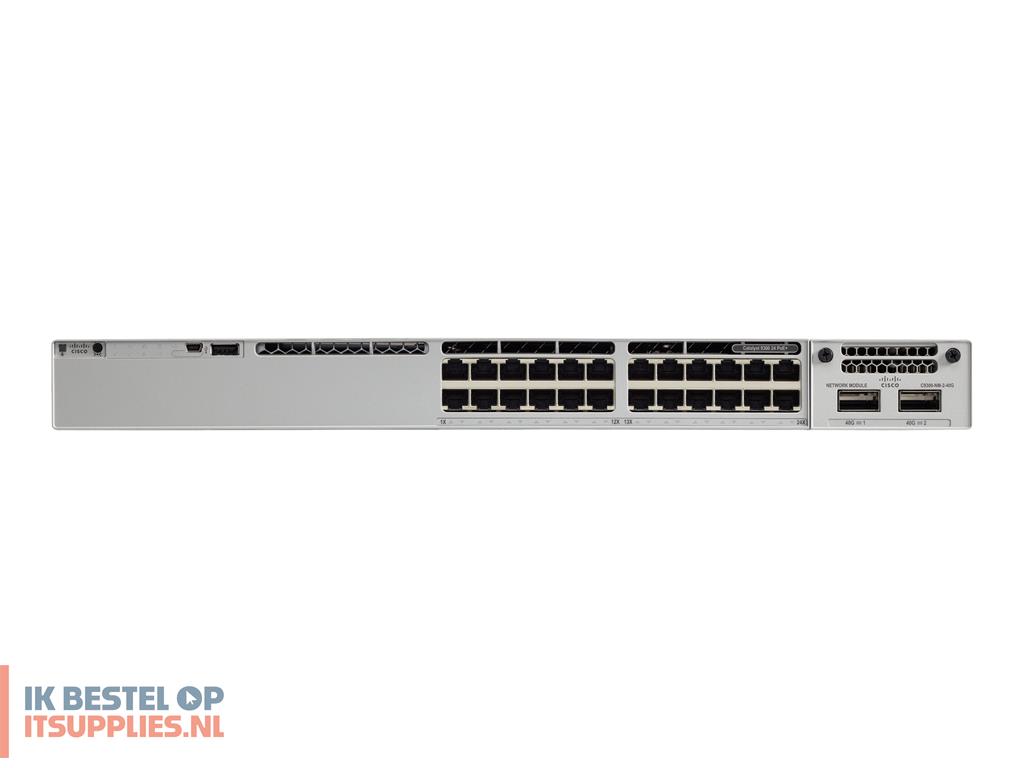

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
Power Over Ethernet (PoE)
UPOE
Performance
Switching capacity: 640 Gbps
Switching capacity with stacking: 1.12 Tbps
Forwarding rate: 476.19 Mpps
Forwarding rate with stacking: 833.33 Mpps
Capacity
IPv4 routing table entries: 64000
IPv6 routing table entries: 32000
Flexible NetFlow entries: 256000
VLAN IDs: 4094
Switched virtual interfaces (SVIs): 2000
QoS scale entries: 18000
ACL scale entries: 18000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, FTP client, 3 fans, CoPP, 64MB packet buffer, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Expansion / Connectivity
Interfaces
24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS Required
Cisco IOS Universal
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
