General
Device Type

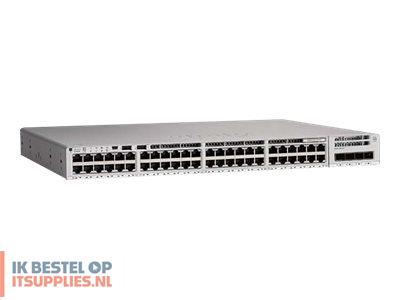

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Ports
48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity with stacking: 336 Gbps
Switching bandwidth: 176 Gbps
Forwarding rate: 130.95 Mpps
Forwarding rate with stacking: 250 Mpps
Capacity
Virtual networks: 4
IPv4 routing table entries: 4000
IPv6 routing table entries: 2000
Flexible NetFlow entries: 16000
Packet buffer size: 6 MB
VLAN IDs: 4096
Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces
48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 100-240 V (50/60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
