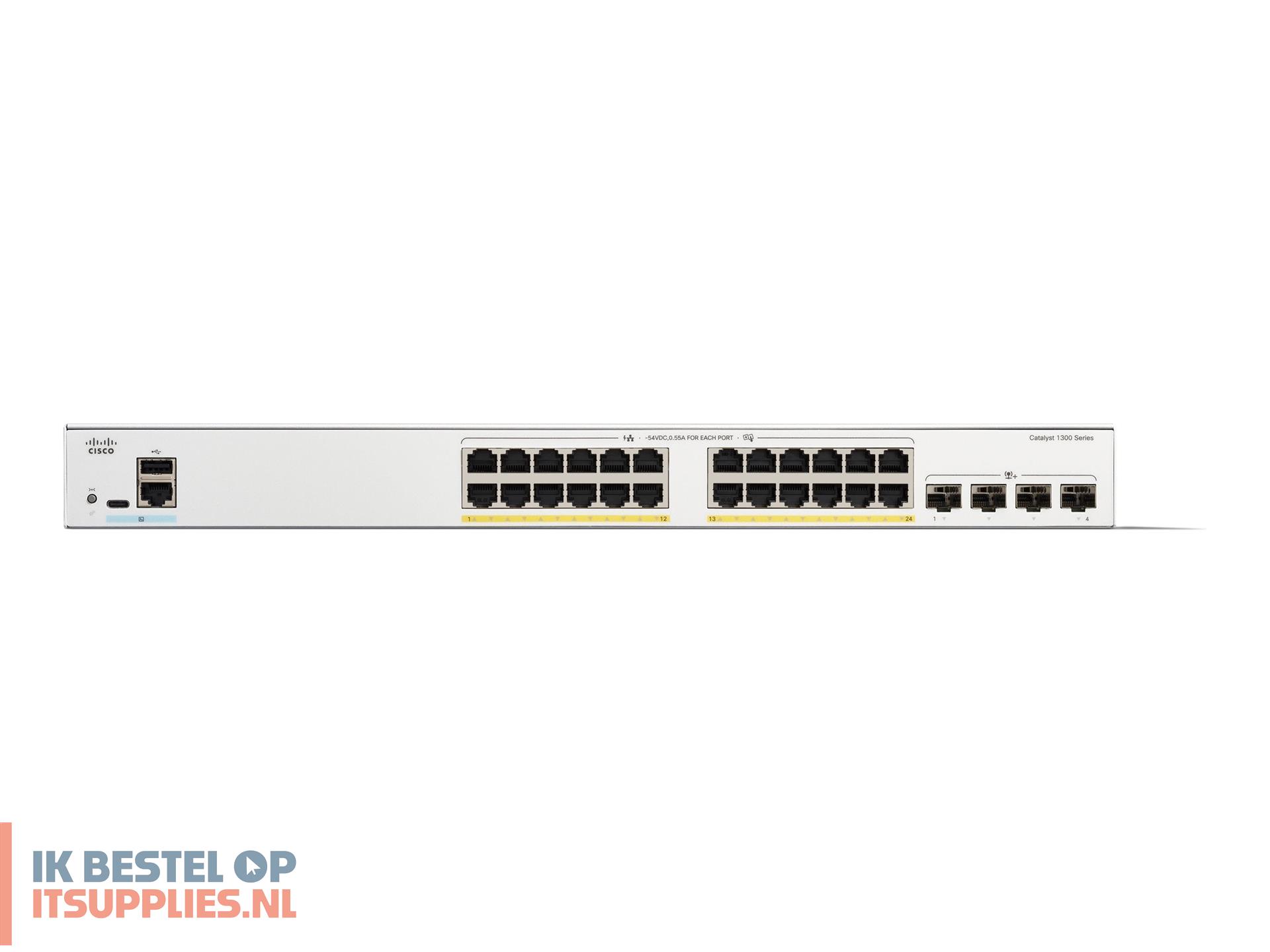

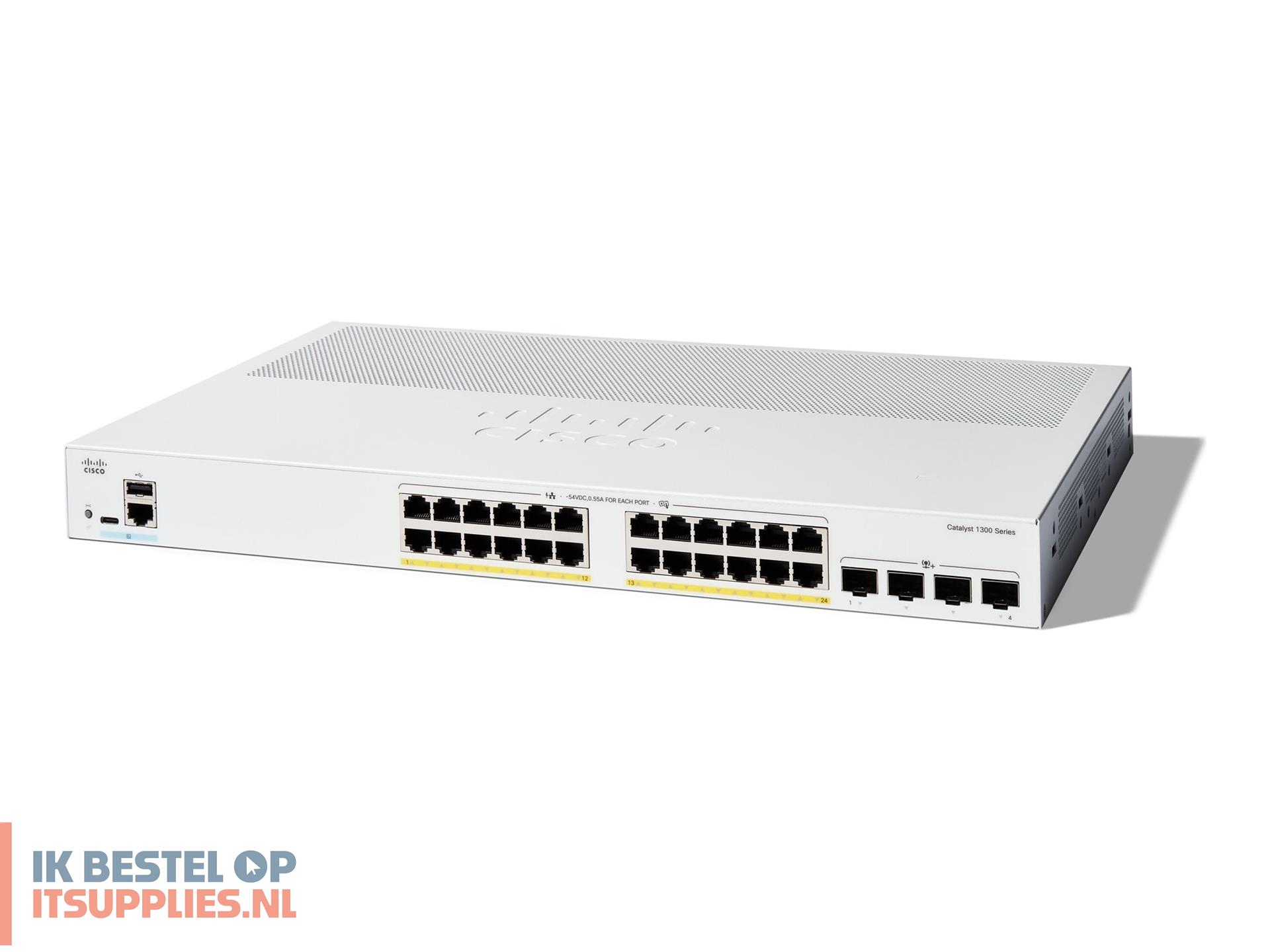

Cisco Catalyst 1300. Switch type: Managed, Switch-laag: L2/L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 24, Console port: RJ-45/USB Type-C. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 128 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack-montage
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Locatie-instellingen (CLI) configureren
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Console port
RJ-45/USB Type-C
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ondersteundende kabel types
Cat5e
Op beleid gebaseerde routering
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
QinQ-implementatie
Selective QinQ
Virtuele LAN-functies
Private VLAN, Voice VLAN
Data-uitwisseling
MAC-adrestabel
16000 entries
Switchingcapaciteit
128 Gbit/s
Aantal statische routes
990
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
1,5 MB
Beveiliging
DHCP-functies
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
1024
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Algoritmen wachtrijplanning
Weighted Round Robin (WRR)
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
GARP VLAN Registratieprotocol (GVRP)
Ja
IPv4- & IPv6-functies
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Kleur van het product
Grijs
Prestatie
Frequentie van processor
1,4 MHz
Mean time between failures (MTBF)
698220 uur
Energie
AC-ingangsspanning
100 - 220 V
AC-ingangsfrequentie
50/60 Hz
Stroomverbruik (typisch)
31,8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
24
Totaal Power over Ethernet (PoE)-budget
195 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Warmtedissipatie
804,1 BTU/h
Verpakking
Breedte verpakking
430 mm
Diepte verpakking
575,1 mm
Hoogte verpakking
105,9 mm
Gewicht verpakking
5,99 kg
Certificaten
Certificering
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
