General

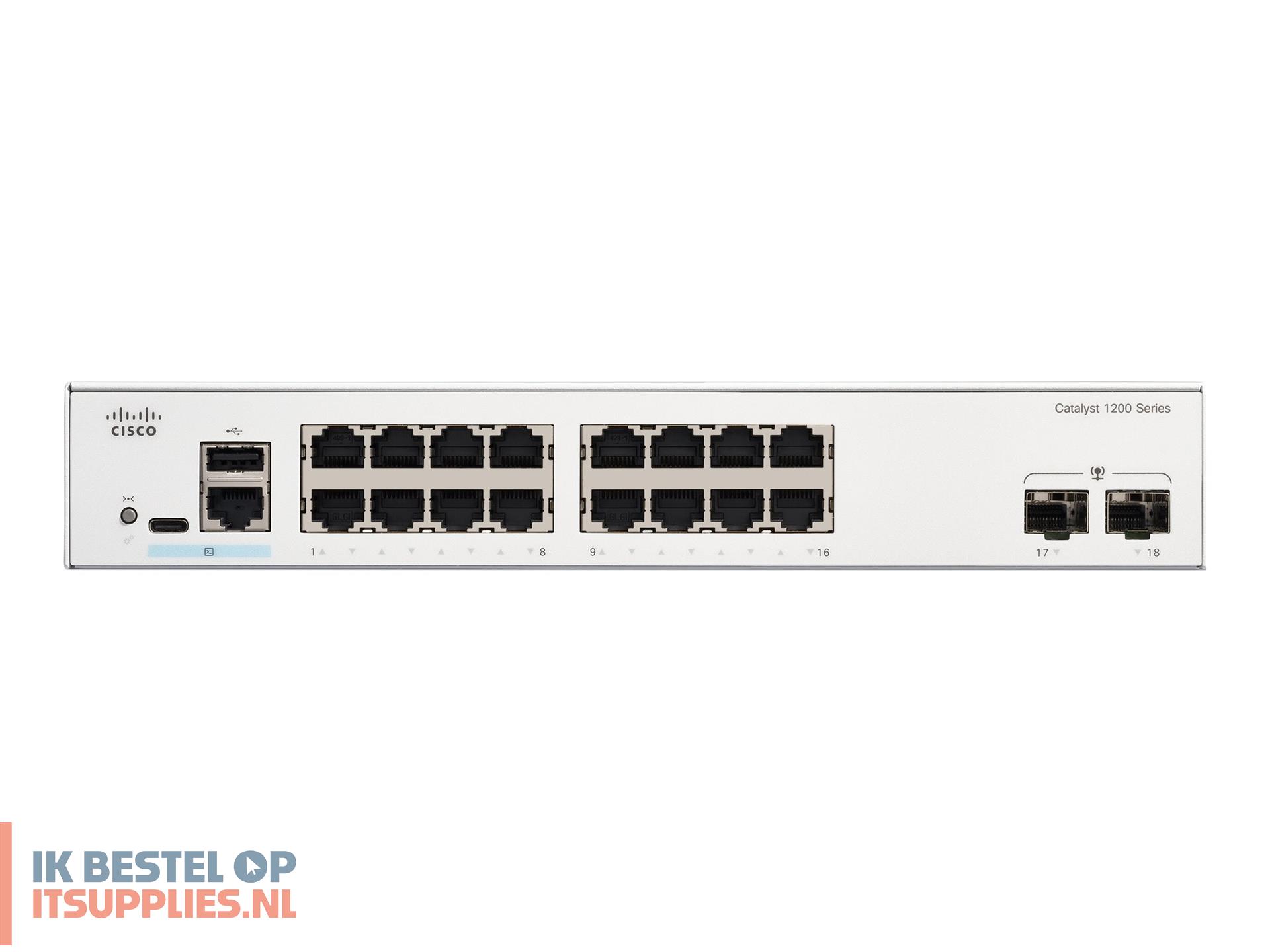

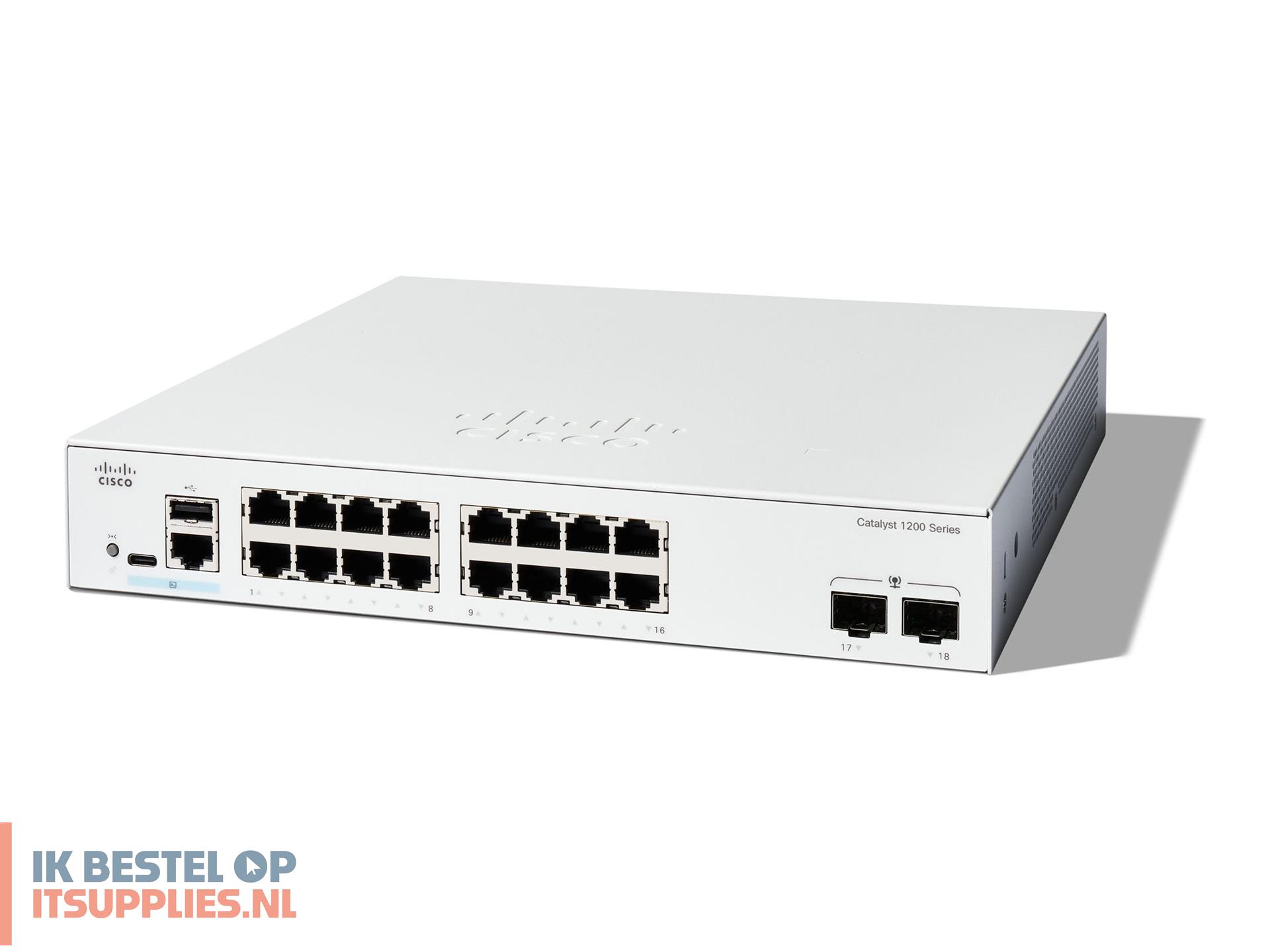

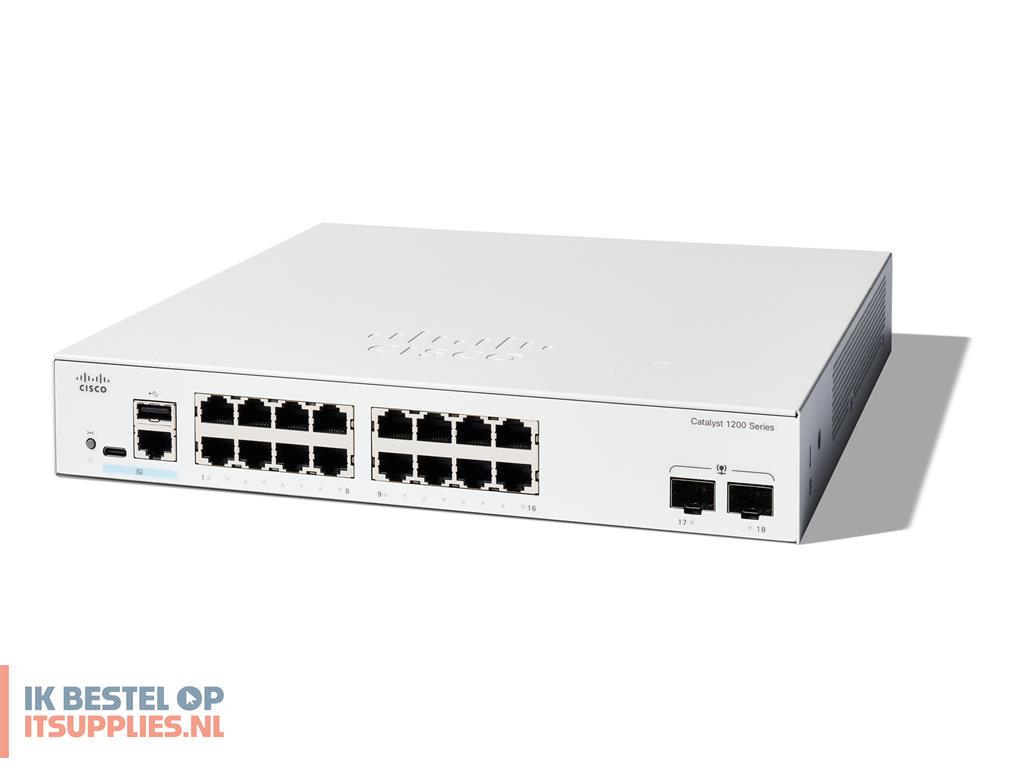

Device Type
Switch - 16 ports - L3 - smart
Enclosure Type
Rack-mountable
Ports
16 x 10/100/1000 + 2 x Gigabit Ethernet SFP
Performance
Forwarding rate (64-byte packets): 26.78 Mpps
Switching capacity: 36 Gbps
Capacity
MSTP instances: 8
PVST+ instances: 126
RPVST+ instances: 126
Link aggregation groups: 4
Link aggregation ports: 8
Active VLANs: 255
IGMP multicast groups: 255
IPv4 routes (static): 32
IPv4 interfaces: 16
ACL rules: 512
Priority queues: 8
Packet buffer size: 1.5 MB
MAC Address Table Size
8000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Authentication Method
RADIUS
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Status Indicators
System, link/activity/speed
Expansion / Connectivity
Interfaces
16 x 1000Base-T RJ-45
2 x 1000Base-X SFP
1 x console RJ-45
1 x USB-C console
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Miscellaneous
Included Accessories
Mounting kit, pointer card
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime - response time: next business day
Technical support - consulting - 1 year
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% RH (non-condensing)
