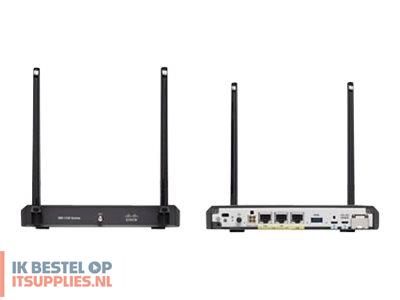

Cisco Integrated Services Router 1109

Router - 2-port switch (integrated)

Desktop

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

Encryption throughput: 200 Mbps

Virtual interfaces (VLANs): 32

IPSec, PPPoE, DHCP, DNS, L2TPv3

OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP

SNMP, RMON, CLI, TR-069

DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA

RADIUS

CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM

IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN55022, ICES-003, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN61000-3-3, EN61000-3-2, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13

4 GB

4 GB

Status

Wireless cellular modem

LTE, FDD LTE

WAN: 1 x 1000Base-T/1000Base-X - RJ-45
LAN: 2 x 1000Base-T - RJ-45
USB 3.0: 1 x
Antenna: 1 x GPS connector

1 (total) / 1 (free) x SIM

External

2

External power adapter

AC 120/230 V (50/60 Hz)

30 Watt

Europe

Cisco IOS XE

32.3 cm

21.34 cm

15.24 cm

1.02 kg

Limited warranty - advance parts replacement - 1 year - response time: 10 days

0 °C

50 °C

10 - 85% (non-condensing)
