General
Device Type

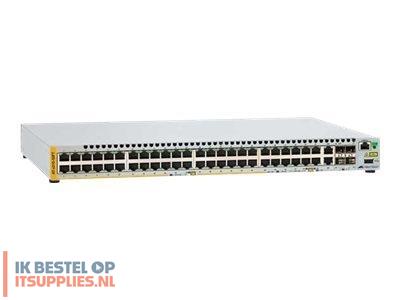

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Ports
48 x 10/100 + 2 x combo SFP
Performance
Switching capacity: 17.6 Gbps ¦ Forwarding performance: 10.1 Mpps
MAC Address Table Size
16K entries
Routing Protocol
Static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Encryption Algorithm
DES, Triple DES, RSA, MD5, SHA-1, TLS 1.0, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Flow control, full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, SNMP trap, DHCP client, Energy Efficient Ethernet, Network Access Control (NAC), Strict Priority Queuing (SPQ), loop prevention, enviromental monitoring, tagged VLAN, 3MB packet buffer, Storm Control
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Expansion / Connectivity
Interfaces
48 x 100Base-TX RJ-45 ¦ 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x SFP uplink ¦ 2 x SFP+ stacking ¦ 1 x USB 2.0 Type A
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
48 Watt
Miscellaneous
Compliant Standards
FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime ¦ Limited warranty - power supply and fans - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
