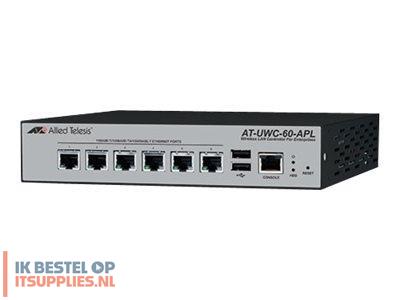

Allied Telesis AT UWC-60-APL - Network management device

Productcode: AT-UWC-60-APL-50 | EAN/UPC: 0767035200064

€ 1.110,52 excl.btw

Allied Telesis AT UWC-60-APL - Network management device - 6 ports - GigE - 1U

Simplified Plug and Play
RF management and control
Flexible data forwarding
Wireless IPS
Enterprise class security
Guest access
Seamless mobility
Resilience
Wireless controller grouping
Graphic network visualization

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Allied Telesis AT UWC-60-APL - Network management device

€ 1343,73 incl. 21% btw € 1110,52excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Allied Telesis AT UWC-60-APL - Network management device - 6 ports - GigE - 1U

Product features

Simplified Plug and Play
The Allied Telesis Unified Wireless Controller (UWC) detects, authenticates, and automatically configures the access points as they are installed. The discovery mechanism works at Layer 2 and Layer 3 and dramatically simplifies the task of deployment.
RF management and control
One of the biggest challenges with wireless solutions is the dynamic nature of the environment and the highly mobile nature of client devices. The UWC continuously monitors the RF coverage from access points and dynamically reconfigures the radios to minimize interference and improve performance. Load balancing is performed automatically to distribute clients among the available access points, which further improves the user experience. In addition, the automated management enables the UWC to alter the configuration of surrounding radios should an access point fail - ensuring no loss of coverage for client devices.
Flexible data forwarding
The UWC can be configured for either centralized or distributed data forwarding, enabling the solution to be tailored to meet the requirements of specific applications or environments. For environments with highly mobile clients, data traffic is encapsulated in tunnels to maintain the client's permanent IP address when the client is roaming through different subnets. When deployed for centralized data forwarding, the UWC is responsible for the forwarding of all traffic. This allows the application of strong security policies as all traffic must traverse the UWC, where it can be forwarded or filtered as required. In the distributed scenario, the access points are fully responsible for determining how and where to forward data - including the application of Quality of Service (QoS) or security policies. The choice of data forwarding scheme may be applied dynamically, based on WLAN/SSID: "Employee access should use centralized data forwarding to ensure that an organization's corporate security policies are being adhered to. "Guest access may be provided, using distributed data forwarding as the guest data traffic is isolated from the corporate network and it is not necessary to enforce any specific security policy.
Wireless IPS
An integrated Intrusion Prevention System (IPS) is included as part of the comprehensive security features of UWC. The wireless IPS monitors the airspace and protects the network from rogue or unauthorized access points and other rogue devices. Countermeasures are taken automatically to mitigate any intrusion attempts.
Enterprise-class security
A secure wireless network guarantees data confidentiality, integrity, mutual authentication and availability. In order to deliver the highest level of confidentiality and integrity, the UWC and controlled access points employs WPA2 (IEEE 802.11i). WPA2 is an advanced set of security features that satisfies the policy requirements for both large scale and residential networks. WPA2-Enterprise provides a centralized security model through the use of RADIUS for managing authentication and inter-operates with the IEEE 802.1x framework, supporting multiple EAP modes.
Guest access
Guests and contractors can connect directly to the Internet without compromising network security, because they are segregated within dedicated VLANs that have no access to corporate resources. Guest access is controlled through the use of a captive portal, which provides Web-authentication for unauthorized users. The captive portal can be customized per SSID, enabling different Web portal pages to be provided for each SSID.
Seamless mobility
One of the benefits of a wireless solution is the mobility and freedom it delivers. As clients become increasingly mobile, maintaining connectivity while roaming from one part of the network to another becomes challenging. Seamless roaming enables a client to move an established wireless network association from one access point to another, maintaining the wireless connection and delivering constant network connectivity. Fast roaming minimizes the time required to transition between the access points, so that mobile applications like handheld data scanners, smartphones and tablets don't lose information or connectivity. The UWC delivers fast roaming and seamless mobility at Layer 2 and Layer 3, so regardless of network topology, the UWC will deliver the best mobility experience possible.
Resilience
The UWC can be configured in a highly redundant topology to ensure that no single failure will result in an interruption to network coverage. If the UWC is unavailable for any reason, the associated access points will first try to connect to a redundant controller. If they are unable to locate a redundant controller, they will switch to stand-alone mode - maintaining services on a best-effort basis.
Wireless controller grouping
Multiple wireless controllers can be configured as a "peer group" or cluster. The resulting cluster becomes the single point for provisioning, firmware upgrade, maintenance, RF, and mobility operations.
Graphic network visualization
In addition to the benefits around provisioning and maintenance, the UWC provides a single user interface to monitor the performance of the wireless network. The dashboard provides an intuitive view of RF coverage, the position of wireless devices and their performance metrics - even when deployed in a multi-floor environment. The location tracking facility populates the map, giving immediate visibility of the wireless network and thereby simplifying the survey of unauthorized entities along with simplifying the task of troubleshooting.

Specificaties

General

Device Type

Network management device

Height (Rack Units)

Width

21 cm

Depth

21 cm

Height

4.2 cm

Weight

1.5 kg

Localisation

Europe

Networking

Form Factor

External

Ports Qty

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol

SNMP 1, SNMP 2c, HTTP, HTTPS

Capacity

Managed clients: 8000 ¦ Manageable access points: up to 60

Features

Syslog support, DoS attack prevention, DFS support, Wireless Distribution System (WDS) support, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), roaming function, bandwidth control, rogue access point detection, DHCP client, Class of Service (CoS), tagged VLAN, metal housing, Transmit Power Control (TPC)

Encryption Algorithm

TLS, PEAP, TTLS, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise

Authentication Method

RADIUS, Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n

Expansion / Connectivity

Interfaces

6 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB 2.0 - Type A

Miscellaneous

MTBF

55,000 hours

Compliant Standards

EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, IC, EN 61000-4-5, FCC, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-07, EN 61000-4-12, cULus, TUV T, KC, EAC, RCM

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

35 Watt

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90%

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
