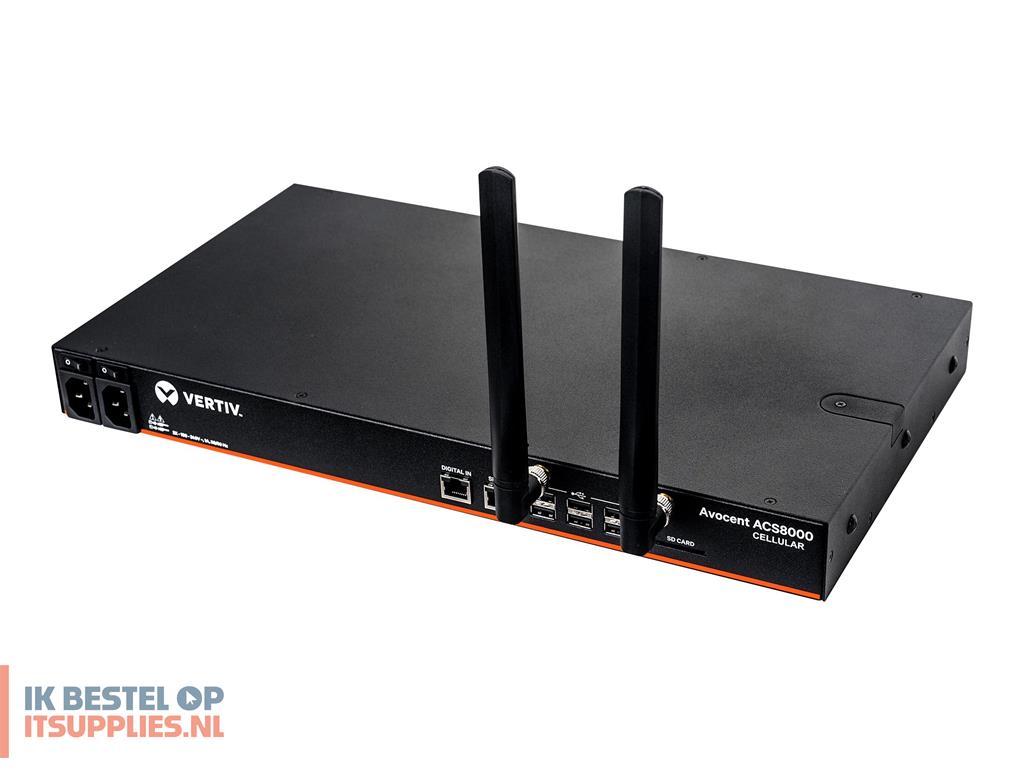

Vertiv Avocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400

Productcode: ACS8008-EU-DAC-400 | EAN/UPC: -

€ 3.899,72 excl.btw

Avocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400 - Console server - 8 ports - 1GbE, RS-232, RS-422, RS-485 - LTE B1/B20/B28/B3/B7/B8 - 1U - rack-mountable

Cellular connectivity provides both primary WAN interface and secondary failover support
Environmental sensor port gives visibility into onsite conditions
Secure in-band and out-of-band network remote management
Fast, automated configuration with Zero Touch Provisioning
Access and troubleshoot remote locations using automatic network failover to cellular, Ethernet or analog modem
No need for adaptors with automatic Cyclades and Cisco pin-out conversions
Compliance with data center access and security policies customizable, multiple access levels
Expanded support for Rack PDUs from Vertiv Geist, ServerTech, APC, Raritan and Eaton
Support for Vertiv GXT4 and Vertiv GXT5 UPS systems
IPv6 and IPv4 support for network deployments
Integration with Avocent DSView software for centralized management
Console event logging and notification, including "last gasp" capture
Regulatory compliance and easy troubleshooting - online and off-line data logging with time stamps

Op voorraad: 1 stuk(s)

Levertijd:

Product:
Vertiv Avocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400

€ 4718,66 incl. 21% btw € 3899,72excl. 21% btw

Winkelwagen Offerte

Omschrijving

Avocent ACS 8000 Advanced Console Server ACS8008-EU-DAC-400 - Console server - 8 ports - 1GbE, RS-232, RS-422, RS-485 - LTE B1/B20/B28/B3/B7/B8 - 1U - rack-mountable

Product features

Robust connectivity
Equipped with a variety of interfaces including Ethernet 1000, 1000Base-T, RS-232/422/485, USB 2.0, and sensor ports, the Avocent ACS 8000 Advanced Console Server ensures comprehensive connectivity options for diverse networking requirements.
Enhanced security
Featuring advanced authentication methods such as DSView and compliance with multiple standards including FCC, UL, and more, this console server ensures a secure networking environment for sensitive data transmission.
High performance
Powered by an ARM A9 processor and equipped with 1 GB DDR3L SDRAM and 16 GB flash memory, the Avocent ACS 8000 delivers reliable and efficient performance for managing network operations.
Mobile broadband support
With LTE support covering multiple bands, the Avocent ACS 8000 Advanced Console Server offers the flexibility of mobile broadband connectivity, enabling remote management and monitoring.
Durable and operational under extreme conditions
Designed to operate within a wide temperature range of -10°C to 60°C and withstand humidity levels of 5 - 95%, ensuring reliability in various environmental conditions.

Specificaties

General

Device Type

Console server

Height (Rack Units)

Width

43.82 cm

Depth

24.13 cm

Height

4.45 cm

Localisation

Europe

Processor / Memory / Storage

Processors Installed

1 x ARM A9

RAM

1 GB DDR3L SDRAM

Flash Memory

16 GB

Networking

Form Factor

Rack-mountable

Ports Qty

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485

Authentication Method

DSView

Communications

Mobile Broadband Access

Yes

Mobile Band

LTE B1/B20/B28/B3/B7/B8

Supported Flash Memory Cards

SD Memory Card

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SIM card

Interfaces

2 x Ethernet 1000 - SFP (mini-GBIC)
2 x 1000Base-T - RJ-45
1 x management (RS-232) - RJ-45
2 x RS-232/422/485 - RJ-45
6 x RS-232 - RJ-45
8 x USB 2.0 - Type A
1 x sensor - RJ-45
4 x sensor

Miscellaneous

Compliant Standards

FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, UL 60950-1 Second Edition, KCC, FCC Part 22, FCC Part 24, PTCRB, FCC Part 27, IEC 60950-1 Second Edition, RCM, FCC Part 15 Class B, CU, cUL No.60950-1 Second Edition

Power

Power Device

Internal power supply

Installed Qty

Max Supported Qty

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

28 Watt

Environmental Parameters

Min Operating Temperature

-10 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
