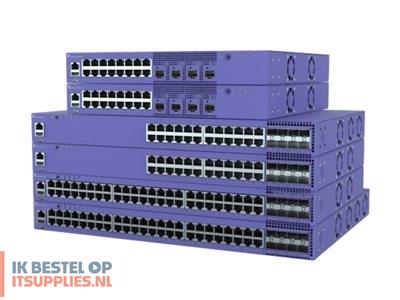

Extreme Networks ExtremeSwitching 5320-48P-8XE

Switch - 48 ports - L3 - Managed

Rack-mountable

Gigabit Ethernet

48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x SFP-DD (stackable)

PoE

740 W

Aggregate bandwidth: 256 Gbps
Frame rate: 190.5 Mpps

32000 entries

8

CLI

Auto-sensing per device, half duplex mode, full duplex mode, MACsec support

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az

48 x 10/100/1000 Base-T RJ-45
8 x 1/10GBase-X SFP+
1 x serial (console) RJ-45
1 x management (Gigabit LAN) RJ-45
1 x USB
1 x console (micro-USB)

Internal power supply

1

AC

Included

BSMI, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, UL 60950-1, KCC, ANATEL, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EAC, EN 61000-3-3:2013, EMC 2014/30/EU, EN 61000-3-2:2014, FCC CFR47 Part 15 A, LVD 2014/35/EU, EN 300 386, EN 62368-1, EN 55032 Class A, CISPR 32, NRCS, ACMA RCM, IEEE 802.3at, EN 60825-1 Class 1, EN60950-1 (2nd Edition), IEEE 802.3ae, IEEE 802.3az, FCC CFR21 Part 1040.10, AS/NZS CISPR 32, IEC 62368-1 CB Scheme, Mexico NOM, UL/CUL 62368-1, IEC 60950-1 (CB Certificate), IEEE 802.3ab, CISPR 24 Class A

Base Software License, ExtremeCloud IQ Pilot (1 year)

44 cm

33 cm

4.36 cm

5 kg

0 °C

50 °C

10 - 95% RH (non-condensing)

-40 °C

70 °C

10 - 95% RH (non-condensing)
