General
Device Type

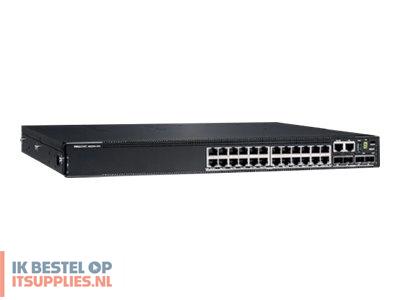

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
2.5 Gigabit Ethernet
Ports
24 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28
Performance
Switching capacity: 480 Gbps
Forwarding rate: 667 Mpps
Capacity
Priority queues per port: 8
RIP interfaces: 256
ARP entries: 4096
NDP entries: 512
VLANs supported: 4096
IPv4 routes (static): 256
IPv4 routes (dynamic): 256
IPv6 routes (static): 128
Maximum ACL rules per interface (IPv4) ingress rules: 1023
Maximum ACL rules per interface (IPv4) egress rules: 1023
Maximum ACL rules per interface (IPv6) ingress rules: 1023
Maximum ACL rules per interface (IPv6) egress rules: 509
Maximum VLAN interfaces with ACLs applied: 24
Max ACL rules system-wide: 3914
MAC Address Table Size
32K entries
Routing Protocol
OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast
Remote Management Protocol
SNMP 2, SNMP, RMON, HTTP
Authentication Method
RADIUS, TACACS+
Features
VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, MSTP support, ACL support, 4MB packet buffer, VLAN Tagging, flow-based QoS
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ax
Expansion / Connectivity
Interfaces
24 x 10/100/1000/2.5G RJ-45
4 x 25Gbit LAN SFP28
1 x 10/100/1000 Base-T RJ-45 management
2 x 40Gbit LAN QSFP+ stacking
1 x USB Type A
1 x micro-USB 2.0 Type B
1 x serial (RS-232) RJ-45 console
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
238 Watt
Miscellaneous
Cables Included
RJ-45 to DB-9 cable
Micro-USB to USB cable
Rack Mounting Kit
Included
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, FDA 21CFR1040.10, EN 55022:2006+A1:2007 Class A, FDA 21CFR1040.11, VCCI V-3/2009 Class A, UL/CSA60950-1 (2nd Edition), EN 55024:1998+A1:2001+A2:2003
Manufacturer Selling Program
CAMPUS Smart Value
Software / System Requirements
Software Included
Dell EMC OS6
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
65 °C
Humidity Range Storage
0 - 85%
