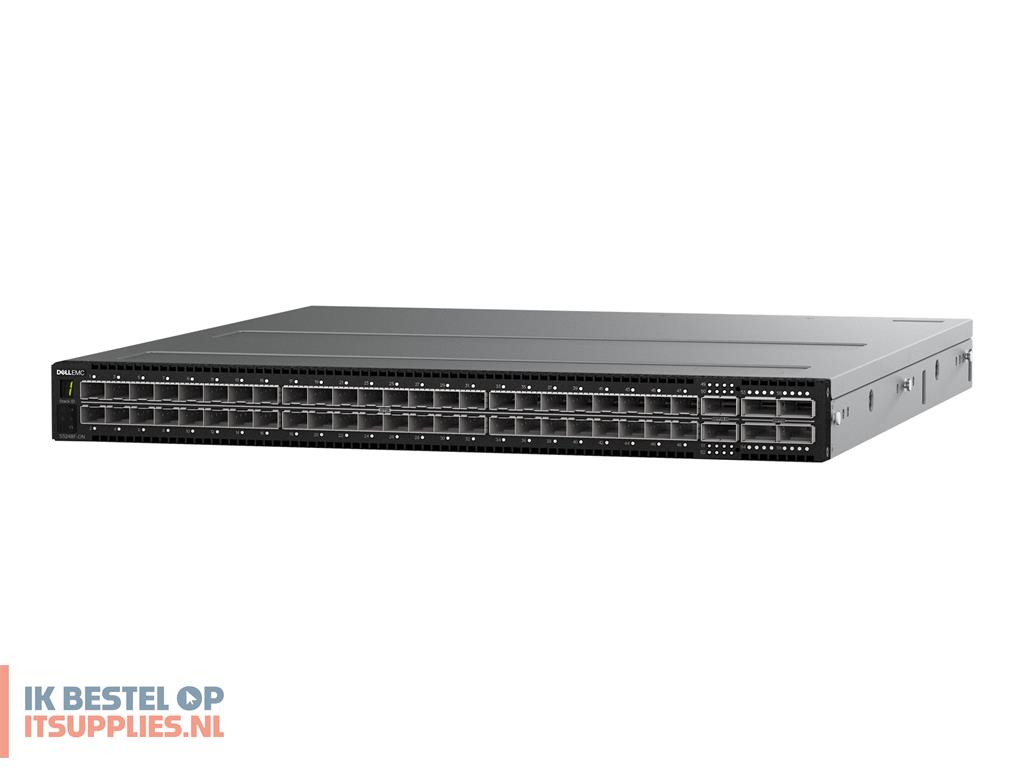

Dell Networking S5248F-ON - Switch

Switch - 48 ports - L3 - Managed

Front to back airflow rack-mountable 1U

25 Gigabit Ethernet

48 x 25 Gigabit SFP28 + 4 x 100 Gigabit QSFP28 + 2 x 200 Gigabit QSFP28-DD

Switching capacity: 2 Tbps

MAC addresses: 160000
ARP entries: 128000
IPv4 routes: 128000
IPv6 routes: 64000
Multicast hosts: 32000
Link aggregation groups: 16
Layer 2 VLANs: 4000
MSTP instances: 64

OSPF, BGP-4, OSPFv2, OSPFv3, policy-based routing (PBR)

SNMP 1, SNMP 2, TFTP, SSH-2, CLI, SCP

MD5

RADIUS, TACACS

Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Network Access Control (NAC), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client, VLAN Tagging

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz

16 GB

48 x 25Gbit LAN SFP28
4 x 100Gbit LAN QSFP28
2 x 200Gbit LAN QSFP28-DD
1 x serial (RS-232) RJ-45

Internal power supply - hot-plug

2

2

Yes

AC 120/230 V (50/60 Hz)

400 Watt

Front-to-rear airflow

EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, FDA 21CFR1040.10, EN 55022:2006+A1:2007 Class A, FDA 21CFR1040.11, VCCI V-3/2009 Class A, EU RoHS, UL/CSA60950-1 (2nd Edition), FCC CFR47 Part 15 B 2011 Class A, EN 55024:1998+A1:2001+A2:2003

Dell Smart Value

Dell Networking OS 10

43.4 cm

46 cm

4.4 cm

9.7 kg

Limited warranty - 1 year - carry-in

0 °C

45 °C

5 - 90% (non-condensing)

-40 °C

70 °C

5 - 90% (non-condensing)
