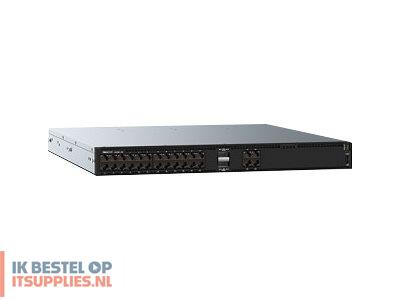

EMC Dell Networking S4128T-ON - Switch

Switch - 28 ports - L3 - Managed

1 year Premier Support with Next Business Day Hardware Warranty

Front to back airflow rack-mountable 1U

10 Gigabit Ethernet

28 x 10GBase-T + 2 x 100 Gigabit QSFP28

Switching capacity: 960 Gbps
Throughput: 720 Mpps

ARP entries: 200000
IPv4 routes: 200000
IPv6 routes: 64000
IPv6 hosts: 130000
Multicast hosts: 8000
Links per group: 32
Link aggregation groups: 128
Layer 2 VLANs: 4000
MSTP instances: 32
ACL entries (ingress): 6000
ACL entries (egress): 1000

272000 entries

OSPF, BGP-4, OSPFv2, policy-based routing (PBR)

SNMP 1, SNMP 2

MD5

RADIUS, TACACS

Flow control, ARP support, port mirroring, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, LACP support, LLDP support, GVRP, PFC, ICMP, DNS client

IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj

4 GB

28 x 10Gbit LAN RJ-45
2 x 100Gbit LAN QSFP28
1 x serial (RS-232) RJ-45 management
1 x 10/100/1000 Base-T RJ-45 management

External power adapter - hot-plug

2

Yes

AC 120/230 V (50/60 Hz)

300 Watt

EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, EN 55032:2015+A1:2007, FCC CFR47 Part 15 B 2009 Class A, EN 55024:1998+A1:2001+A2:2003

43.1 cm

45.7 cm

4.4 cm

9.38 kg

5 °C

40 °C

5 - 85% (non-condensing)

-40 °C

65 °C

5 - 95% (non-condensing)
