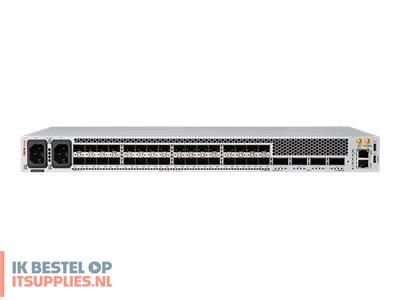

Ciena 5164 - Router 100GbE, 25GbE, 200GbE

Productcode: 170-5164-903 | EAN/UPC: -

€ 4.811,56 excl.btw

Ciena 5164 - Router 100GbE, 25GbE, 200GbE - rack-mountable

Temperature-hardened with for temperature-challenged or space-constrained locations
L1/L2/L3 low latency switching
Service isolation using FlexEthernet (FlexE)
Carrier Ethernet, IP routing, SR-MPLS, and SRv6 ready
Hardware-assisted routing and switching OAM scaled to deliver 25GbE services with guaranteed SLA differentiation
Secure Zero-Touch Provisioning (SZTP) for rapid, secure, and error-free turn-up of services
Advanced synchronization, including built-in GNSS receiver
Built-in RFC 2544 and ITU-T Y.1564 SAT with 100 Gb/s traffic generation and analysis
SDN-ready next generation management including support for protocols such as NETCONF/YANG and gNMI/gRPC
Ciena's MCP multi-layer support for end-to-end network management control and planning

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Ciena 5164 - Router 100GbE, 25GbE, 200GbE

€ 5821,99 incl. 21% btw € 4811,56excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Ciena 5164 - Router 100GbE, 25GbE, 200GbE - rack-mountable

Product features

5G NR RAN
5G brings the need to deliver higher capacity over the mobile network, driving the change in mix of wireline technology, performance, and services required in the access network from 1GbE to 10GbE, and increasingly from 10GbE to 25GbE - all requiring aggregation up to 100GbE or 200GbE. Additionally, the need to reduce latency for applications like Augmented Reality (AR), Virtual Reality (VR), mobile gaming, and the growing IoT space will require Ultra-Reliable Low-Latency Communications (URLLC) and network slicing capabilities.
Dense, compact form-factor platform
Efficient use of real estate assets is a growing concern for MNOs, who either host their own network equipment or lease power, space, and connectivity from wholesale providers. As services multiply, MNOs must choose between stacking 10G xHaul-capable equipment and 5G NR RAN equipment, which will incur additional collocation costs. The 5164's sleek, shallow depth and front access enable and facilitate cabinet and controlled environmental vault deployment. Extended temperature range support allows for installations in uncontrolled environments for outdoor aggregation of 1/10/25GbE, enabling high capacity at the outdoor edge for both 4G and 5G connectivity.
Fine-grained SLA monitoring and enforcement
The 5164 includes performance benchmark testing based on ITU-T Y.1564 and RFC 2544, enabling end-to-end 1/10/25G line-rate traffic measurements across virtual circuits. This approach improves end-customer satisfaction by enabling operations personnel to proactively respond to network events via increased performance visibility for differentiated Service Level Agreement (SLA) reporting.
Programmable midhaul gateway
FlexE can mitigate latency impacts in the midhaul when utilizing from a midhaul gateway or transparently transporting traffic from a fronthaul gateway. Flex Ethernet (FlexE), standardized in the OIF, supports channelization as one of its use cases. The 5164 optimizes bandwidth and provides deterministic low-latency transport with FlexE. By mapping traffic into one of these channels with dedicated TDM-like scheduling, its latency and jitter will not be impacted by traffic in the other channel and bounded low-latency delivery can be ensured.
Advanced multi-layer protocol support
The 5164 supports a flexible selection of service offerings, including L2 and L3 services over a carrier-class, connection-oriented infrastructure using MPLS and Segment Routing. The 5164 operates as a full-featured IP router supporting NETCONF/YANG to easily integrate into an open SDN environment with full visibility via streaming telemetry, and automated provisioning using open APIs.
Differentiation through accelerated service velocity
Service velocity has become a critical competitive advantage for network operators, mobile, and wholesalers. In many cases, service velocity is the determining factor in winning service opportunities. The 5164 implements Ciena's unique SZTP capabilities, allowing operators to deploy packet-based services rapidly and securely in a fully automated manner. By reducing or eliminating costly and time-consuming manual intervention, provisioning errors are eliminated via SZTP. Most importantly, SZTP improves service deployment velocity and significant competitive advantage.

Specificaties

General

Device Type

Router

Enclosure Type

Rack-mountable - 1U

Connectivity Technology

Wired

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 200 Gigabit Ethernet

Jumbo Frame Support

9216 bytes

Network / Transport Protocol

TCP/IP, NTP, DHCP, DHCPv6, SFTP, IPv4, IPv6

Routing Protocol

OSPF, BGP-4, IS-IS, BGP, OSPFv2, Multiprotocol BGP, MPLS

Remote Management Protocol

SNMP 2, CLI, NETCONF, SFTP, OAM, NTP, IPv4, IPv6, YANG

Encryption Algorithm

TLS

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC

Features

Layer 3 switching, Layer 2 switching, IP-routing, MPLS support, VLAN support, Syslog support, DoS attack prevention, ACL support, QoS, LACP support, LLDP support, DHCP relay, LACP, DHCP client, CoS, VPLS, LDP, EVPN, SDN, AAA, NTP client, CFM, H-VPLS, L2VPN support, EVC, Q-in-Q tunnelling, LAG, static LSPs, TI-LFA, built-in GNSS receiver, EVPN VPWS, DHCPv6 client, SZTP, Stratum 3E oscillator

Compliant Standards

IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX, ITU-T Y.1731, IEEE 1588v2, ITU-T G.8264, IEEE 802.3by, ITU-T G.8262, ITU-T G.8275.1, ITU-T Y.1564, IEEE 802.3bs, ITU-T G.703, ITU-T G.8273.2, ITU-T G.8275.2, IEEE 802.3-2018, NEBS level 3, ICES-003 Class A, EN 60950-1, IEC 60825-1, FCC Part 15 B Class A, IEC 60825-2, VCCI Class A, WEEE 2012/19/EU, ANSI/UL 60950-1 Second Edition, RoHS 2 (2011/65/EU), ETSI EN 301 489-1, EN 55032, CISPR 32 Class A, EN 301 489-19, UL 62368-1, EN 55035, ITU-T G.703, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ITU-T G.8264, ITU-T G.8275.1, ITU-T G.8275.2, EN 303 413, ETSI EN 300 386, GR-1089, Issue 6, ETSI EN 300 132-2, ETSI EN 300 132-3, ITU-T G.8262, CAN/CSA 62368-1, CAN/CSA C22.2 No. 60950-1, GR-3108-CORE class 2, GR-63-CORE, Issue 5, ITU-T G.8273.2 Class C, EN 62368-1:2014/A11:2017, CISPR 24 Class A, CISPR 35 Class A, ETSI EN 300 119-3, ETSI EN 300 019-3-3

Expansion / Connectivity

Interfaces

32 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - SFP28
4 x 100Gb Ethernet / 200Gb Ethernet - QSFP28/QSFP56
USB: 1 x 24 pin USB-C
Console: 1 x 24 pin USB-C
Synchronization: 1 x RJ-45
Antenna: 1 x
Management: 1 x RJ-45

Power

Power Device

Internal power supply

Power Redundancy

Yes

Installed Qty

2 (installed) / 2 (max)

Voltage Required

AC 100-240 V

Dimensions & Weight

Width

44.1 cm

Depth

25.3 cm

Height

4.4 cm

Weight

5.2 kg

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

65 °C

Humidity Range Operating

5 - 90% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
