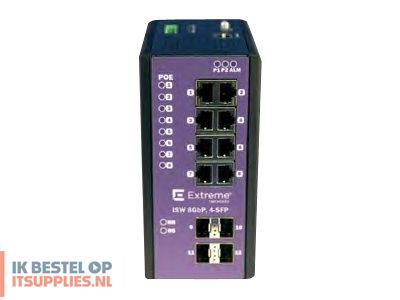

Extreme Networks ExtremeSwitching Industrial Ethernet Switches ISW 8GBP,4-SFP

Switch - 8 ports - Managed

DIN rail mountable, wall-mountable

Gigabit Ethernet

8 x 10/100/1000 (PoE+) + 4 x SFP

PoE+

240 W

Aggregate bandwidth: 24 Gbps

VLANs supported: 1024
Queues per port: 8

8K entries

9KB

IGMPv2, IGMP, IGMPv3

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI

RADIUS, TACACS+

Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, tagged VLAN, 4MB packet buffer, MAC and IP-based ACLs support, Storm Control, Back Pressure Support, Management Information Base (MIB) II

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at

128 MB

16 MB

Port status, power, status

8 x 1000Base-T RJ-45
4 x SFP

Internal power supply

Yes

DC 50 - 58 V

15 Watt

>25 years

CISPR 22 Class A, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, EN 61000-6-4, WEEE, FCC Part 15 A, EN 61000-4-9, IEC 60950-1 Second Edition, IP30, IEC 61000-4-9, EMC 2004/108/EC

7.7 cm

12.8 cm

15.4 cm

1.41 kg

-40 °C

75 °C

5 - 95% (non-condensing)

-40 °C

85 °C
