General
Device Type

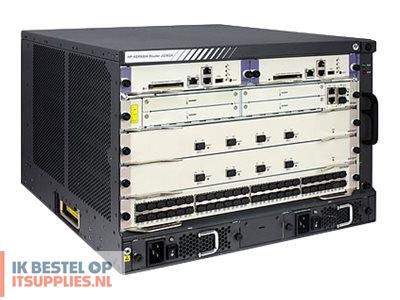

Modular expansion base
Enclosure Type
Rack-mountable - modular - 7U
Connectivity Technology
Wired
Performance
Throughput: up to 240 Mpps
Backplane speed: 1024 Gbps
Capacity
IPv4 routing table entries: 4000000
IPv6 routing table entries: 2000000
IPv4 forwarding table entries: 1000000
IPv6 forwarding table entries: 1000000
Network / Transport Protocol
TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Encryption Algorithm
MD5, SSL, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, WFQ, RSTP support, VRRP support, MSTP support, TFTP support, ACL support, QoS, CAR, MLD snooping, BFD, URPF, DVPN, NQA, MSDP, MBGP
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-2, VCCI V-3 Class A ITE, VCCI V-4, KN22, KN24, EN 301 489-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Processor
1 x PowerPC 1 GHz
Flash Memory
1 GB (installed) / 2 GB (max)
Expansion / Connectivity
Interfaces
Management: 1 x RJ-45
Management: 1 x RS-232C
Expansion Slots
2 (total) / 2 (free) x expansion slot
16 (total) / 16 (free) x Multifunction Interface Module (MIM)
2 (total) / 1 (free) x CompactFlash
Installed Modules Qty (Max)
0
Power
Power Device
Internal power supply (not installed) - hot-plug
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
851 Watt
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
