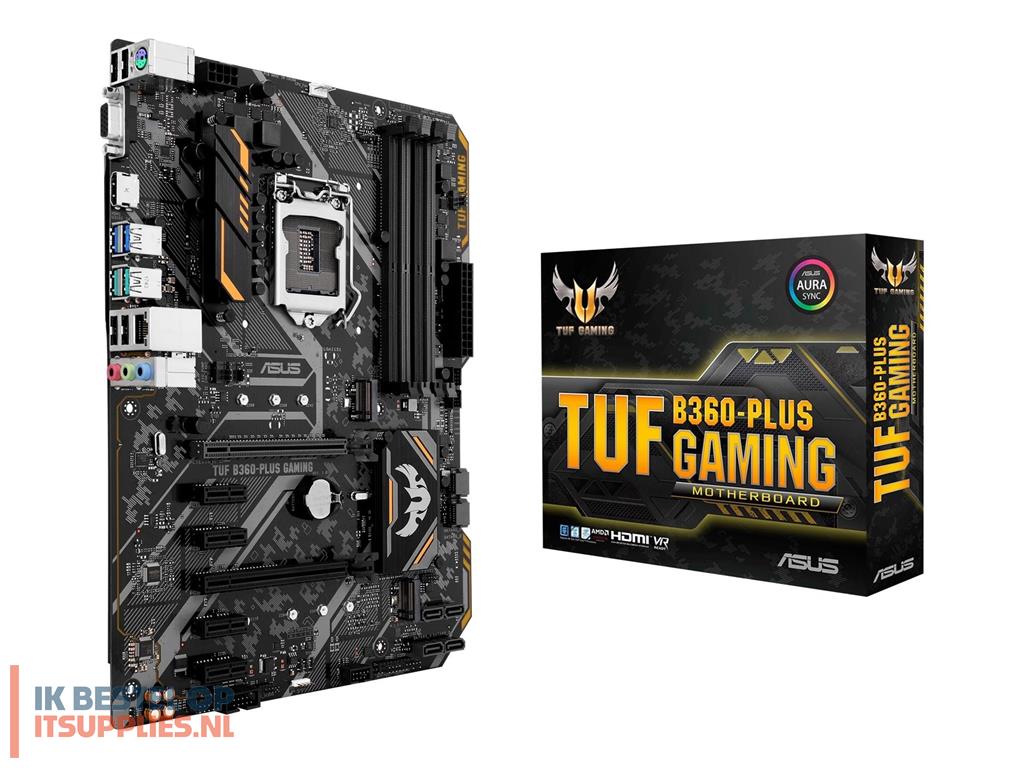

ASUS TUF B360-PLUS GAMING - Motherboard

Productcode: 90MB0X10-M0EAY0 | EAN/UPC: 4712900975321

€ 109,39 excl.btw

ASUS TUF B360-PLUS GAMING - Motherboard - ATX - LGA1151 Socket - B360 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

GPU temperature sensing & Fan Xpert 2+: ensures every fan achieves excellent balance of cooling performance and acoustics
TUF protection: SafeSlot Core, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
Military-grade TUF components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
Aura Sync RGB: synchronize LED lighting with a vast portfolio of compatible PC gear

Op voorraad: 0 stuk(s)

Levertijd:

Product:
ASUS TUF B360-PLUS GAMING - Motherboard

€ 132,36 incl. 21% btw € 109,39excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

ASUS TUF B360-PLUS GAMING - Motherboard - ATX - LGA1151 Socket - B360 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Product features

Easy PC DIY experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivaled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV.
Fan Xpert 2+
System temperatures are key to a stable gaming rig - especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 2+ software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
ASUS OptiMem
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and the T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
Edge zone
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
More throughput, less CPU usage
TUF B360-PRO Gaming (WI-FI) features the advanced Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Native 10Gbps USB 3.1 Gen 2 Type-A support
With dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps - or twice as fast as USB 3.1 Gen 1.
Speed up with onboard M.2
With x2 PCI Express 3.0 bandwidth, M.2 supports up to 16Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.

Specificaties

General

Product Type

Motherboard - ATX

Chipset Type

Intel B360

Processor Socket

LGA1151 Socket

Max Processors Qty

Compatible Processors

Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Supported RAM

Max Size

64 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2666 MHz

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size

1 GB

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC887

Compliant Standards

High Definition Audio

LAN

Network Controller

Intel I219V

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 4 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x2 mode)

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x USB 3.1 Gen 2 ¦ 2 x USB 3.1 Gen 1

Internal Interfaces

2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

WfM 2.0 support, Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Jack retasking, ASUS Q-Design, ESD Guards, TUF Engine!, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, TUF Components, AURA RGB Lighting Control, Intel Optane Memory Ready, ASUS TUF Protection

Miscellaneous

Included Accessories

I/O back plate, 1 x M.2 screw, TUF stickers, CPU installation tool

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), ASUS EZ Flash 3

Compliant Standards

Plug and Play

Width

30.5 cm

Depth

23.6 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
