General
Product Type

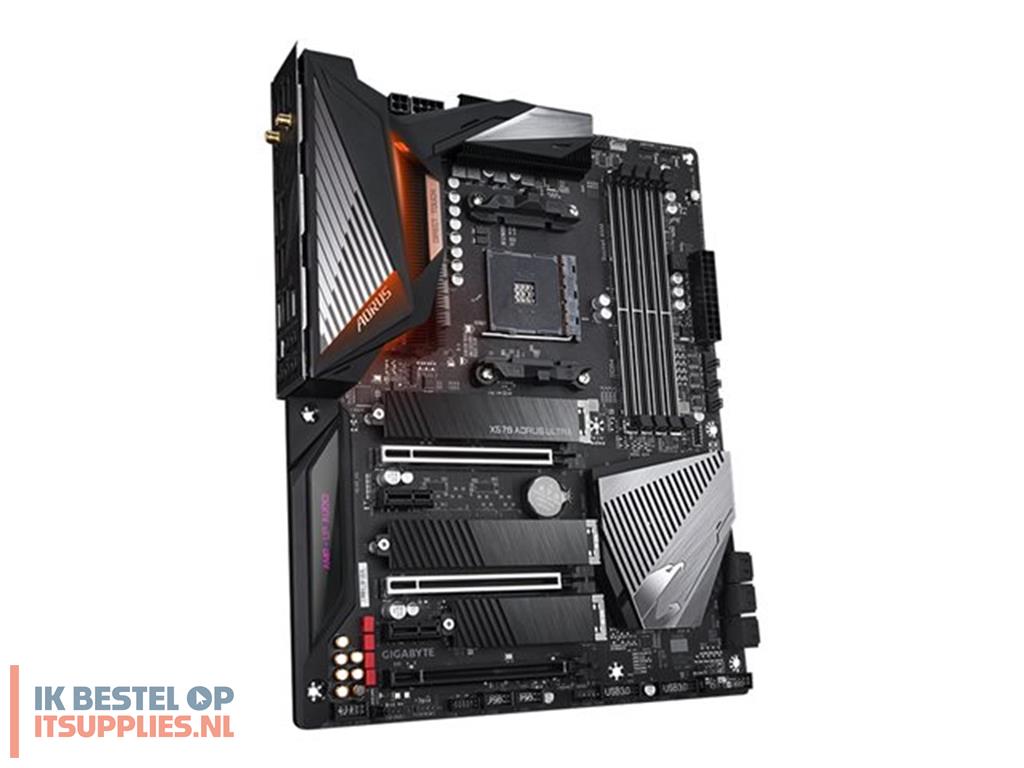

Motherboard - ATX
Processor Socket
Socket AM4
Compatible Processors
Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
Max Allocated RAM Size
16 GB
Audio
Audio Codec
Realtek ALC1220-VB
Compliant Standards
High Definition Audio
LAN
Network Interfaces
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics))
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 4.0 x1
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -connectors: 3 x M.2
Interfaces
1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x TOSLINK
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x USB-C Gen2
4 x USB 2.0
1 x HDMI
Internal Interfaces
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C Gen2
1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate
Hardware Features
12+2 Phase Power Design, AutoGreen, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Q-Flash Plus, GIGABYTE Double Locking Bracket, Ultra Durable Memory Armor, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Fins-Array Heatsink & Direct Touch Heatpipe, AMD StoreMI technology, Solid Pin Power Connectors, RGB FUSION 2.0
Miscellaneous
Software Included
Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence), GIGABYTE Smart Survey
