General
Product Type

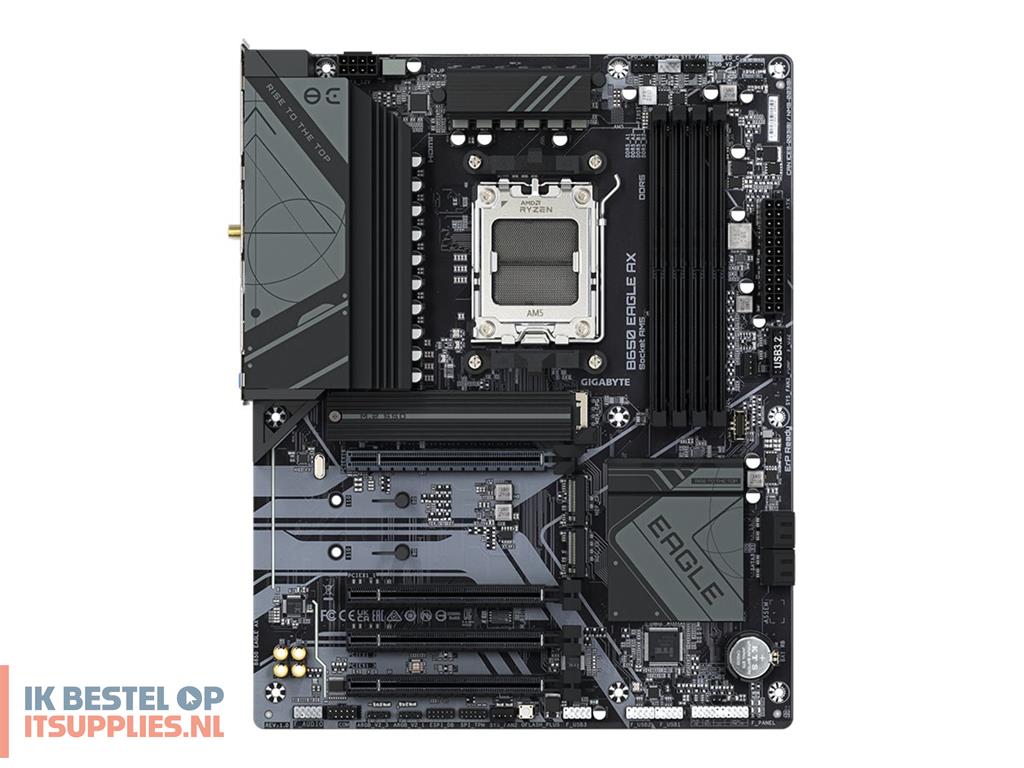

Motherboard - ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000/8000 Series)
Supported RAM
Bus Clock
4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Audio
Compliant Standards
High Definition Audio
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
3 x PCIe 3.0 x16 (x1 mode)
3 x M.2 socket (2280/25110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI
1 x DisplayPort
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x USB-C 3.2 Gen 1
2 x USB 3.2 Gen 2
6 x USB 2.0
1 x PS/2 keyboard / mouse
1 x LAN (Gigabit Ethernet)
2 x aerial
Internal Interfaces
6 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 1 - header
1 x audio - header
1 x SPI - header
1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection
Hardware Features
Q-Flash Plus, Q-Flash, 12+2+2 Phase Power Design, 6 Layer PCB, M.2 Thermal Guard, pre-mounted I/O shield, RGB FUSION, GIGABYTE Smart Fan 6, PCIe EZ Latch, Audio Noise Guard, High-end Audio Capacitors, Ultra Durable, MOSFET Heatsink
Miscellaneous
Included Accessories
1 x M.2 screw, 2 aerials
Cables Included
2 x Serial ATA cable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version)
Compliant Standards
DisplayPort 1.4, HDCP 2.3
