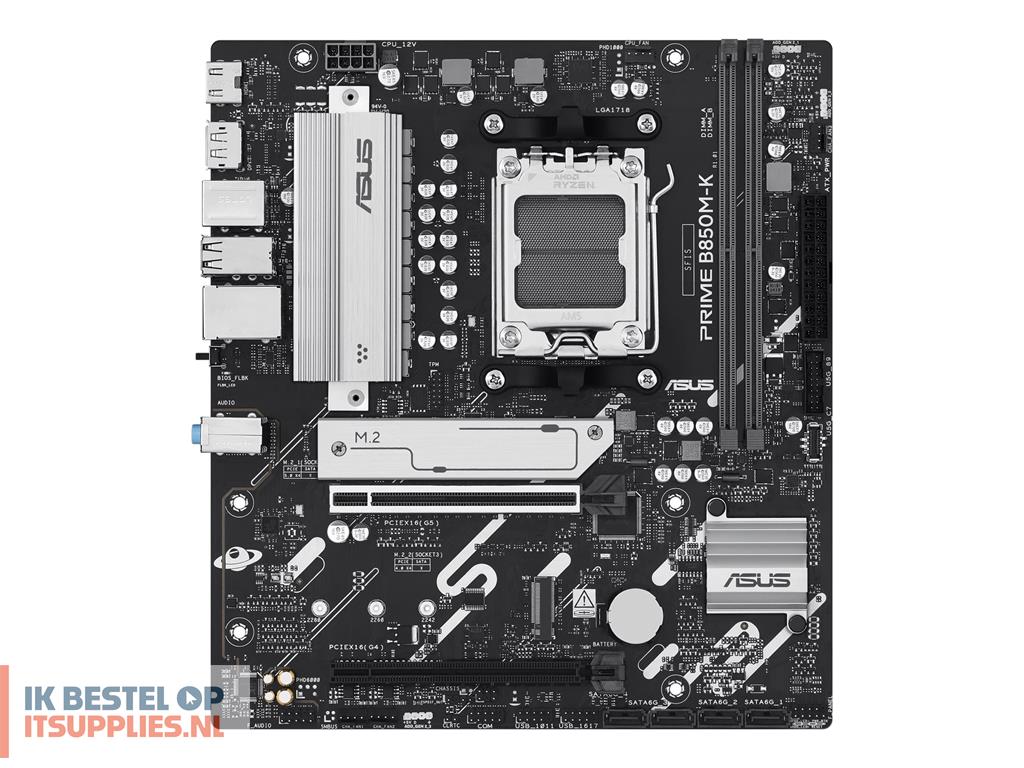

ASUS PRIME B850M-K - Motherboard

Productcode: 90MB1LV0-M0EAY0 | EAN/UPC: 4711636005517

€ 128,74 excl.btw

ASUS PRIME B850M-K - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Supports Ryzen 7000/8000/9000 Series processors
Dual-channel memory architecture for enhanced performance
Multiple connectivity options including USB 3.2 and M.2 slots
Features ASUS EZ Flash BIOS for easy updates
Robust safety mechanisms such as overvoltage protection

Op voorraad: 10 stuk(s)

Levertijd:

Product:
ASUS PRIME B850M-K - Motherboard

€ 155,78 incl. 21% btw € 128,74excl. 21% btw

Winkelwagen Offerte

Omschrijving

ASUS PRIME B850M-K - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Product features

Efficient memory support
The ASUS PRIME B850M-K supports dual-channel memory architecture, allowing for efficient data transfer and improved performance. It accommodates DDR5 SDRAM with speeds of up to 4200 MHz, offering the necessary bandwidth for demanding applications.
Extensive connectivity options
This motherboard is equipped with a variety of ports including USB 3.2 Gen 2 and multiple M.2 slots, providing flexible connectivity choices for storage devices and peripherals. With four SATA-600 ports, it facilitates multiple drive configurations.
Advanced BIOS management
Featuring ASUS EZ Flash BIOS, users can update their firmware easily, ensuring a smooth experience as system requirements evolve. The AMI BIOS type streamlines customization and user accessibility.
Robust safety features
This motherboard incorporates overvoltage protection and ESD Guards, safeguarding critical components against electrical surges and damage. This ensures reliable performance and longevity of the system.
Versatile expansion capabilities
The PRIME B850M-K includes multiple expansion slots including PCIe 4.0 and PCIe 5.0 for graphics and additional cards. This versatility allows for future upgrades and expansion to meet evolving technology needs.

Specificaties

General

Product Type

Motherboard - micro ATX

Chipset Type

AMD B850

Processor Socket

Socket AM5

Max Processors Qty

Compatible Processors

(supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4000 MHz, 4100 Mhz (O.C), 4200 MHz (O.C.)

Supported RAM Integrity Check

On-die ECC, non-ECC, ECC

Features

Dual channel memory architecture, AMD EXPO technology

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU
2 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (2280 M.2 slot)
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x M.2
PCIe 5.0 -connectors: 1 x M.2

RAID Features

AMD RAID Xpert2 Technology

Interfaces

1 x HDMI
1 x DisplayPort
1 x PS/2 keyboard / mouse
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x SPDIF out - header
1 x SPI - header
1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS Enhanced Memory Profile (AEMP), 8+2+1 Phase Power Design, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, anti-pop function, BIOS FlashBack button, Water Pump Header, BMC remote management, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Code, M.2 Q-Latch, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, CPU Socket lever protector, BIOS FlashBack LED, CrashFree BIOS 3, DIY Friendly Design, Windows 11 compatible, Preboot eXecution Environment (PXE), ASUS Enhanced Memory Profile (AEMP) III

Miscellaneous

Included Accessories

IO shield, M.2 screw package, M.2 backplate rubber package

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS Fan Xpert 4, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR, ASUS Control Center Express

Width

24.4 cm

Depth

22.1 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
