General
Product Type

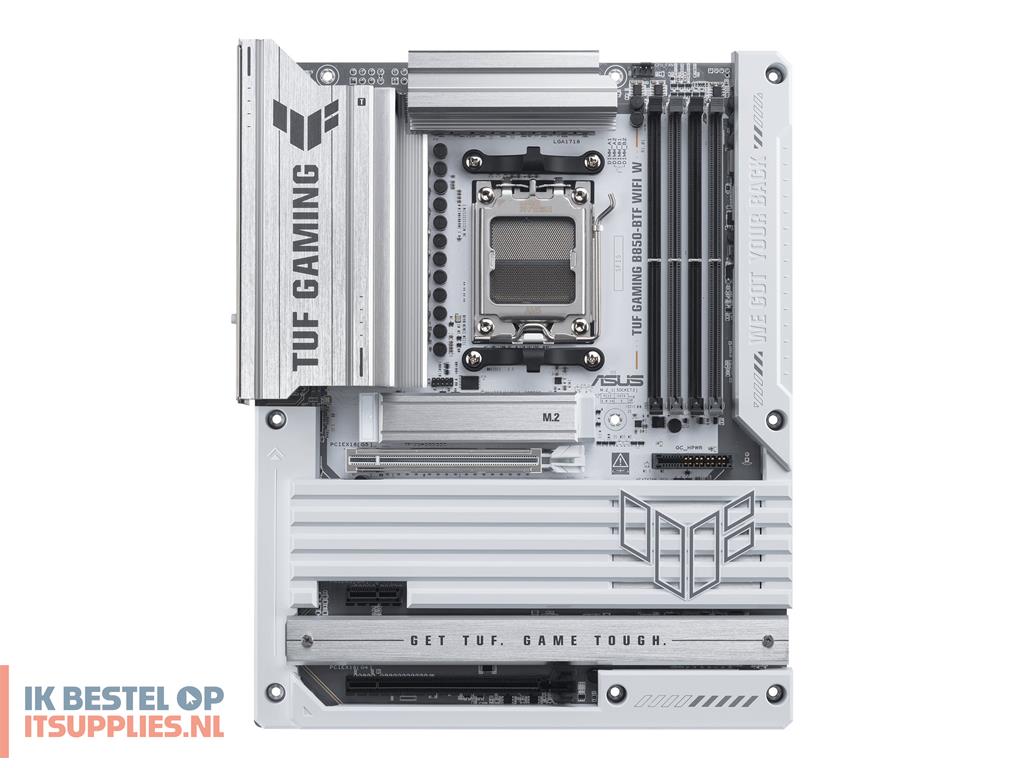

Motherboard - ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Supported RAM
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Audio
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
LAN
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
2 x M.2 socket (2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2
PCIe 4.0 -connectors: 2 x M.2
RAID Features
AMD RAID Xpert2 Technology
Interfaces
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen2x2
3 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
2 x aerial
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x microphone - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x serial - header
1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 14+2+1 Phase Power Design, DIY Friendly Design, 8 Layer PCB, TUF 5K black metallic capacitors, chipset heatsink, enlarged M.2 heatsink, Preboot eXecution Environment (PXE)
Miscellaneous
Included Accessories
2 x M.2 rubber package, TUF GAMING sticker, ASUS Wi-Fi Q-antenna
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)
