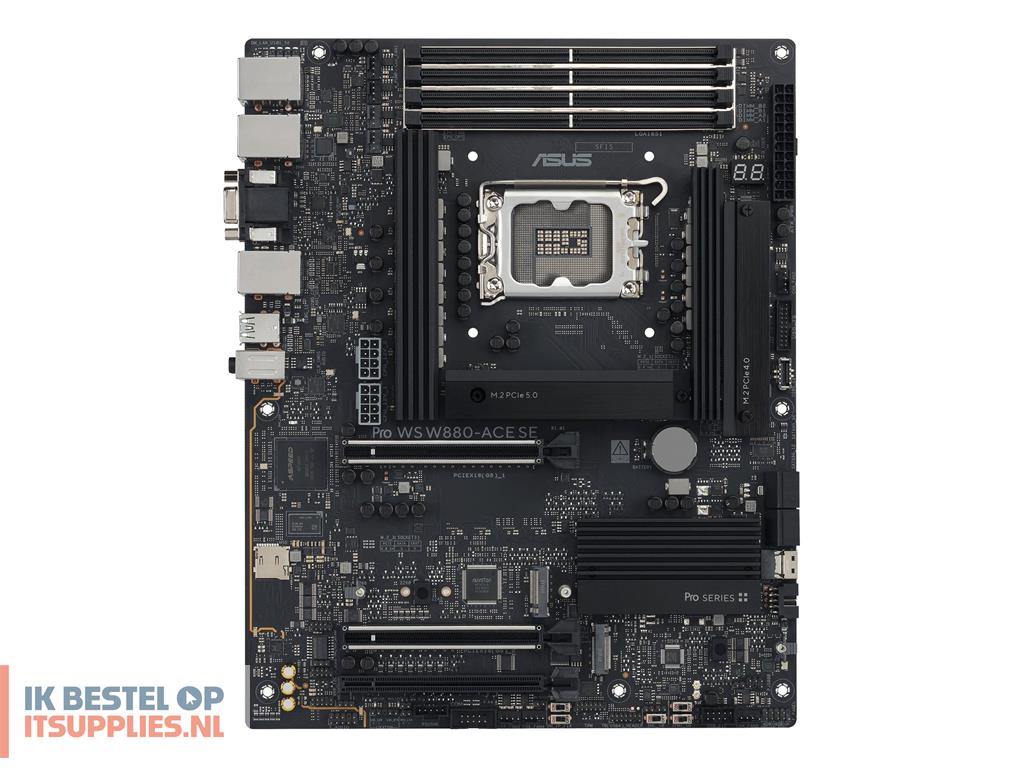

ASUS Pro WS W880-ACE SE - Motherboard

Productcode: 90MB1KV0-M0EAY0 | EAN/UPC: 4711387994221

€ 583,50 excl.btw

ASUS Pro WS W880-ACE SE - Motherboard - ATX - LGA1700 Socket - W880 Chipset - USB4, USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 2.5 Gigabit LAN, Gigabit LAN - onboard graphics - HD Audio (8-channel)

Supports 12th and 13th Generation Intel Core processors
Equipped with high definition audio via Realtek ALC1220P codec
Offers extensive storage options with 8 x SATA-600 (RAID) and M.2 support
Provides multiple connectivity options including USB 3.2 Gen 2 and Thunderbolt 4
Features ASUS Q-Design for easy component installation

Op voorraad: 9 stuk(s)

Levertijd:

Product:
ASUS Pro WS W880-ACE SE - Motherboard

€ 706,04 incl. 21% btw € 583,50excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Robust audio capabilities
The motherboard features high definition audio through the Realtek ALC1220P codec that supports 8-channel output, ideal for multimedia applications and enhanced audio experiences.
Flexible storage configurations
Offers 8 x SATA-600 (RAID) ports and multiple M.2 sockets, providing users with options for storage and fast data access through Intel Rapid Storage Technology.
Superior connectivity options
Includes a variety of ports such as USB 3.2 Gen 2, Thunderbolt 4, and 2.5 Gigabit Ethernet to ensure fast data transfer and high-speed Internet connectivity.
Advanced protection features
Equipped with ASUS 5X Protection III technology including overvoltage protection, LAN guard, and a stainless steel back I/O to enhance durability and reliability.
Optimized for DIY builds
The ASUS Pro WS W880-ACE SE includes features like Q-Design and Q-Latch for easy component installation, catering to DIY enthusiasts who prefer a hands-on approach.

Specificaties

General

Product Type

Motherboard - ATX

Chipset Type

Intel W880

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core)

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

4533 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC, ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Graphics Controller

ASPEED AST2600

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1220P

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2 x 2.5 Gigabit Ethernet, Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
4 x M.2 socket (2280 M.2 slot)

Storage Interfaces

SATA-600 -connectors: 8 x 7pin Serial ATA
PCIe 4.0 -connectors: 3 x M.2
PCIe 5.0 -connectors: 1 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI
1 x VGA
1 x Thunderbolt 4
1 x USB-C 3.2 Gen2x2
6 x USB 3.2 Gen 2
1 x LAN (Gigabit Ethernet)
2 x LAN (2.5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x Thunderbolt 4 - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, anti-pop function, BIOS FlashBack button, Water Pump Header, BMC remote management, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Code, M.2 Q-Latch, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, CPU Socket lever protector, BIOS FlashBack LED, CrashFree BIOS 3, DIY Friendly Design, Windows 11 compatible, Preboot eXecution Environment (PXE), 8+1+2+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III

Miscellaneous

Included Accessories

AMI licence sticker, IO shield, M.2 Q-Latch, 2 x M.2 SSD screw package, ACC Express Activation Key Card

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS Fan Xpert 4, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR, ASUS Control Center Express

Width

30.5 cm

Depth

24.4 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
