General
Product Type

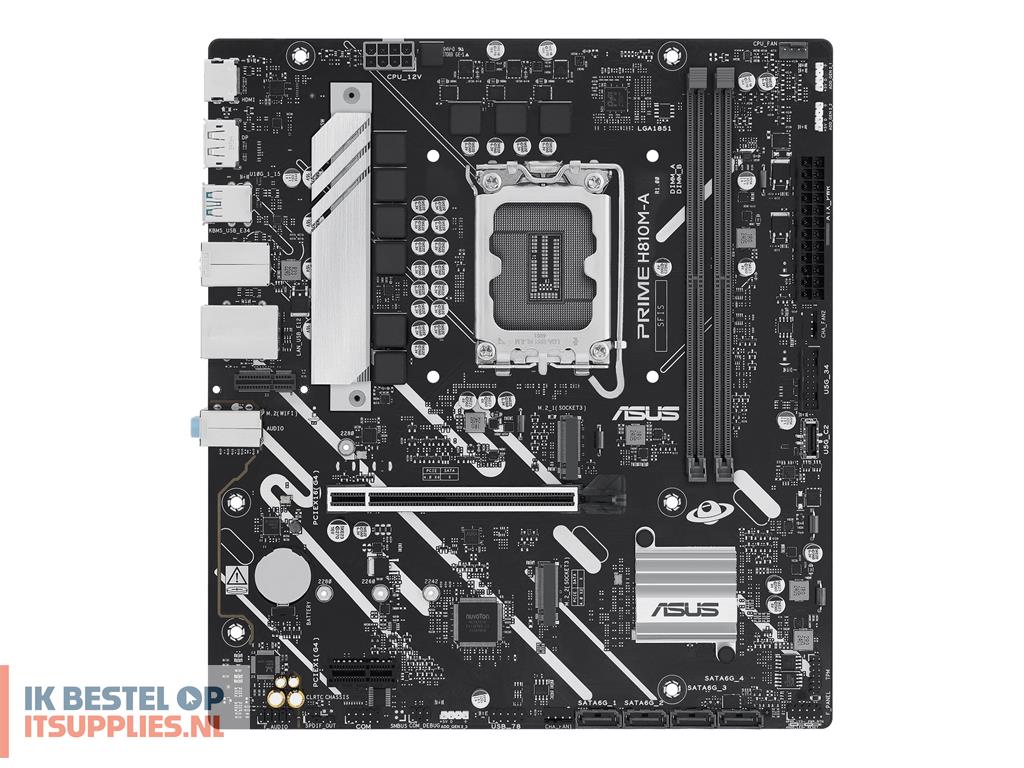

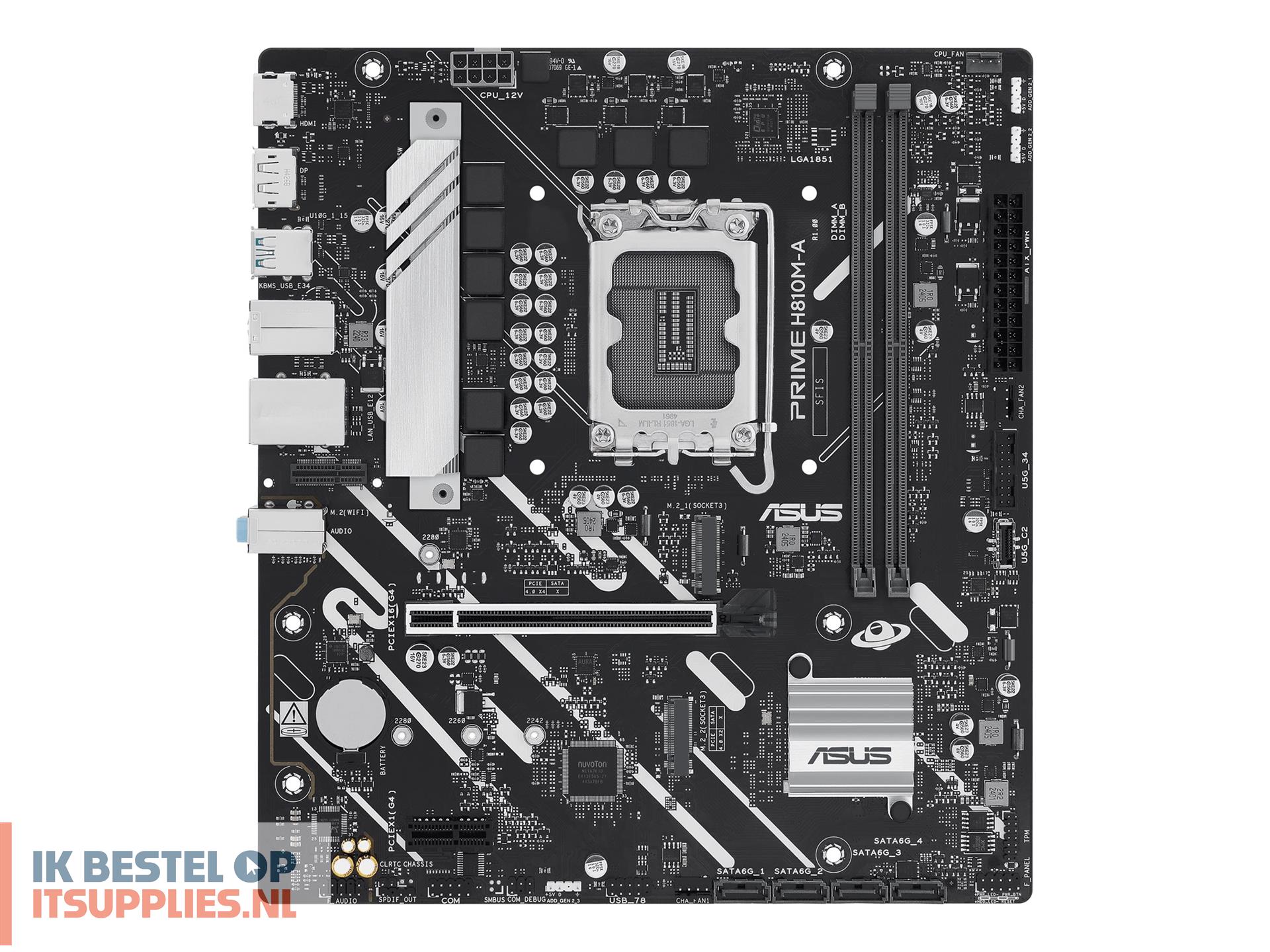

Motherboard - micro ATX
Processor Socket
LGA1851 Socket
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Supported RAM
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Compliant Standards
High Definition Audio
LAN
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
1 x M.2 socket (2280 M.2 slot)
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (Key E, for wireless module)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 2 x M.2
Interfaces
2 x USB 3.2 Gen 2
4 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x PS/2 keyboard / mouse
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x SPDIF out - header
1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
ASUS EFI BIOS, ASUS EZ Flash
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
ASUS Enhanced Memory Profile (AEMP) II, Intel Turbo Boost Max Technology 3.0, 6+1+1+1 Phase Power Design, Intel Turbo Boost Technology 2.0, VRM heatsink design, Q-Slot, Q-DIMM, Q-Dashboard, Q-LED Core, ASUS Q-Design, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS 5X Protection III, CrashFree BIOS 3
Miscellaneous
Included Accessories
IO shield, M.2 screw package
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial)
