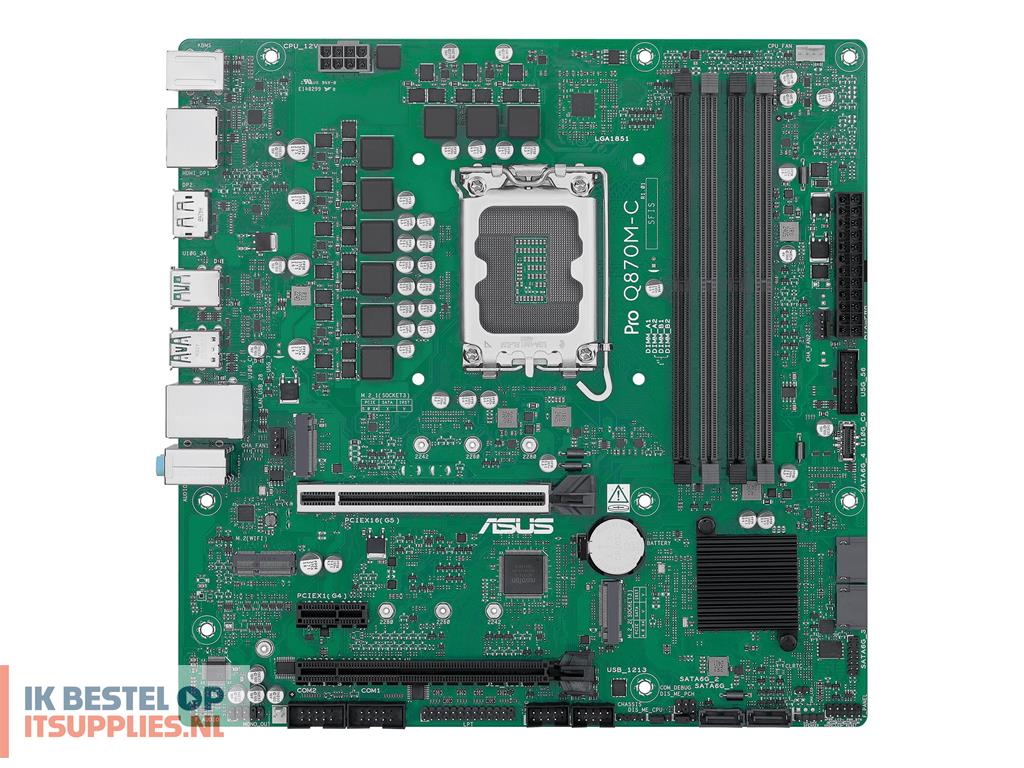

ASUS Pro Q870M-C-CSM - Motherboard

Productcode: 90MB1KEP-M0EAYC | EAN/UPC: 4711387880586

€ 210,45 excl.btw

ASUS Pro Q870M-C-CSM - Motherboard - micro ATX - LGA1851 Socket - Q870 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Compatibility with Intel Core Ultra processors for performance
Support for up to 64 GB of DDR5 memory with dual-channel architecture
Multiple USB 3.2 Gen 2 and USB-C ports for versatile connectivity
Integrated Intel Rapid Storage Technology for efficient storage management
High definition audio output for an immersive sound experience

Op voorraad: 0 stuk(s)

Levertijd:

Product:
ASUS Pro Q870M-C-CSM - Motherboard

€ 254,64 incl. 21% btw € 210,45excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

ASUS Pro Q870M-C-CSM - Motherboard - micro ATX - LGA1851 Socket - Q870 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Product features

Robust connectivity options
The motherboard features multiple ports including 8 x SATA-600 for storage, USB 3.2 Gen 2, USB-C 3.2 Gen 2, and HDMI, allowing for various connections to peripherals and devices.
Advanced audio capabilities
It supports high definition audio with 8-channel output, delivering sound quality for gaming and multimedia applications.
Enhanced memory support
With four DIMM slots for DDR5 RAM, it allows for a memory speed of up to 3200 MHz, facilitating quick data access for improved overall performance.
Robust BIOS features
Equipped with an AMI BIOS that includes ASUS EZ Flash and UEFI BIOS, the motherboard ensures ease of updates and user-friendly settings.
Reliable power management
It includes a 24-pin main power connector and an 8-pin ATX12V connector, ensuring stable power delivery to components even under demanding loads.

Specificaties

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel Q870

Processor Socket

LGA1851 Socket

Max Processors Qty

Compatible Processors

(supports Intel Core Ultra processors (Series 2))

Supported RAM

Max Size

256 GB

Technology

DDR5

Bus Clock

3200 MHz

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Controller

Intel I219LM

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (Key E, for wireless module)
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x M.2
PCIe 5.0 -connectors: 1 x M.2

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI
2 x DisplayPort
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LAN (Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
2 x USB 2.0

Internal Interfaces

1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x speaker - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

Q-LED Core, ASUS Self Recovering BIOS, ASUS Event Log, BIOSTAR EZ Mode, ASUS Commercial BIOS kit, anti-moisture coating, overcurrent protection, Intel Trusted Execution Technology (TXT), TPM IC Onboard, ASUS EZ DIY

Miscellaneous

Included Accessories

M.2 SSD screw package, M.2 Key E screw package, ACC Express Activation Key Card, IO shield

Cables Included

2 x Serial ATA cable

Width

24.4 cm

Depth

24.4 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
