General
Product Type

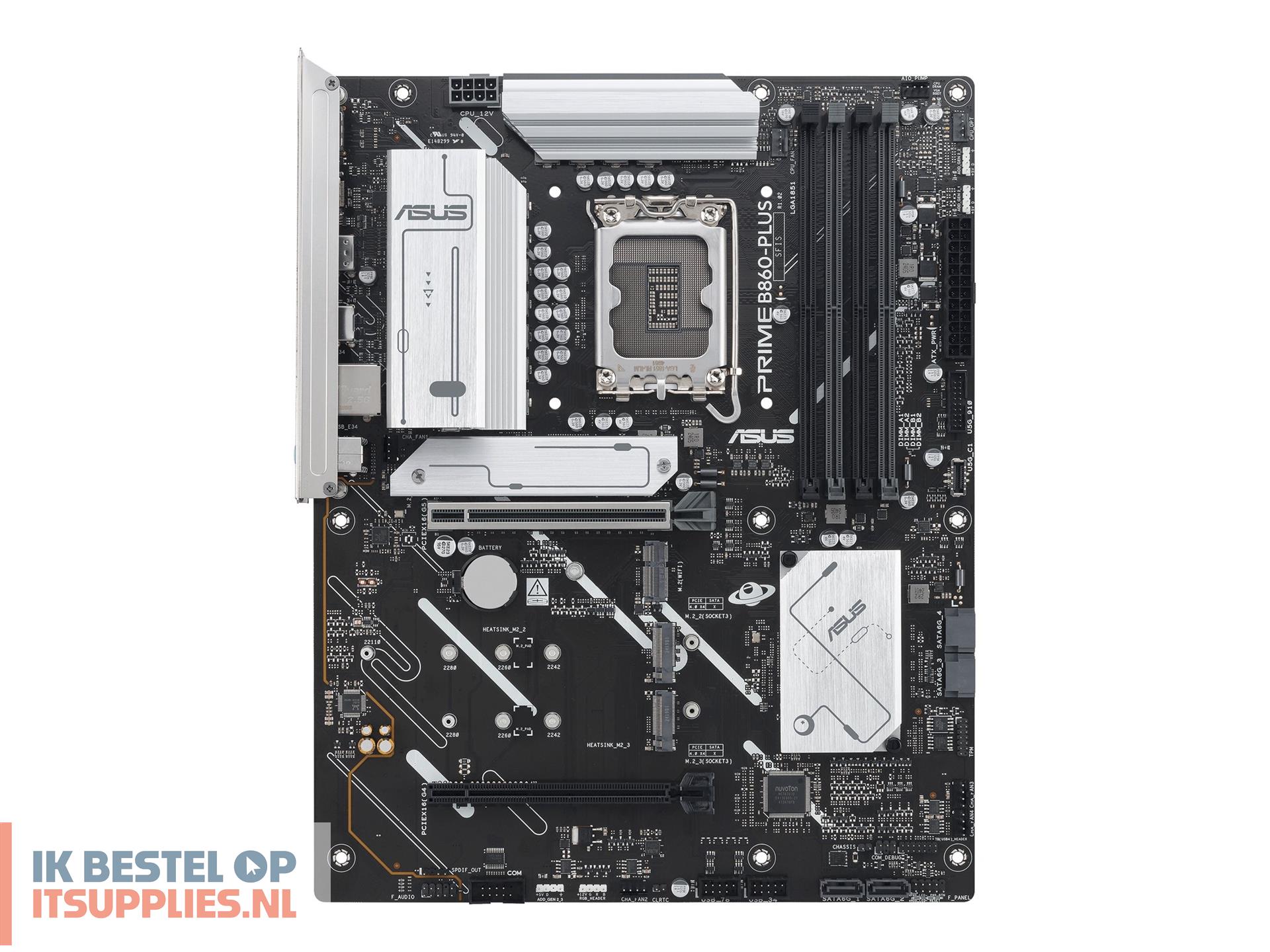

Motherboard - ATX
Processor Socket
LGA1851 Socket
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Supported RAM
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Audio
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
3 x PCIe 4.0 x16 (x1 mode)
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x M.2
PCIe 5.0 -connectors: 1 x M.2
Interfaces
1 x HDMI
1 x DisplayPort
1 x USB 3.2 Gen 1
4 x USB 2.0
2 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
2 x aerial
1 x LAN (2.5Gigabit Ethernet)
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x SPDIF out - header
1 x Thunderbolt 4 - header
1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, 8+1+1+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, ASUS Aura Sync, Dr.MOS MOSFET, 6 Layer PCB, ASUS Fan Xpert 2+
Miscellaneous
Included Accessories
1 x M.2 rubber package, M.2 screw package, ACC Express Activation Key Card
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS Fan Xpert 2+, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS CPU-Z, ASUS DriverHub, ASUS GlideX, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS Control Center Express
Pricing Type
ASUS Corporate Stable Model (CSM)
