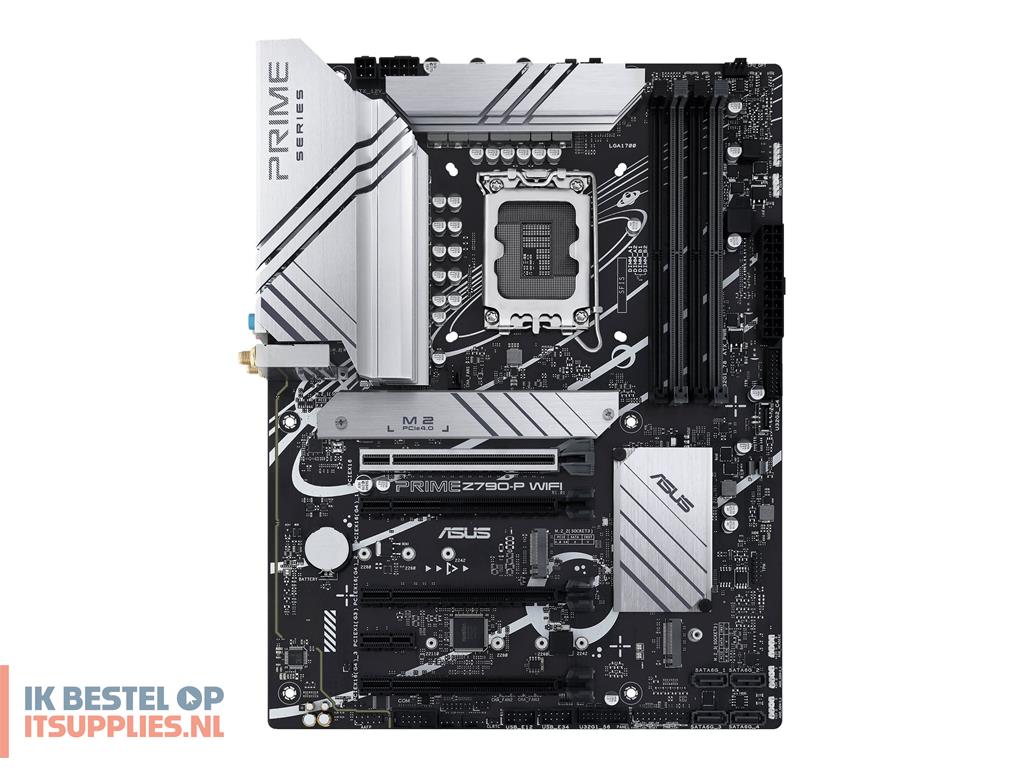

ASUS Prime Z790-P WIFI - Motherboard

Productcode: 90MB1CJ0-M1EAY0 | EAN/UPC: 0195553937221

€ 176,32 excl.btw

ASUS Prime Z790-P WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

14 + 1 teamed power stages (50 A) with enlarged heatsinks
Gen 5 slot for graphics card
AEMP II for ultimate DDR5 performance
USB 3.2 Gen 2 x 2 Type-C and Thunderbolt (USB4) support
2.5 Gb Ethernet
Wi-Fi 6
Intelligent Control
Al Cooling II

Op voorraad: 1 stuk(s)

Levertijd:

Product:
ASUS Prime Z790-P WIFI - Motherboard

€ 213,35 incl. 21% btw € 176,32excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z790-P Wi-Fi motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for new comers to PC DIY, as well as more comprehensive features for seasoned veterans.
Cooling
Prime Z790-P Wi-Fi motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
The Prime Z790-P Wi-Fi motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust power design
Stable power is essential to extract every last bit of performance out of Intel processors. The Prime Z790-P Wi-Fi is geared to cater to the demands of these high-core-count CPUs.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Specificaties

General

Product Type

Motherboard - ATX

Chipset Type

Intel Z790

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

192 GB

Technology

DDR5

Bus Clock

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC, on-die ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
M.2 socket (Key E)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

RAID Features

Intel Rapid Storage Technology

Interfaces

1 x HDMI
1 x DisplayPort
1 x aerial
1 x USB-C 3.2 Gen2x2
1 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2 keyboard / mouse
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack

Internal Interfaces

4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x serial - header
1 x SPI - header
1 x SPDIF out - header
1 x audio - header
1 x Thunderbolt - header

Features

BIOS Type

AMI

BIOS Features

ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

Sleep / Wake Up

Wake on PME, wake on LAN (WOL)

Hardware Features

ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, ASUS 5X Protection III, 14+1 Phase Power Design

Miscellaneous

Included Accessories

IO shield, 1 x M.2 rubber package, 2 x M.2 screw package, ASUS Wi-Fi moving aerial

Cables Included

2 x Serial ATA cable

Software Included

Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, MyAsus, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR

Width

30.5 cm

Depth

23.4 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
