General
Product Type

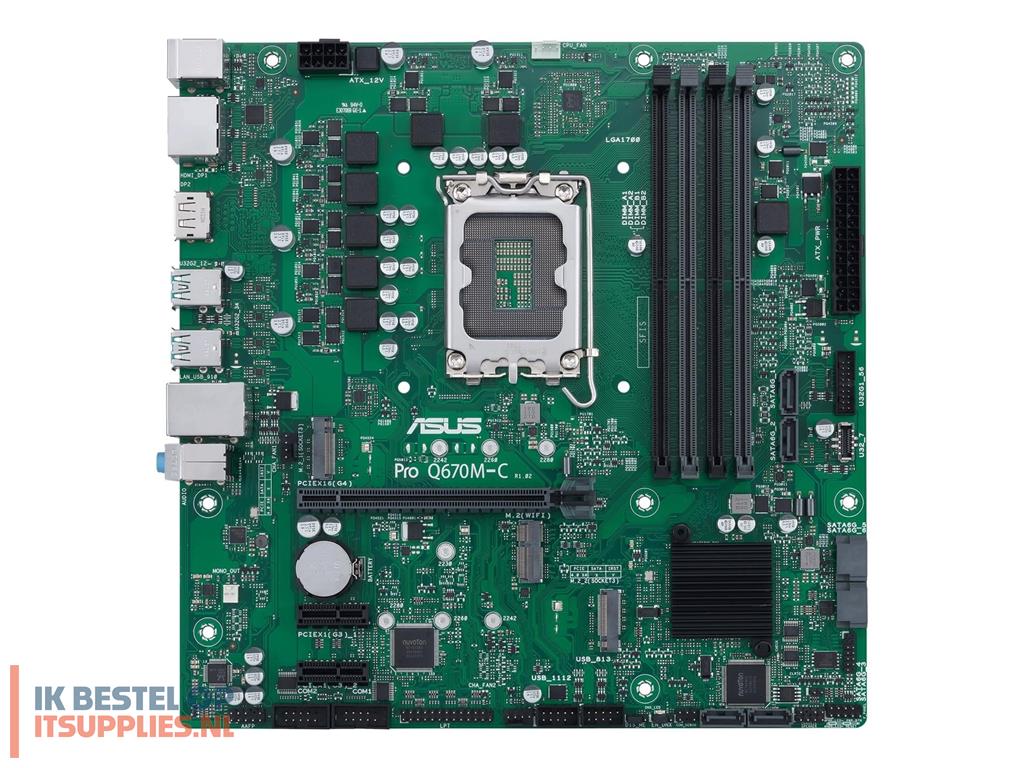

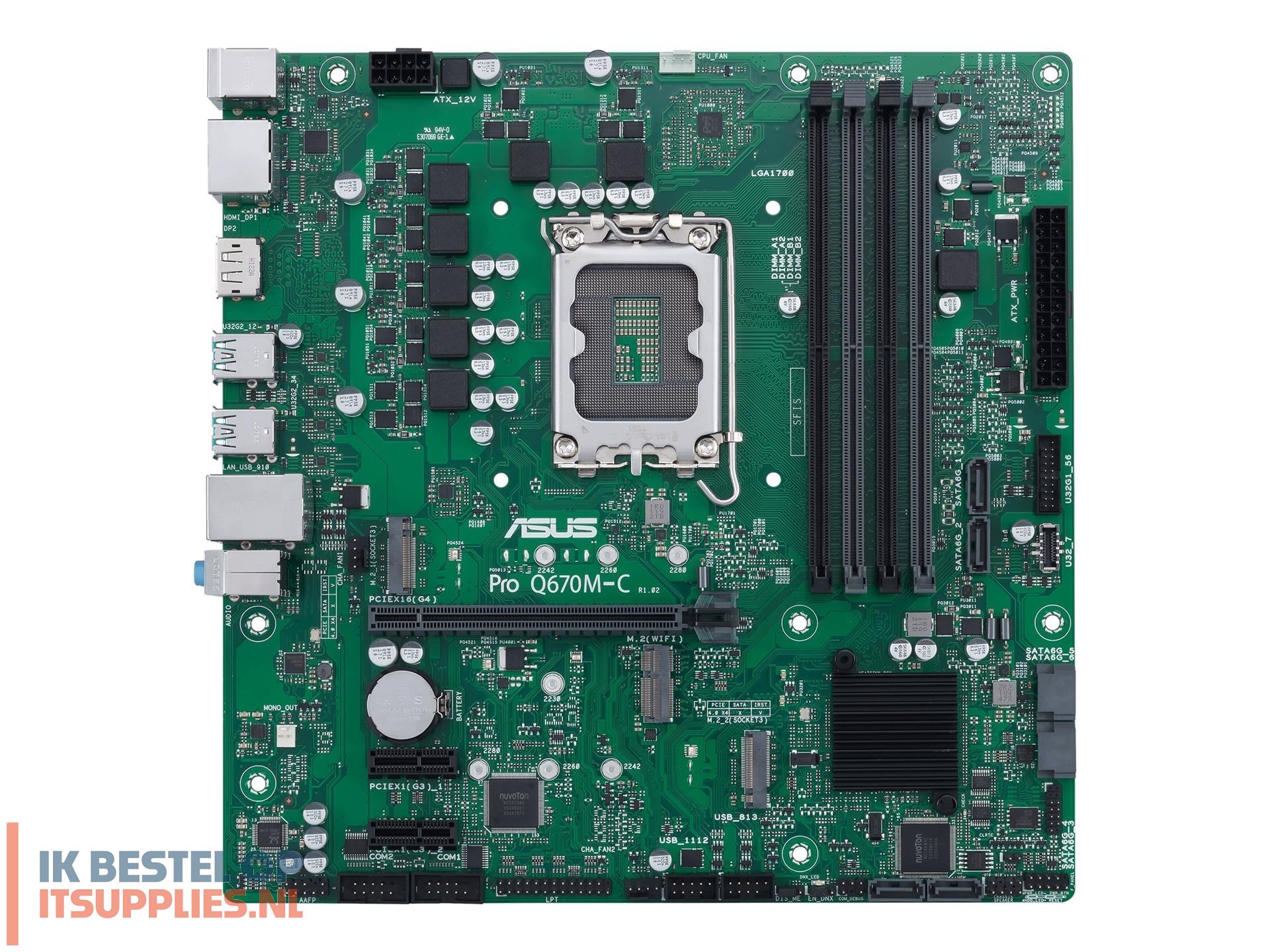

Motherboard - micro ATX
Processor Socket
LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Bus Clock
4800 MHz, 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Compliant Standards
High Definition Audio
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS OptiMem II, ASUS Control Center Express (ACC Express), Q-LED Core, ASUS Boot Defender
Miscellaneous
Included Accessories
IO shield, M.2 Key E screw package, M.2 SSD screw package
Cables Included
2 x Serial ATA cable
