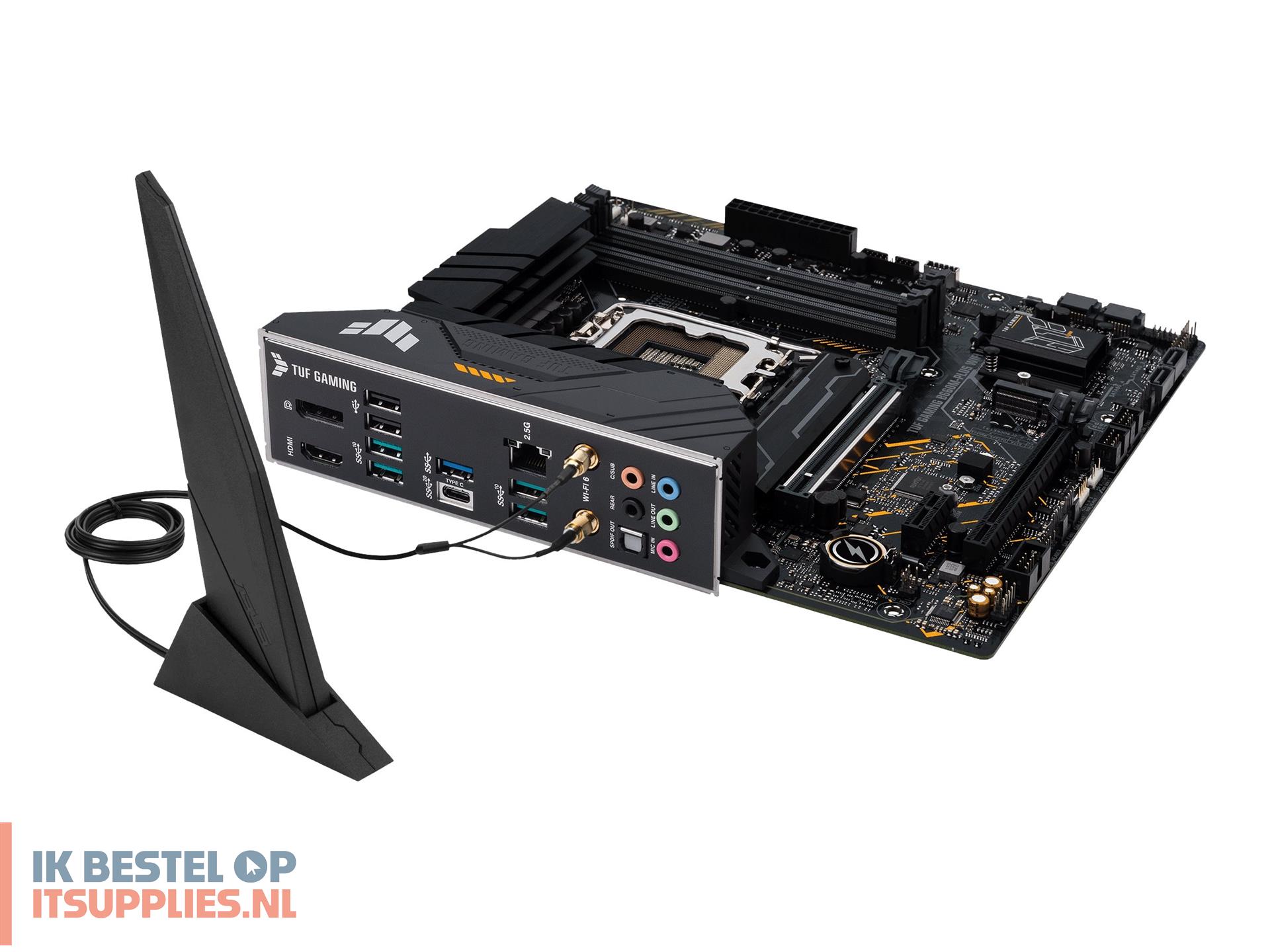

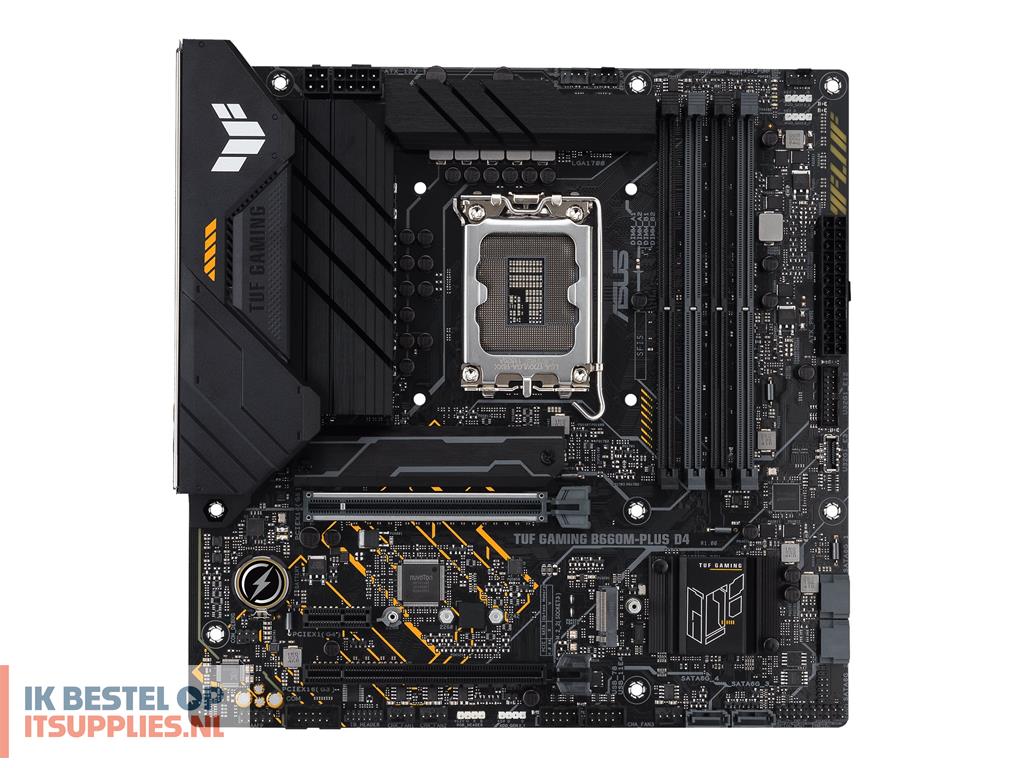

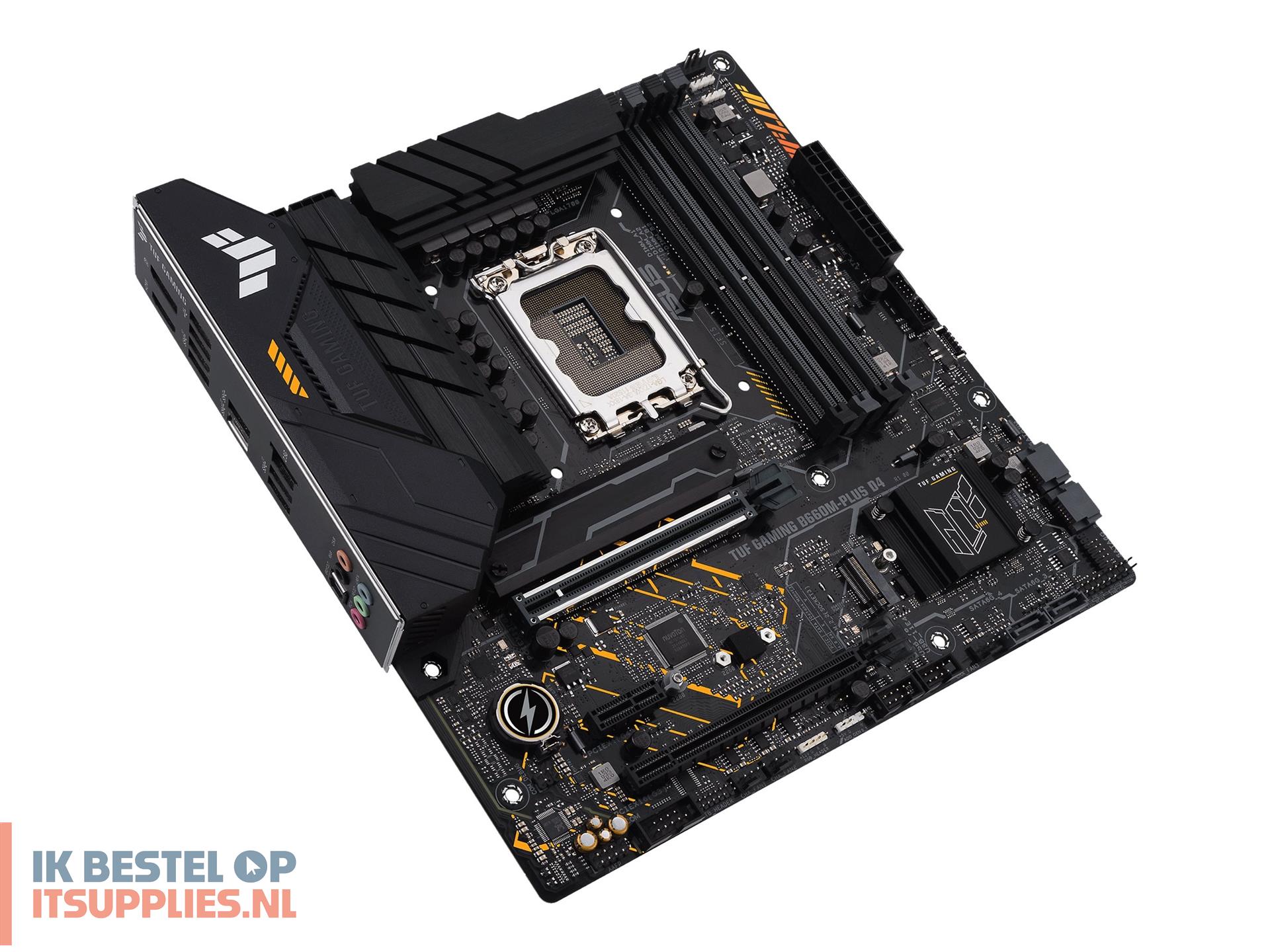

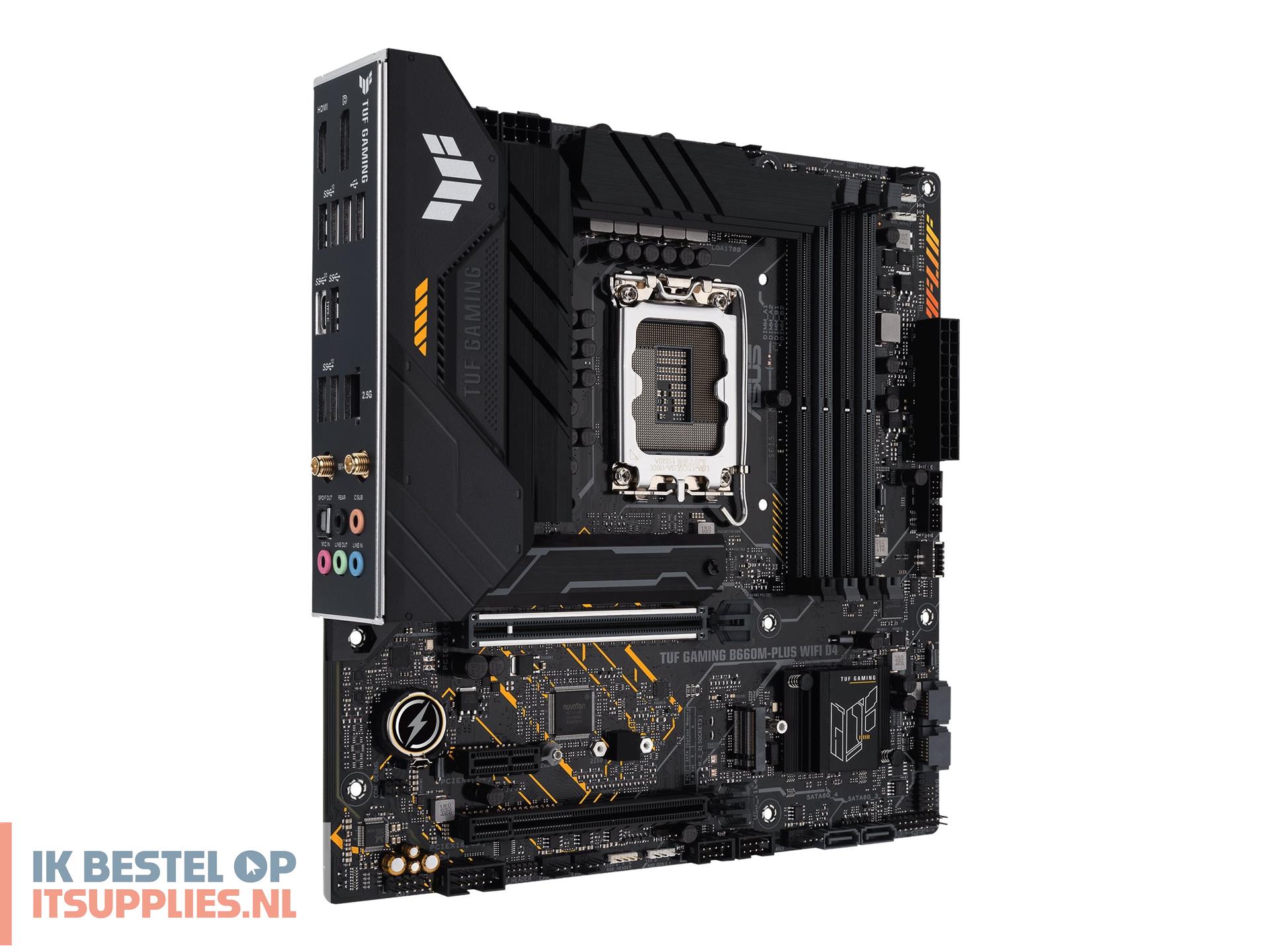

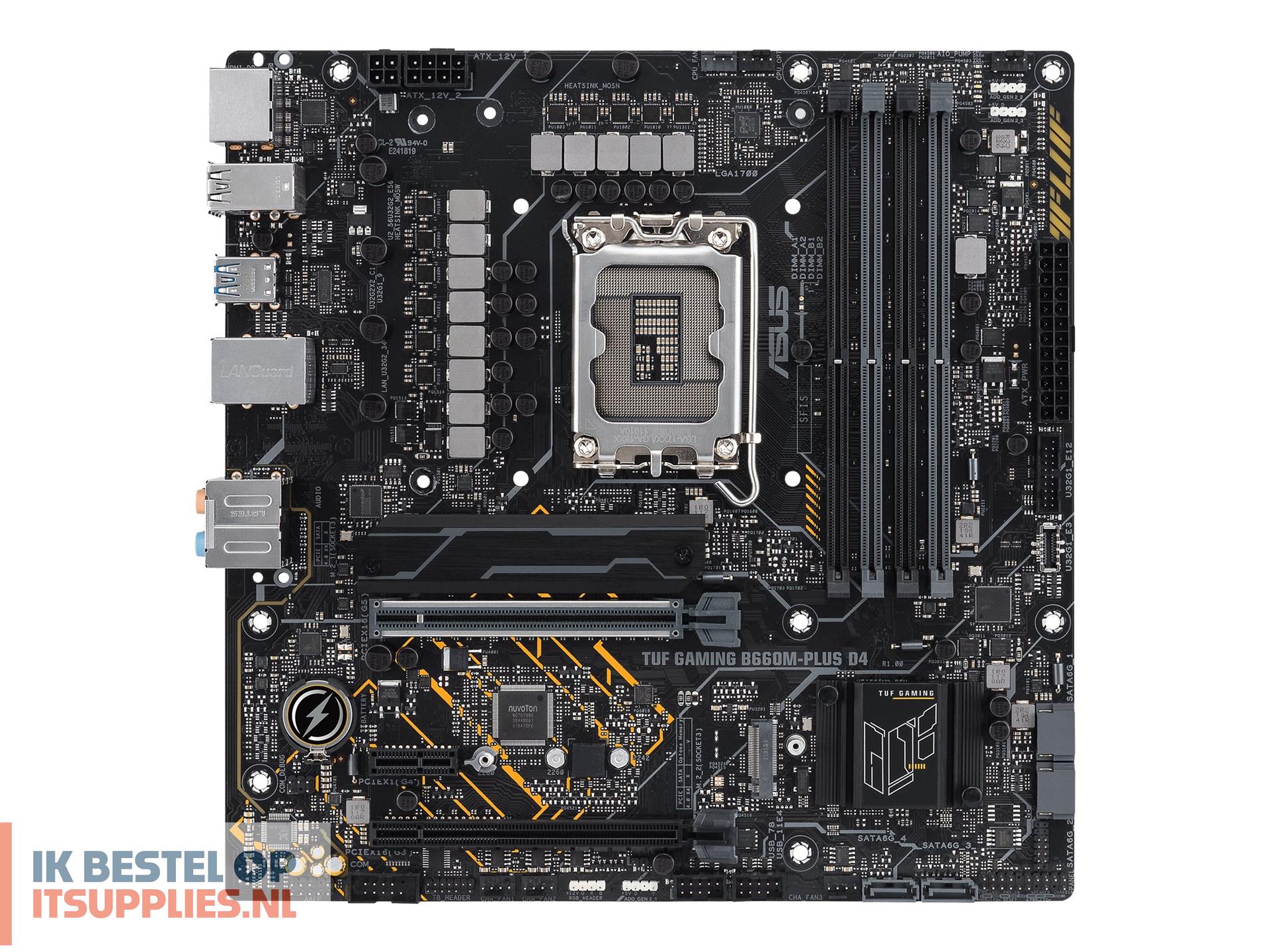

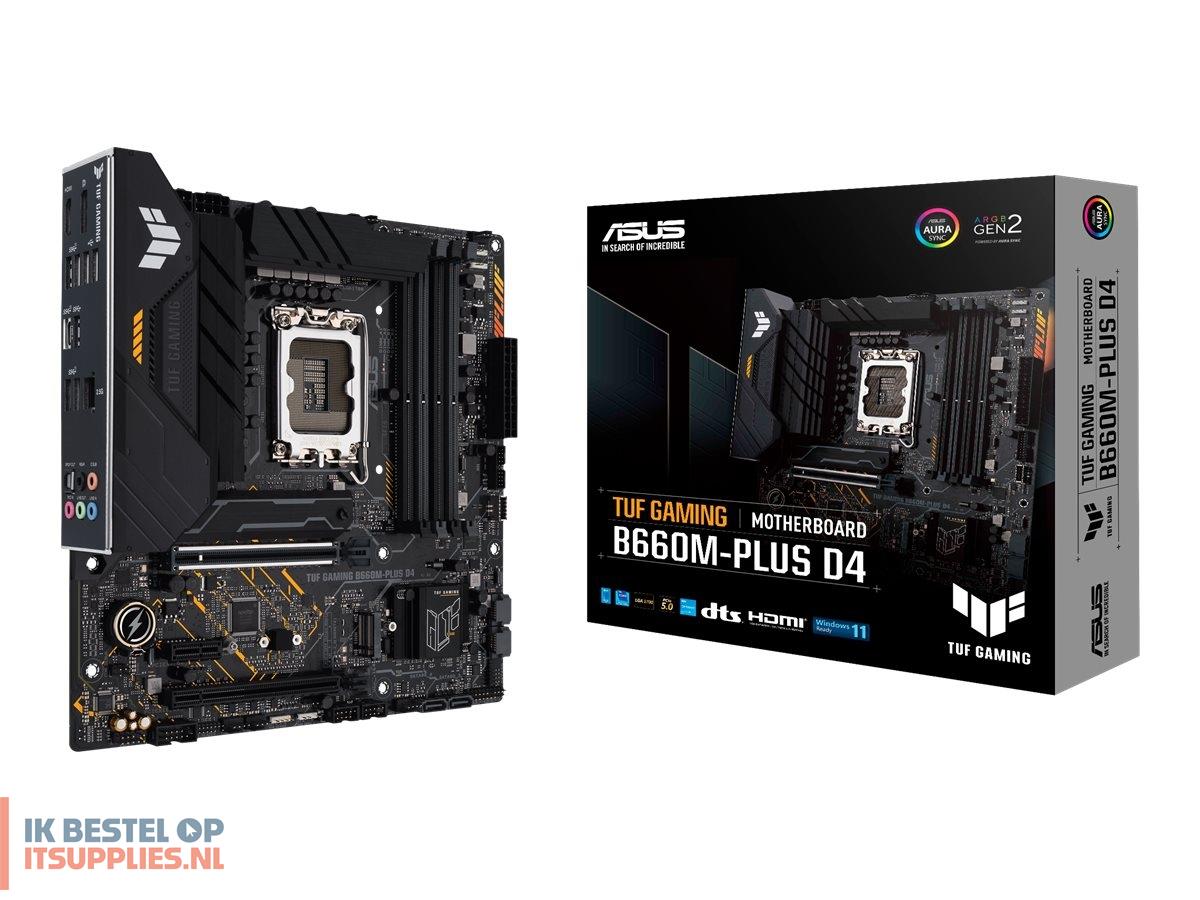

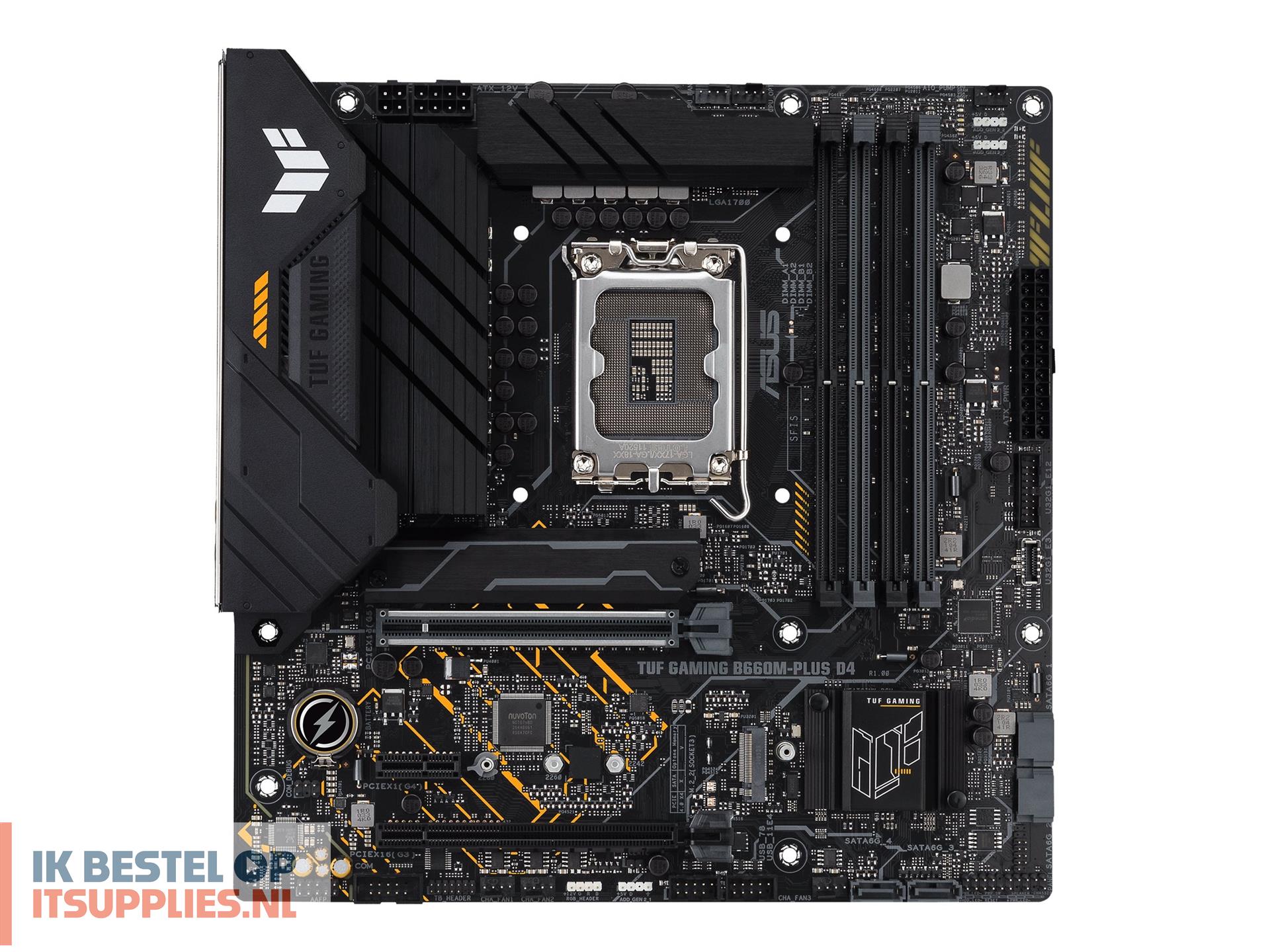

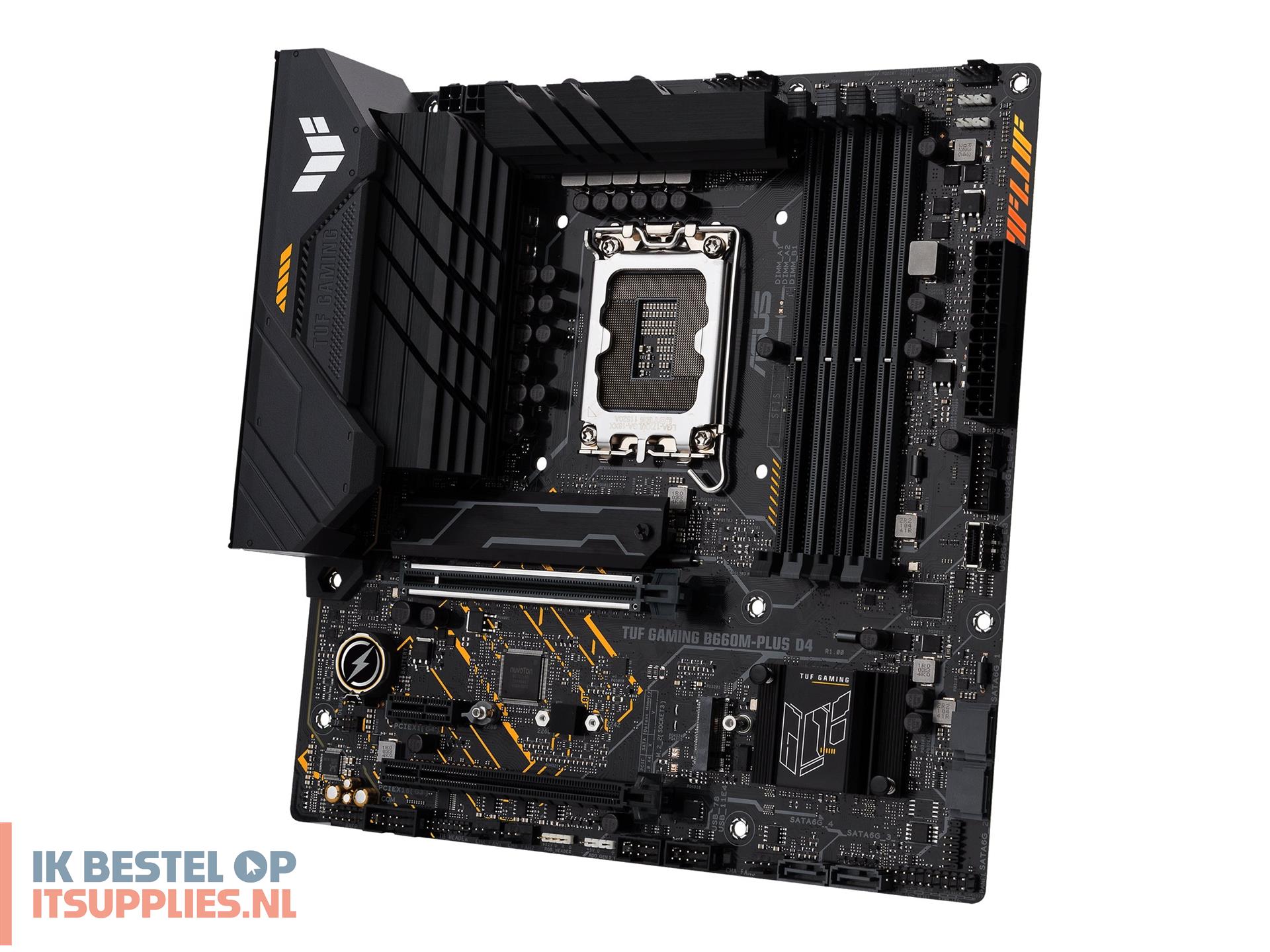

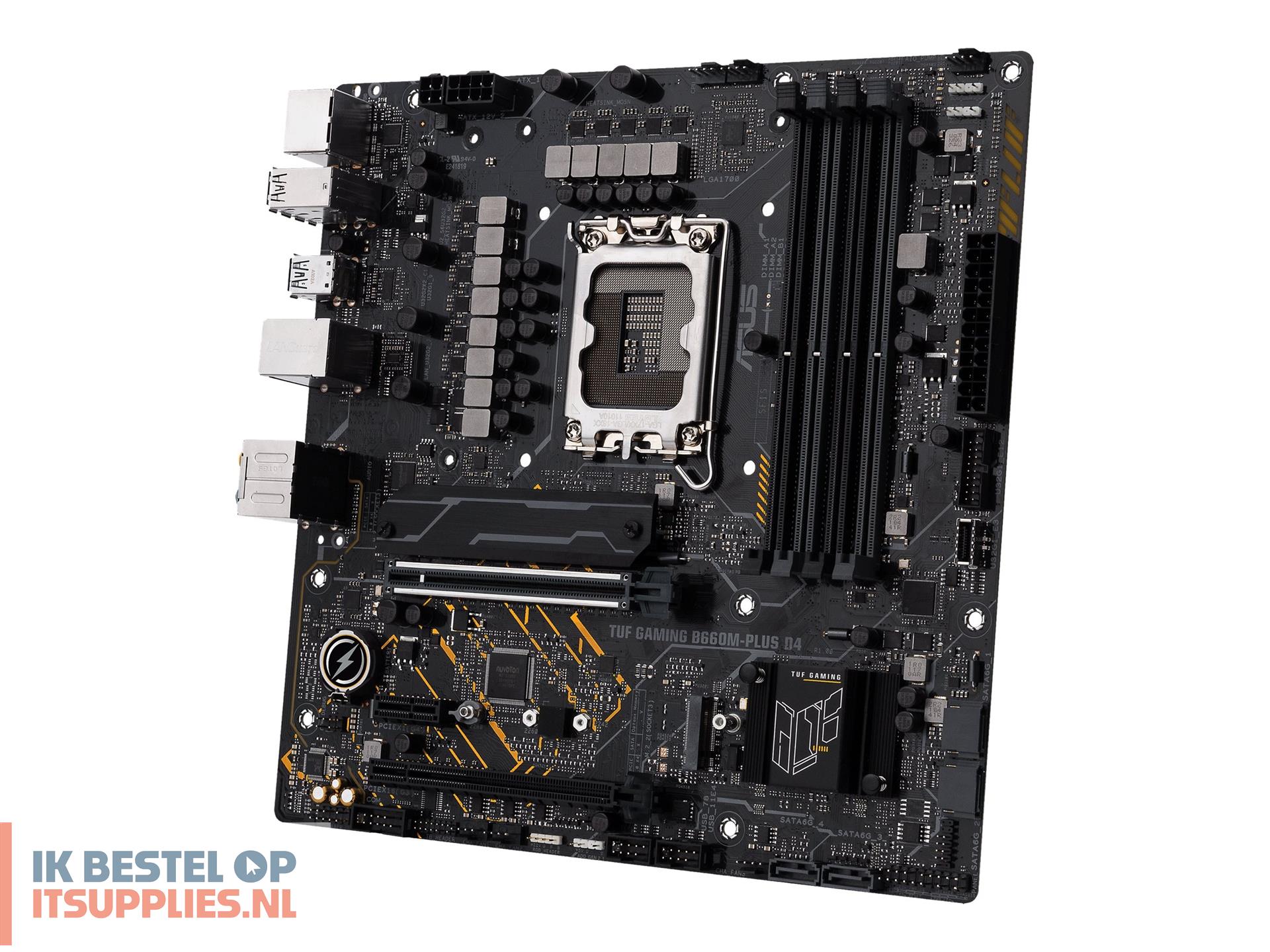

ASUS TUF GAMING B660M-PLUS D4

Productcode: 90MB1940-M0EAY0 | EAN/UPC: 4711081516897

€ 156,74 excl.btw

ASUS TUF GAMING B660M-PLUS D4 - Motherboard - micro ATX - LGA1700 Socket - B660 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen1, USB-C Gen 2x2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Intel LGA 1700 socket: ready for 12th Gen Intel processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: enlarged VRM heatsink, Stack Cool 3+, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Advanced connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI noise-cancelation: reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Op voorraad: 0 stuk(s)

Levertijd:

Product:
ASUS TUF GAMING B660M-PLUS D4

€ 189,66 incl. 21% btw € 156,74excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Product features

DrMOS
The onboard VRMs feature 10+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.
Six-layer PCB design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Enlarged VRM heatsink
The extensive surface area of the massive heatsink covers the VRMs and chokes to improve heat dissipation.
Flexible M.2 heatsink
The TUF GAMING B660M Series has flexible M.2 heatsink to use one more M.2 slot and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Two PCIe 4.0 M.2 slots
The two PCIe 4.0 M.2 slots support up to two 2280 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
USB 3.2 Gen 2x2 Type-C
Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING B660M-PLUS D4 includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that delivers increased bandwidth and transmission speeds of up to 20 Gbps.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Two-way AI noise cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

Specificaties

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel B660

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type

HD Audio (8-channel)

Compliant Standards

High Definition Audio

LAN

Network Interfaces

2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2

RAID Features

Intel Rapid Storage Technology

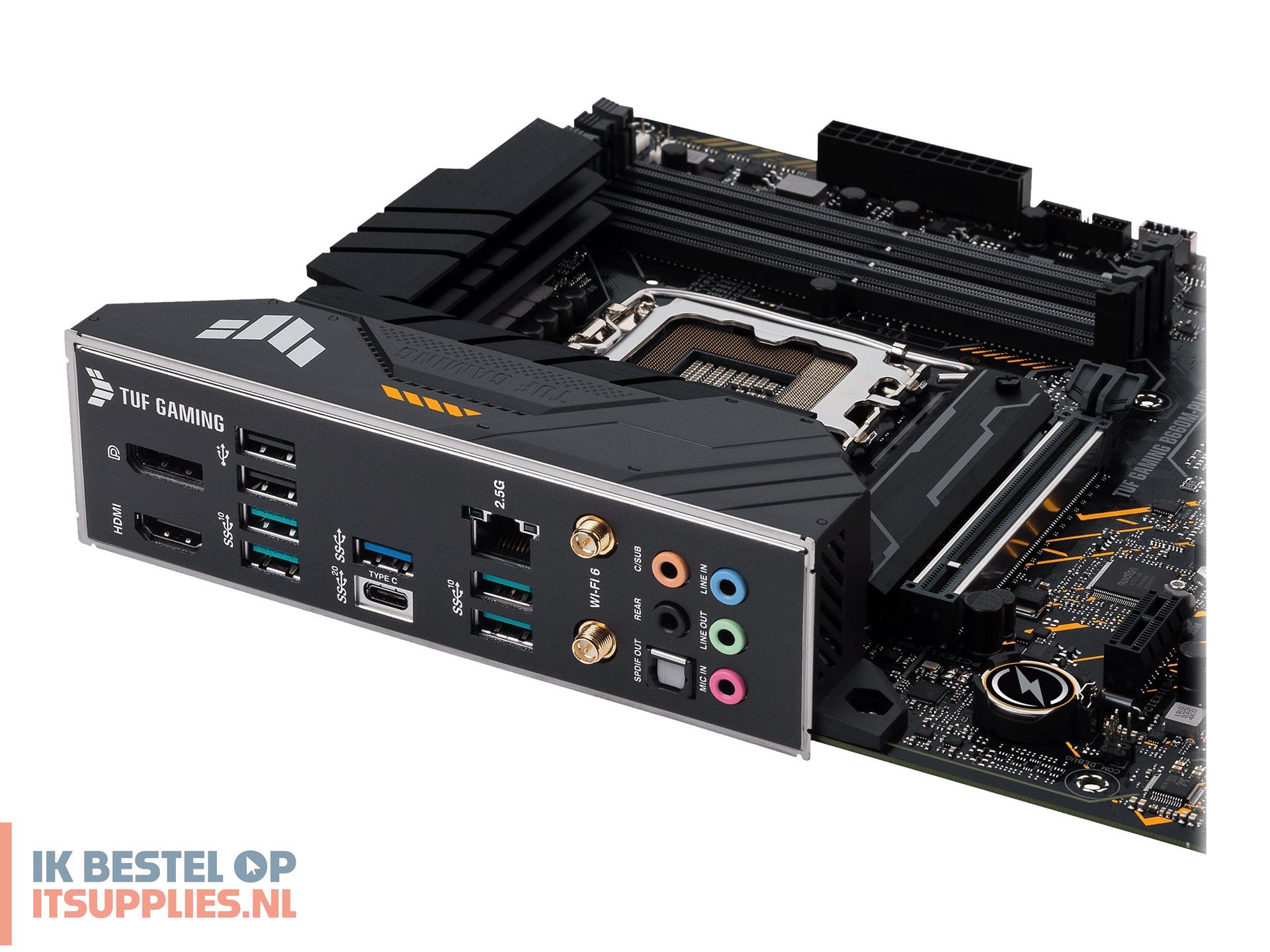

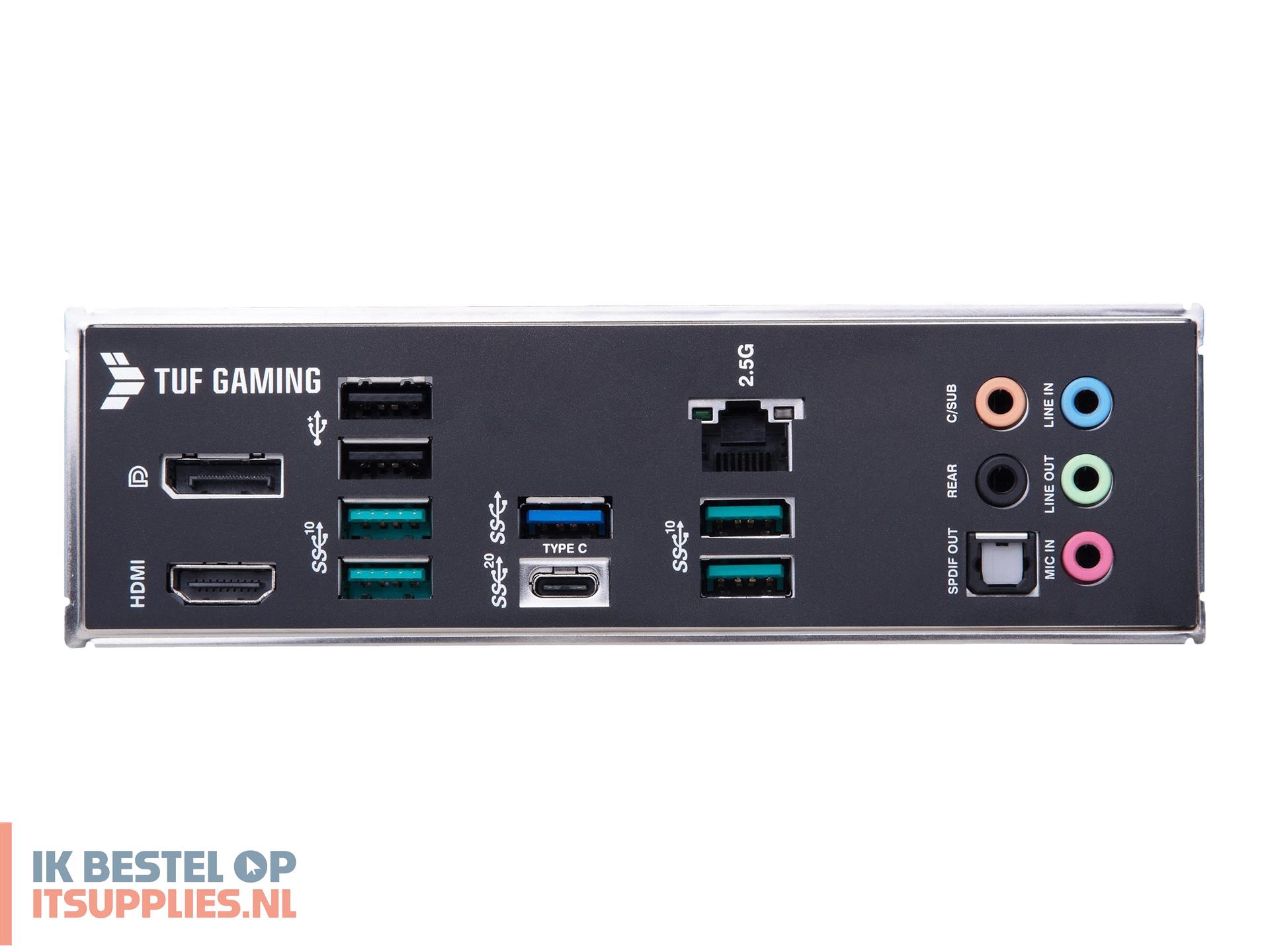

Interfaces

1 x HDMI
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
1 x USB 2.0
1 x USB-C Gen2x2
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x TOSLINK

Internal Interfaces

4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x audio - header
1 x serial - header
1 x Thunderbolt - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, jack retasking, audio jack detect technology, ASUS TUF Protection, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 2+, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Preboot eXecution Environment (PXE)

Miscellaneous

Included Accessories

1 x M.2 rubber package, 1 x M.2 screw, TUF stickers

Cables Included

2 x Serial ATA cable

Software Included

ASUS AI Suite III, ASUS AURA Creator, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR

Compliant Standards

DisplayPort 1.4

Width

24.4 cm

Depth

24.4 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
