General
Product Type

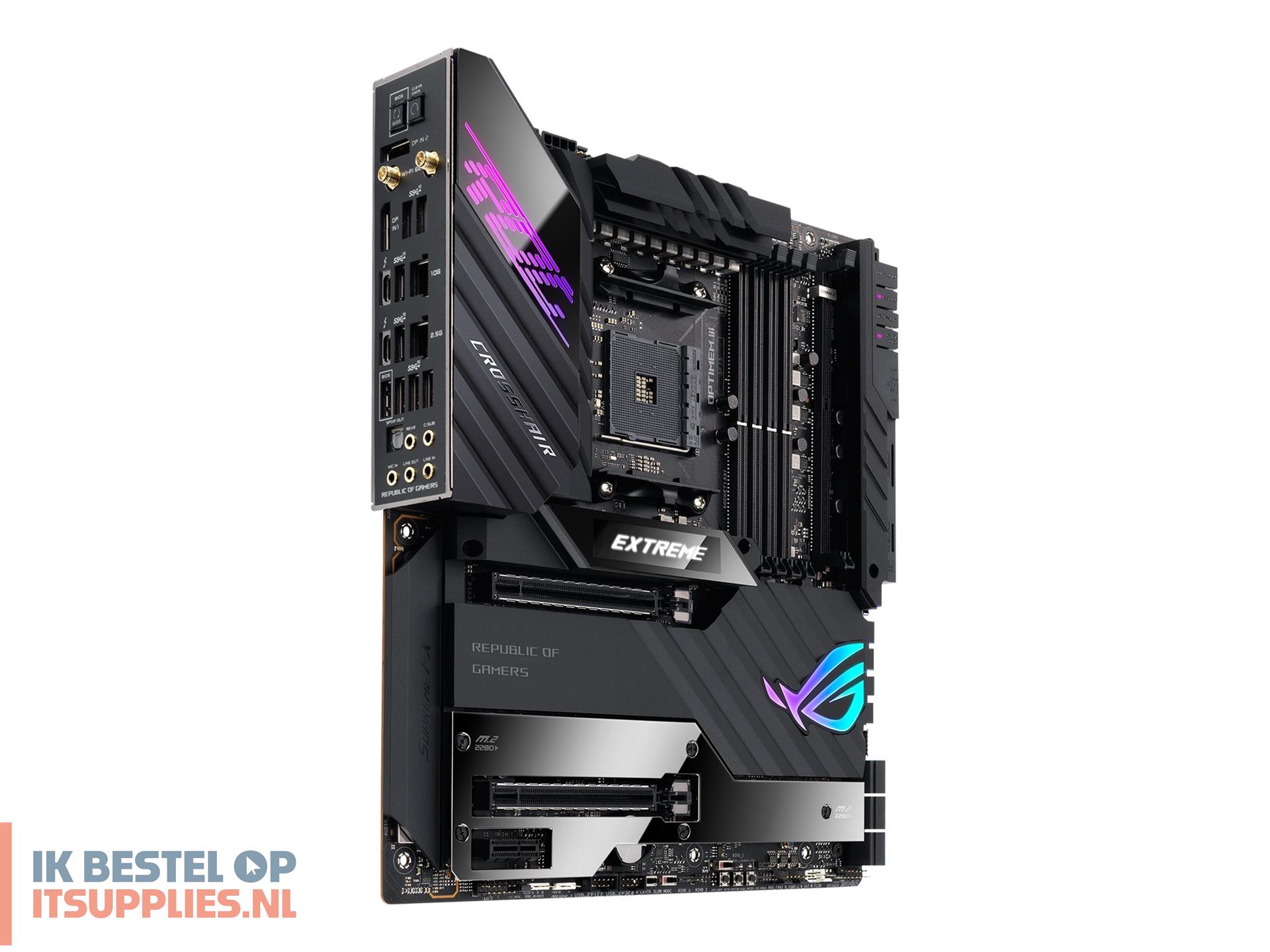

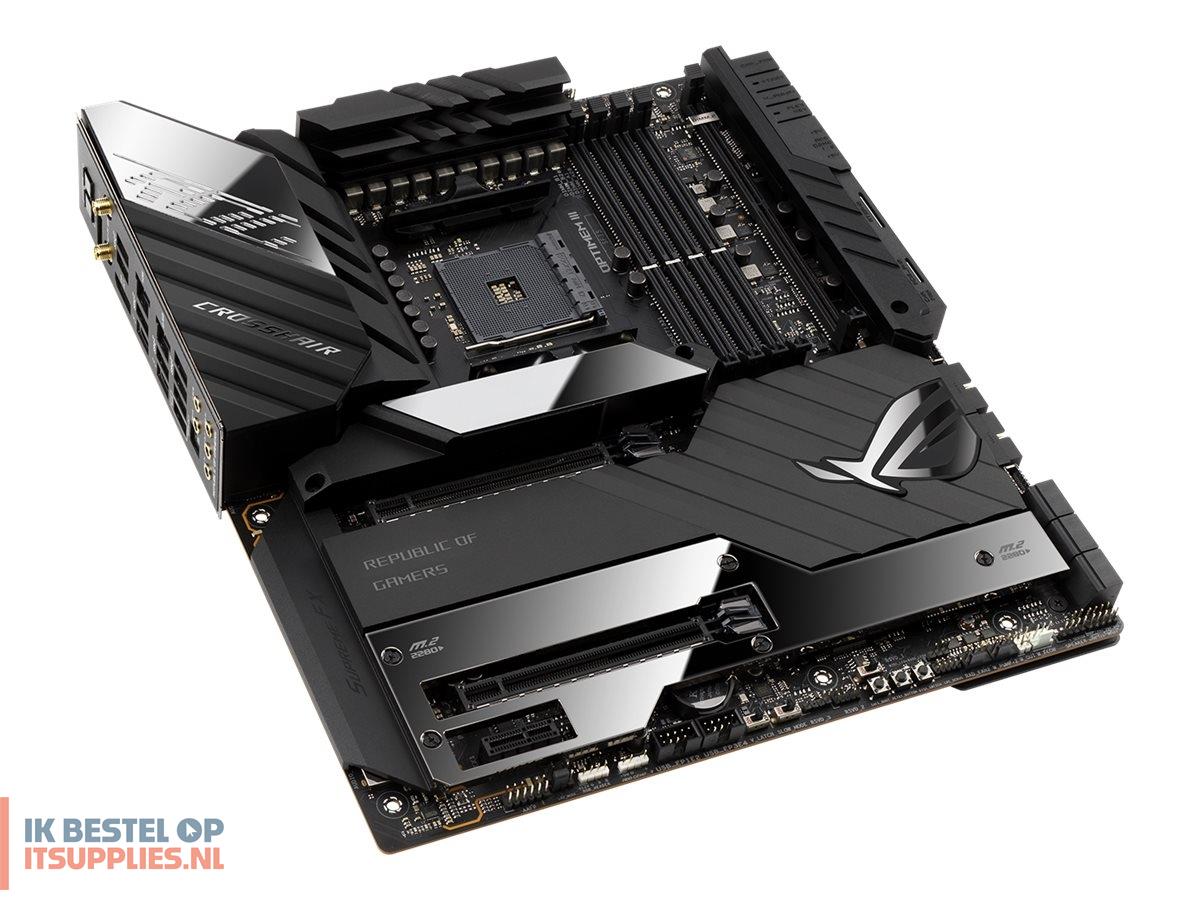

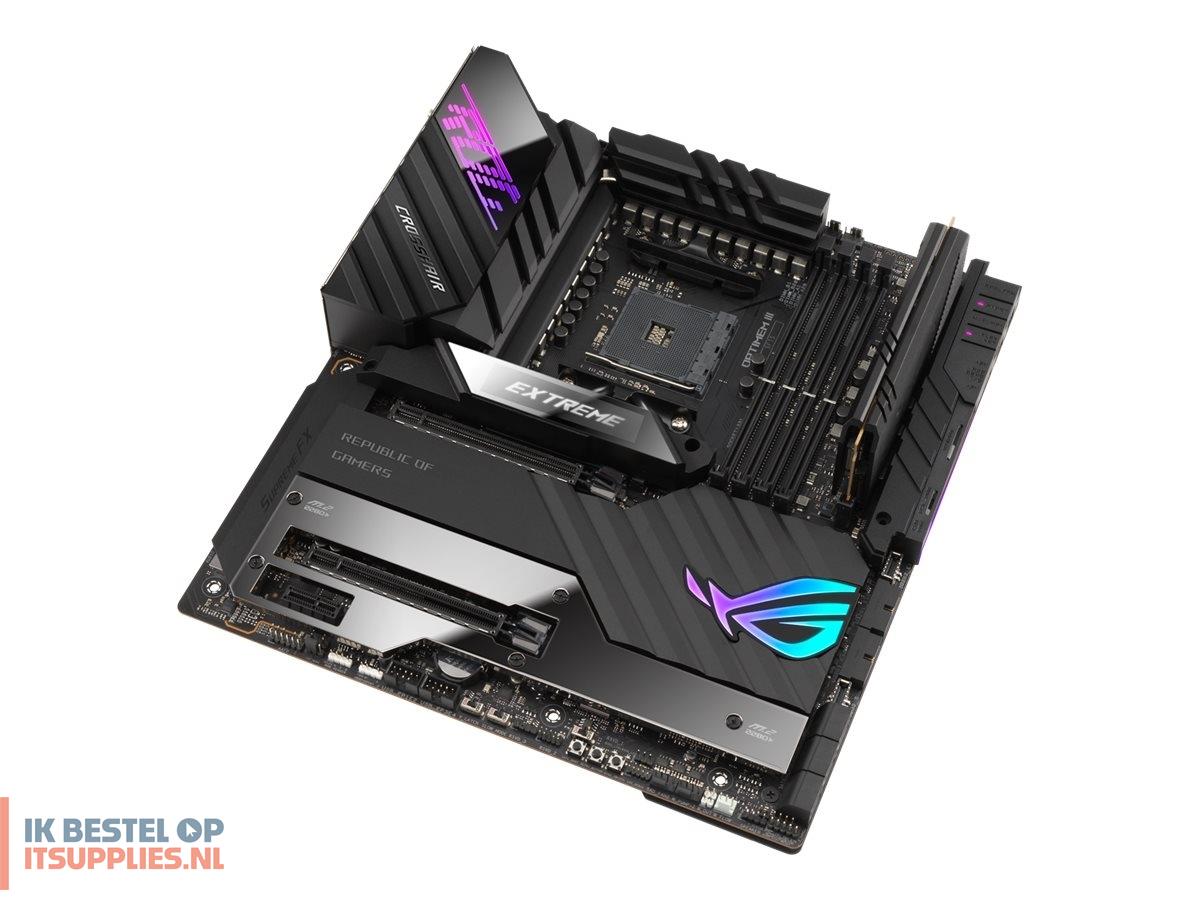

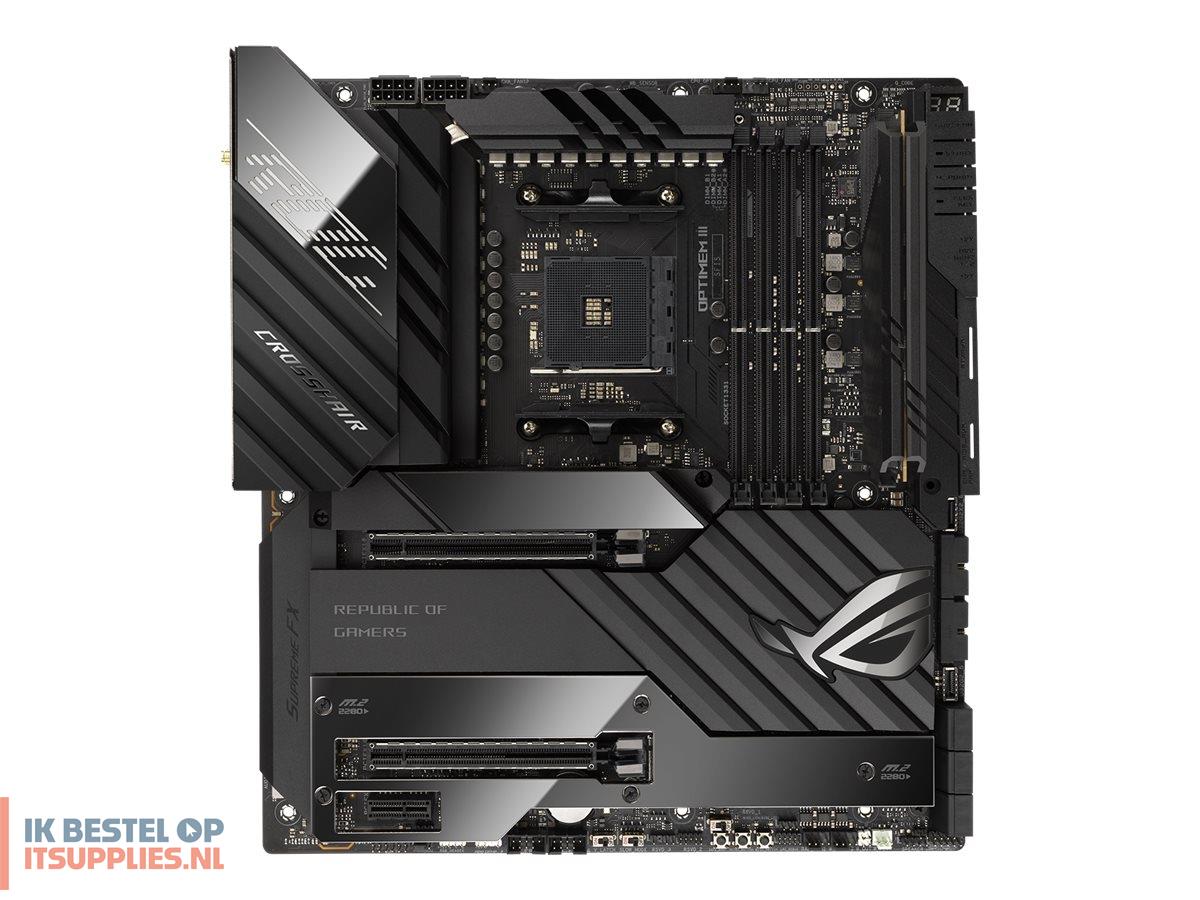

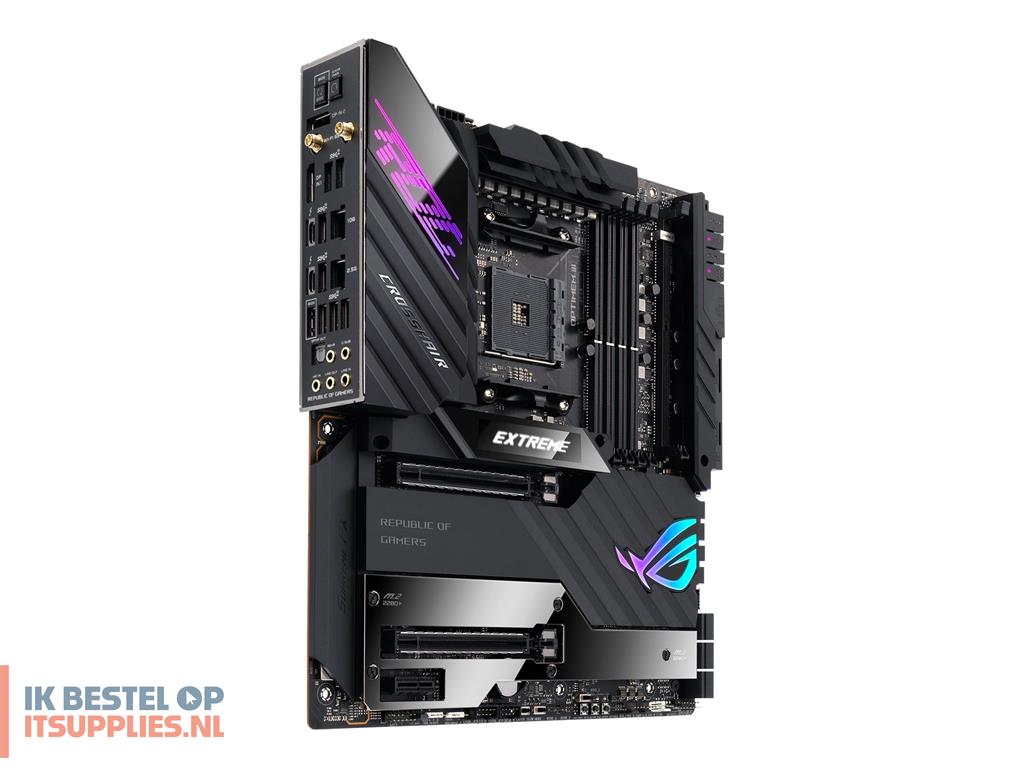

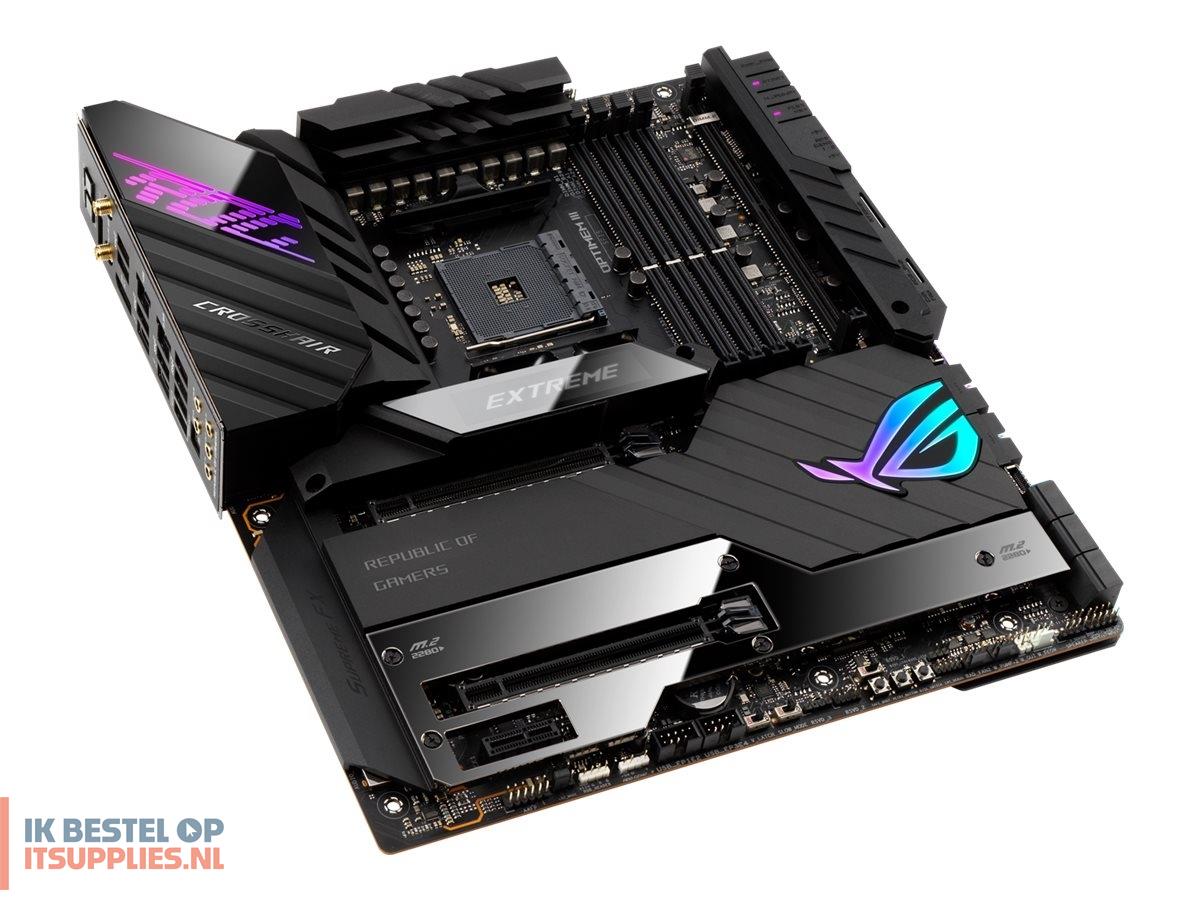

Motherboard - extended ATX
Processor Socket
Socket AM4
Compatible Processors
Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Audio Codec
SupremeFX (ALC4082)
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Controller
Intel I225-V / AQtion AQC113CS
Network Interfaces

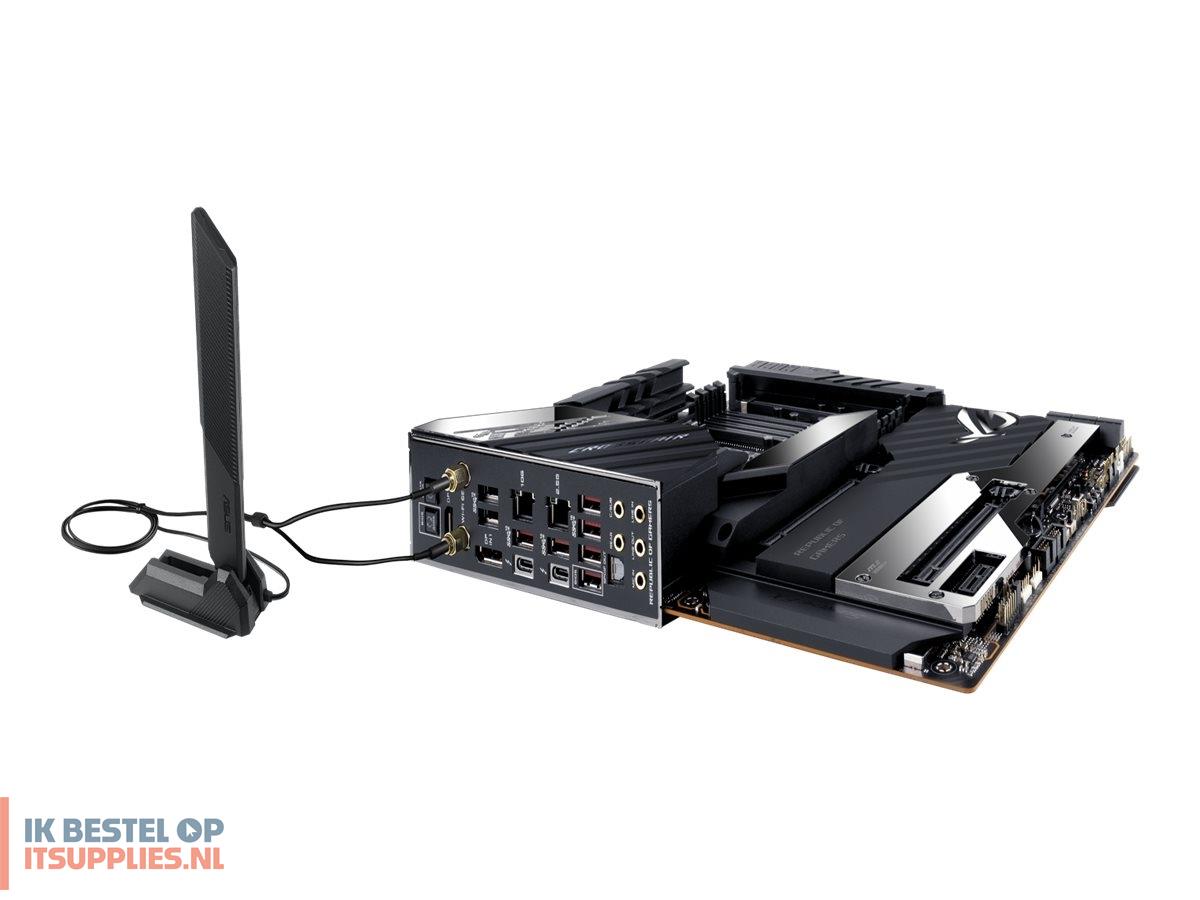

10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x1

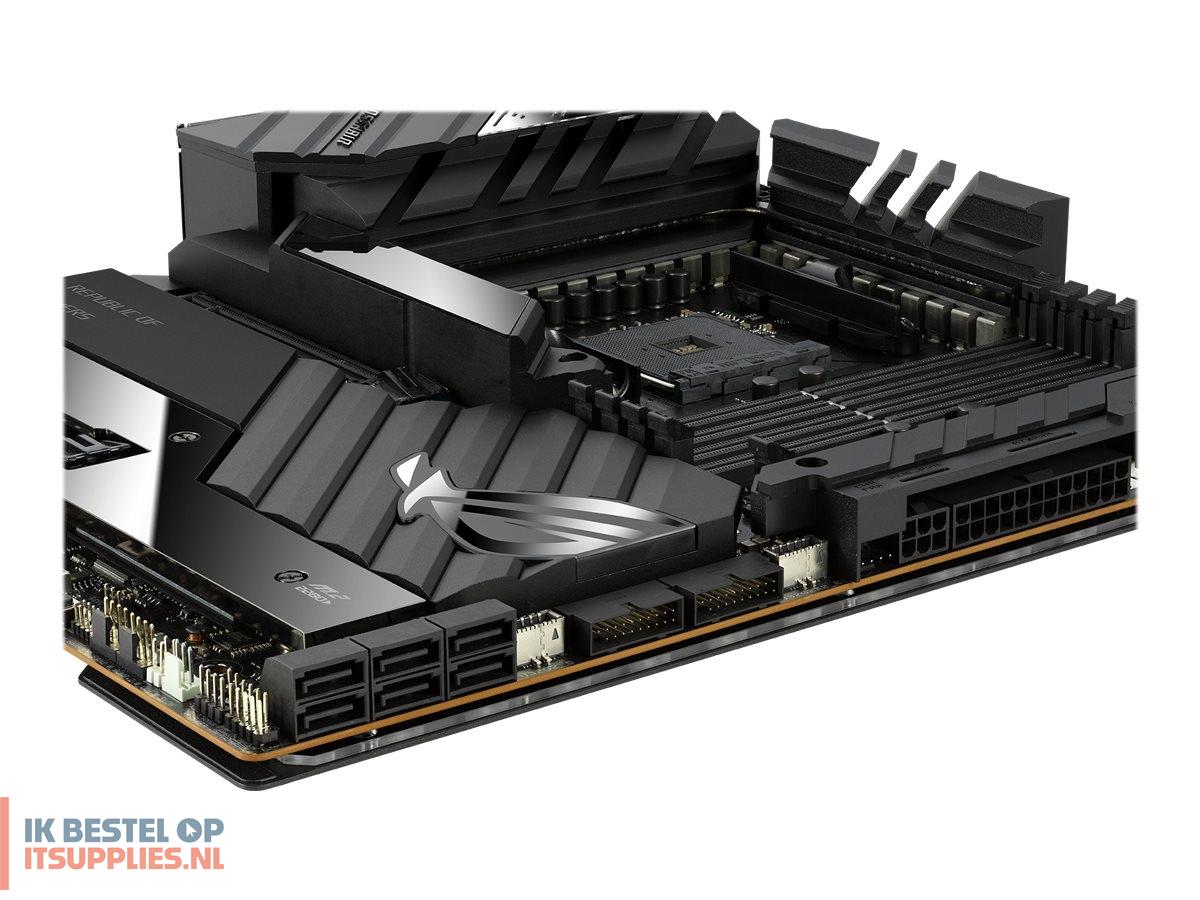

Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA
SATA-600 / PCIe 4.0 -connectors: 1 x M.2
PCIe 4.0 -connectors: 2 x M.2
SATA-600 / PCIe 4.0 -connectors: 1 x DIMM.2 - 2 devices

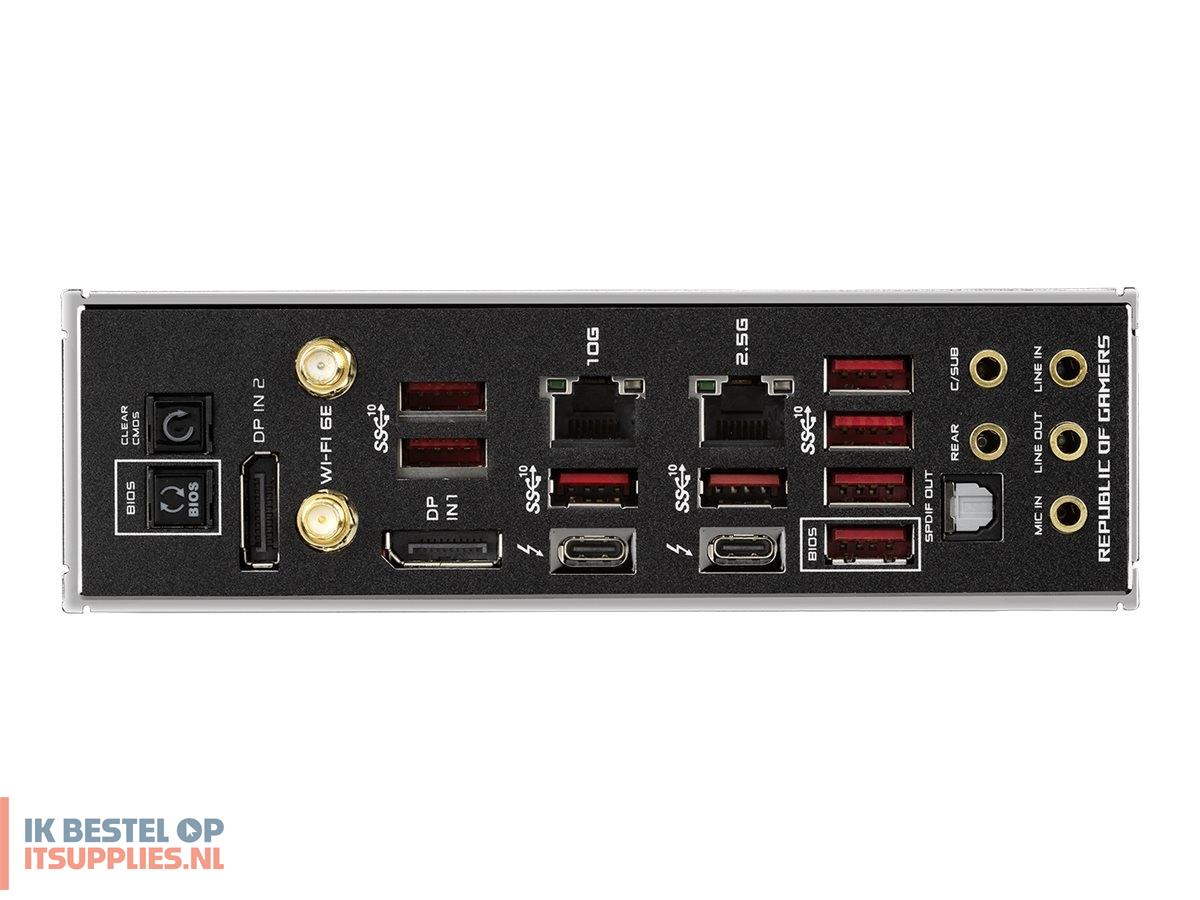

Interfaces
1 x LAN (10Gigabit Ethernet)
1 x LAN (2.5Gigabit Ethernet)
2 x Thunderbolt 4/DisplayPort/USB4
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x TOSLINK
8 x USB 3.2 Gen 2
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
2 x DisplayPort input
Internal Interfaces
4 x USB 2.0 - header
1 x USB-C Gen2 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C Gen 2x2 - header
1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector
Features
BIOS Features
BIOS FlashBack, UEFI BIOS
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS OptiMem III, NVIDIA 2-way SLI Technology Support, audio jack detect technology, jack retasking, SupremeFX Shielding technology, ESS 9018 SABRE HiFi DAC, LED-illuminated audio jacks, Clear CMOS Button, FlexKey button, ProbeIt, ASUS ROG Extreme OC, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS Q-Connector, ASUS Q-Design, LN2 Switch, M.2 Q-Latch, MicroFine Alloy Chokes, Q-Code, Q-DIMM, Q-LED, Q-Slot, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS Aura Sync, DualBIOS, Status OLED, ASUS HYDRANODE, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS DIGI+ Power Control, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), Dual Intelligent Processors 5, CrashFree BIOS 3, Preboot eXecution Environment (PXE)
Miscellaneous
Included Accessories
1 to 3 ARGB LED splitter cable, 1 to 4 fan splitter cable, RGB Addressable LED extension cable, 3 thermistor cables, ROG Fan Controller, DIMM.2 extension card, 4 x M.2 screws, ASUS Wi-Fi moving aerial, ROG CLAVIS DAC, thermal pad for M.2 SSD, Q-Connector, ROG key chain, graphics card holder, ROG logo plate sticker, screwdriver, ROG fan stickers, ROG thank you card, USB drive
Cables Included
3 x Serial ATA cable
External fan power adapter cable
Software Included
ASUS ROG RAMCache III, ROG CPU-Z, ROG GameFirst VI, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), AIDA64 Extreme (1 year licence), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, DAEMON Tools, WinRAR, ASUS EZ Flash 3
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
