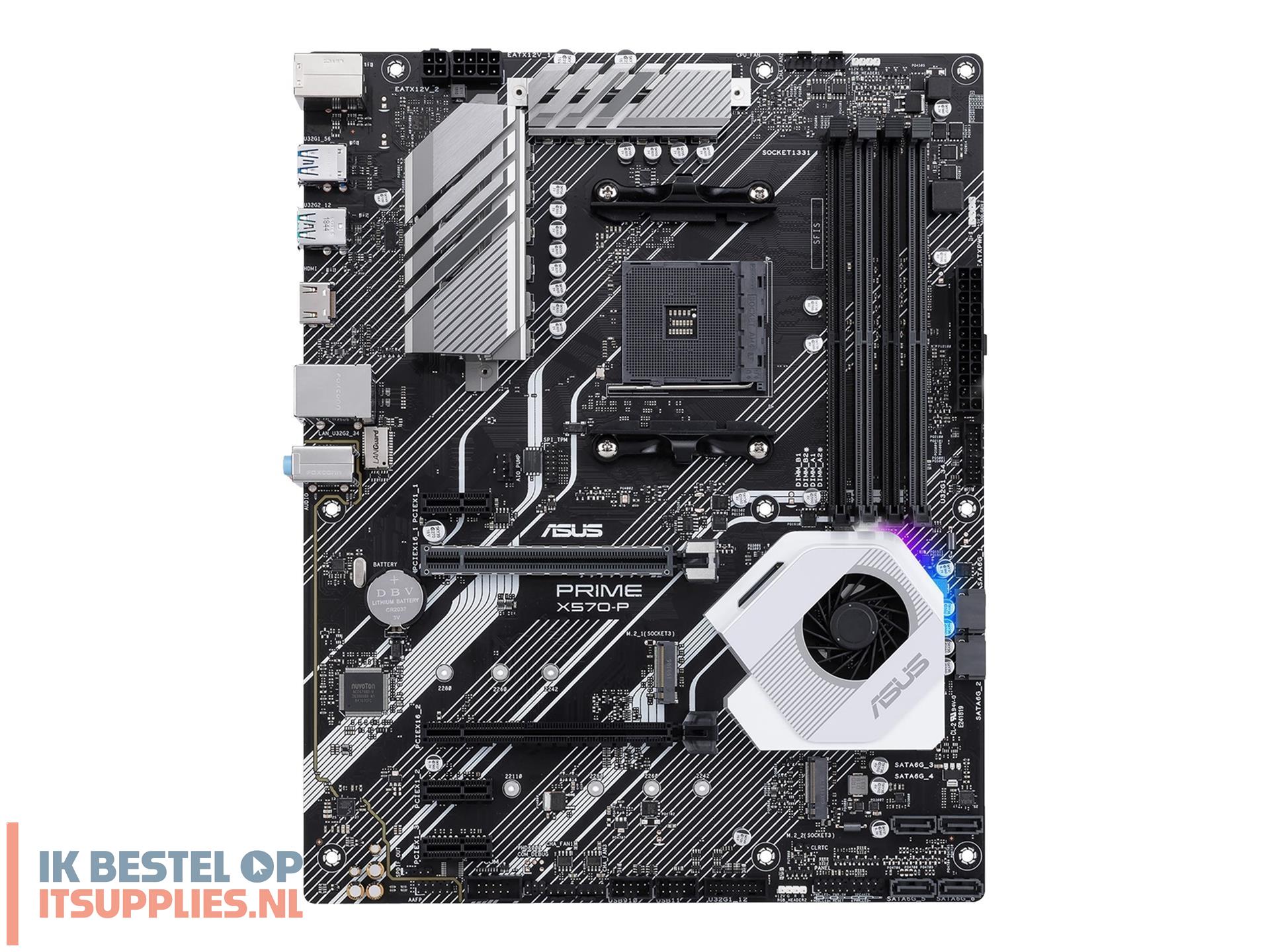

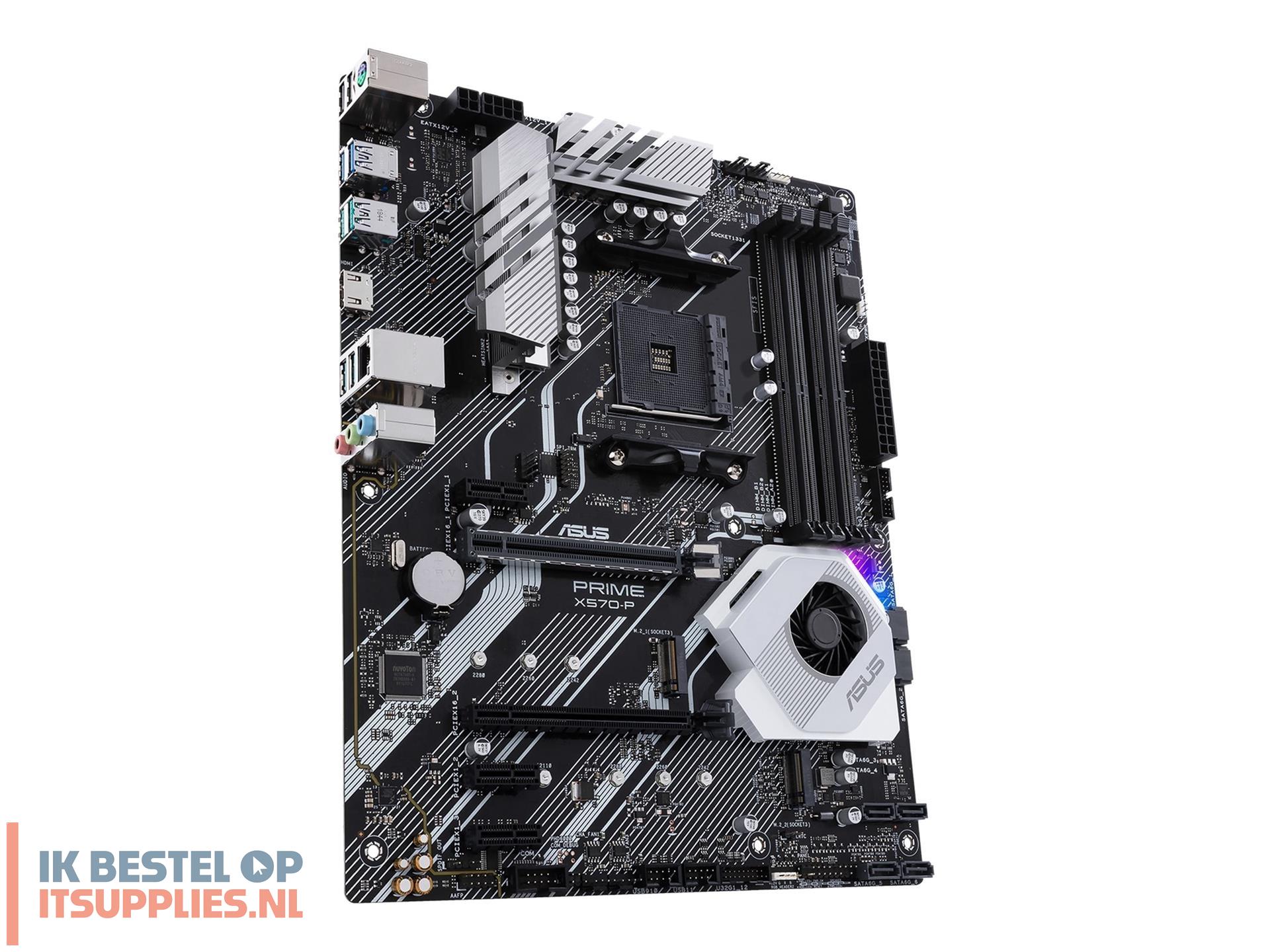

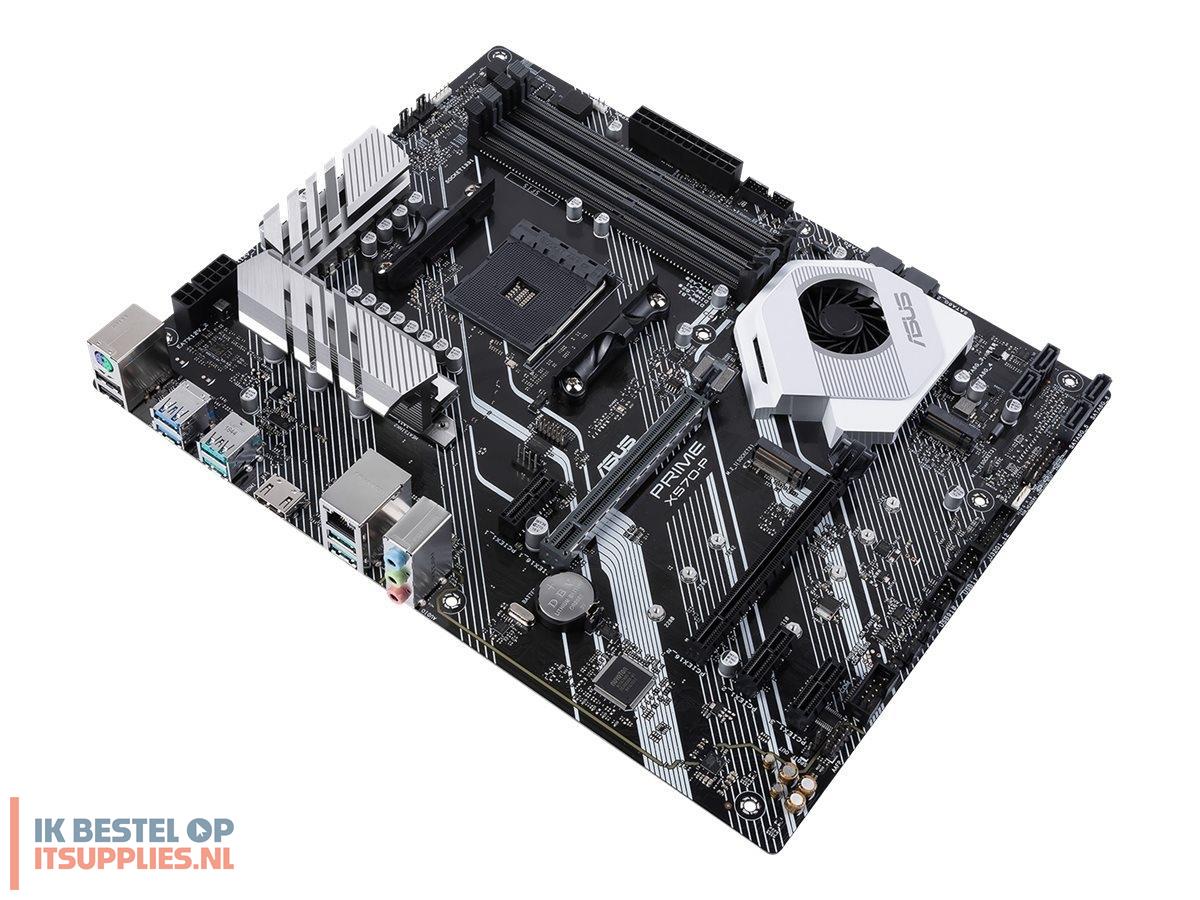

ASUS PRIME X570-P - Motherboard

Productcode: 90MB11N0-M0EAY0 | EAN/UPC: 4718017263818

€ 242,44 excl.btw

ASUS PRIME X570-P - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Ready for 3rd and 2nd Gen AMD Ryzen processors
8+4 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports
Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

Op voorraad: 13 stuk(s)

Levertijd:

Product:
ASUS PRIME X570-P - Motherboard

€ 293,35 incl. 21% btw € 242,44excl. 21% btw

Winkelwagen Offerte

Omschrijving

ASUS PRIME X570-P - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Product features

Power delivery enhancements
The 3rd Gen AMD Ryzen processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-P is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.
Achieve speed with onboard M.2
With PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data-transfer speeds on the 3rd Generation AMD Ryzen platform.
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.
Proprietary memory design
ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
Ultimate-speed 10Gbps with USB 3.2 Gen 2 onboard
With backward-compatible USB 3.2 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Pumped-up throughput, 2.5x higher surge tolerance
ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
Cooler by design
Prime X570-P features comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Dedicated cooling for unthrottled transfers
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-P features an actively cooled heatsink to prevent throttling during sustained transfers.
Realtek codec and unique design features for pristine, powerful audio
Prime X570-P utilizes a unique audio codec designed in close collaboration with Realtek - the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
All-round efficiency
With the Energy Processing Unit you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
Flexible cooling controls for air or liquid
Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
EZ Mode
Designed for easy setup, EZ Mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop simplicity, and one-click convenience to apply important settings, your rig will be up and running in no time.
Advanced Mode
When you're ready to take a deeper dive into the configuration of your rig, Advanced Mode grants total control. Each section is intuitively organized, and a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, and unleash the full potential of the latest Ryzen processor.
Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Addressable Gen 2 RGB header
Prime X570-P's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. These headers also offer backward-compatibility with existing Aura RGB gear.
LED-illuminated control for PCH
Built-in LED lighting options illuminate your build in a variety of eye-catching styles.
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics processors
The high-performance 3rd Gen AMD Ryzen processors are based on the 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.

Specificaties

General

Product Type

Motherboard - ATX

Chipset Type

AMD X570

Processor Socket

Socket AM4

Max Processors Qty

Compatible Processors

Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.)

Supported RAM Integrity Check

ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALCS1200A

Compliant Standards

High Definition Audio

LAN

Network Controller

Realtek RTL8111H

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics))
1 x PCIe 4.0 x16 (x4 mode)
3 x PCIe 4.0 x1

Storage Interfaces

SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -connectors: 2 x M.2

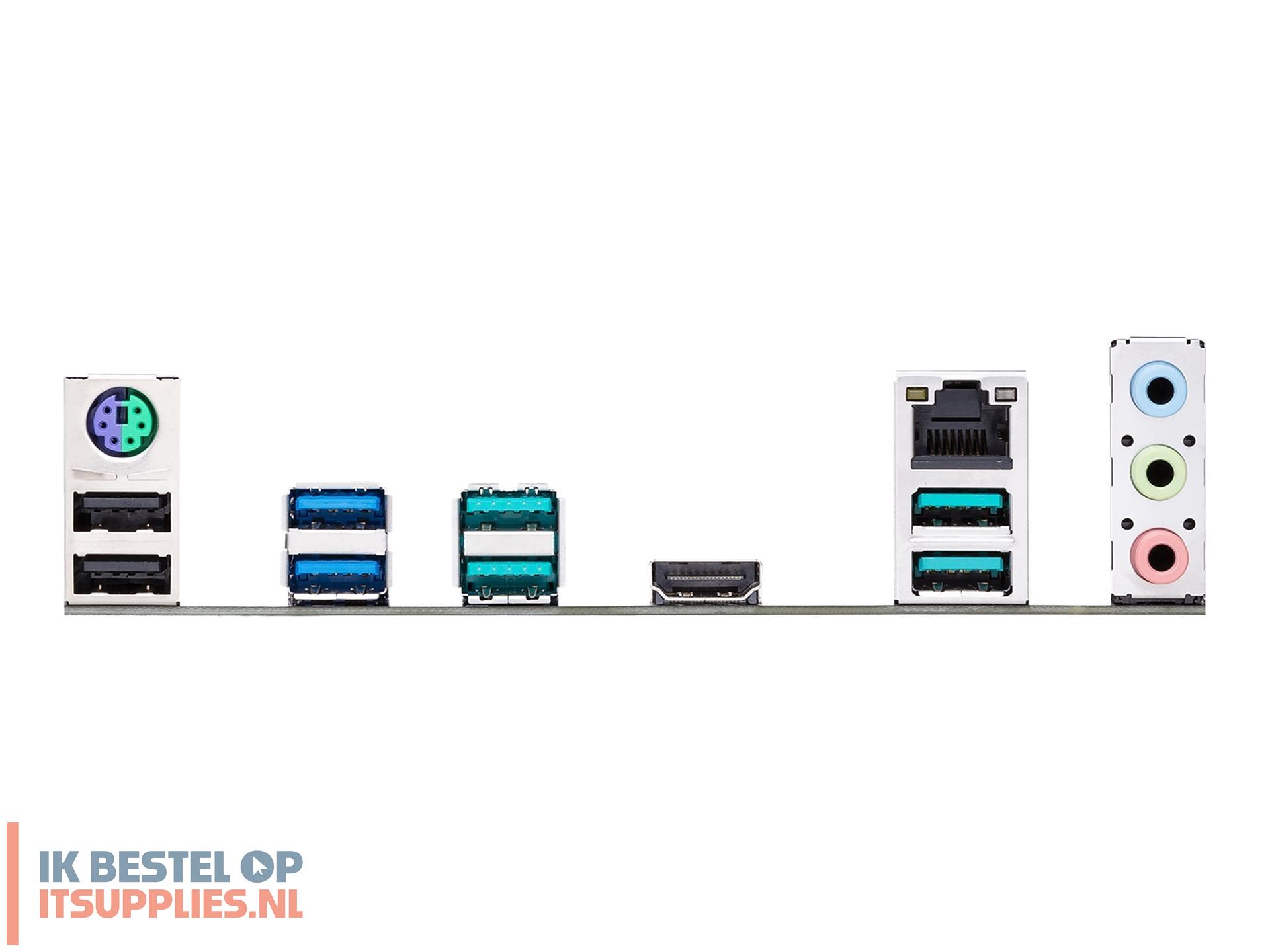

Interfaces

1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
2 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
2 x USB 2.0
1 x HDMI
1 x PS/2 keyboard / mouse

Internal Interfaces

5 x USB 2.0 - header
1 x SPDIF out - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x serial - header

Power Connectors

4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ProCool Power Connector, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem, Armoury Crate, 8+4 DrMOS power stages

Miscellaneous

Included Accessories

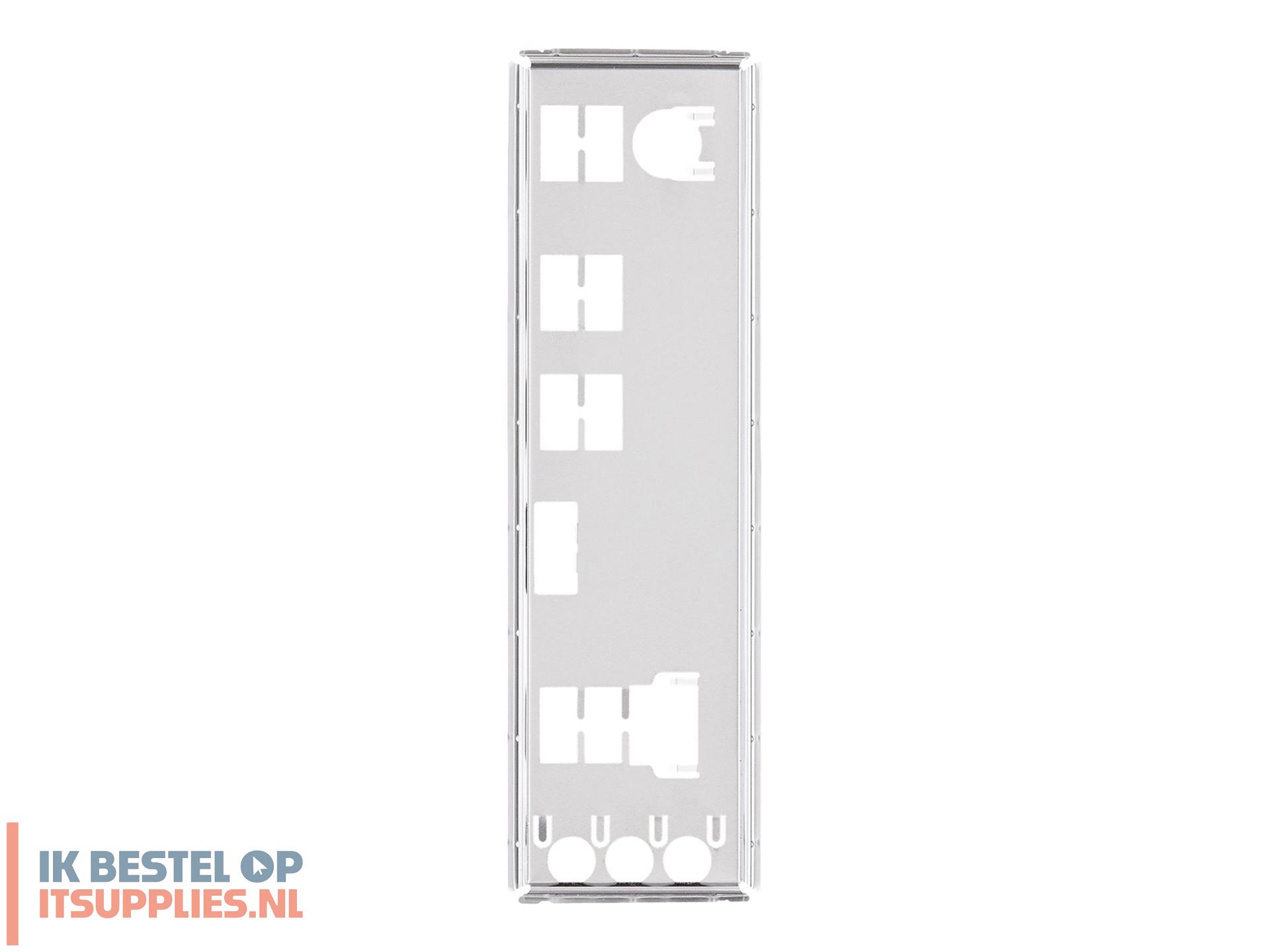

1 x M.2 screw, I/O back cover, RGB Addressable LED extension cable

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III

Compliant Standards

Plug and Play

Width

30.5 cm

Depth

24.4 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
