General
Product Type

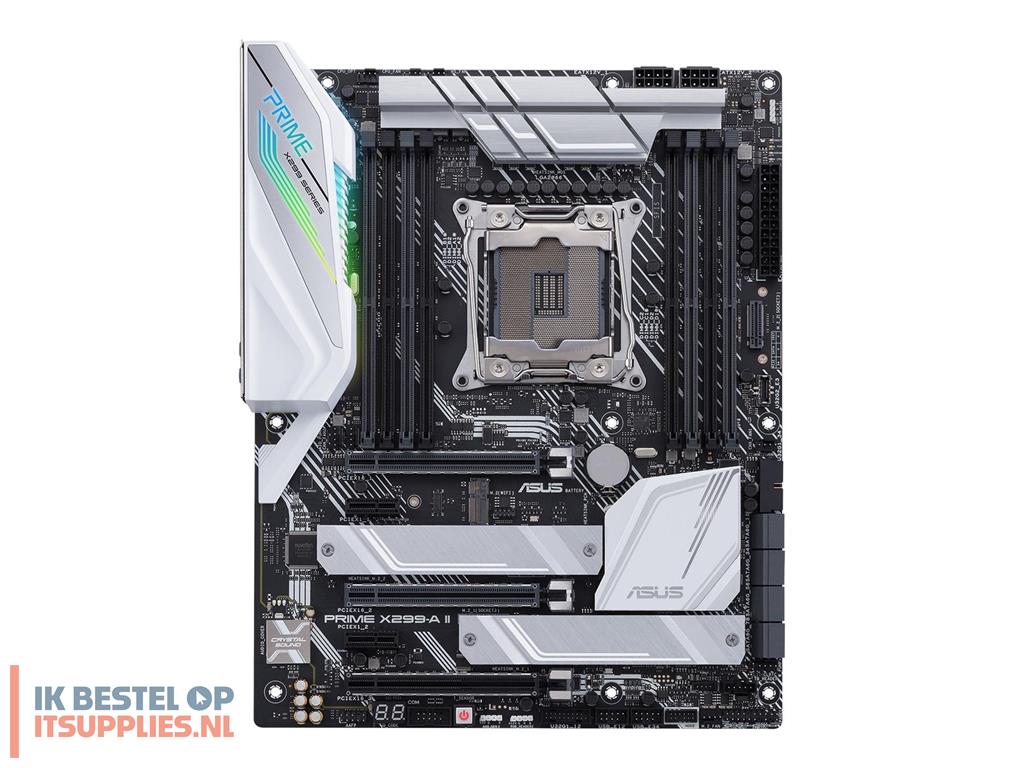

Motherboard - ATX
Processor Socket
LGA2066 Socket
Compatible Processors
Core X
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP)
Audio
Audio Codec
Realtek ALCS1220A
Compliant Standards
High Definition Audio, DTS:X Ultra
LAN
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (44-lane CPU (x16, x16/x16, x16/x16/x8 modes), 28-lane CPU (x16, x16/x8 modes)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 2 x M.2
Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, anti-pop function, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Turbo Boost Technology 3.0, Intel Optane Memory Ready, ASUS 5X Protection III, Intel VROC support, pre-mounted I/O shield, Armoury Crate, ASUS Node, ProCool II Power Connector
Miscellaneous
Included Accessories
RGB (RGBW) LED strip extension cable, vertical M.2 bracket set, RGB Addressable LED extension cable
Cables Included
4 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), ASUS Turbo Core App
Compliant Standards
Plug and Play
