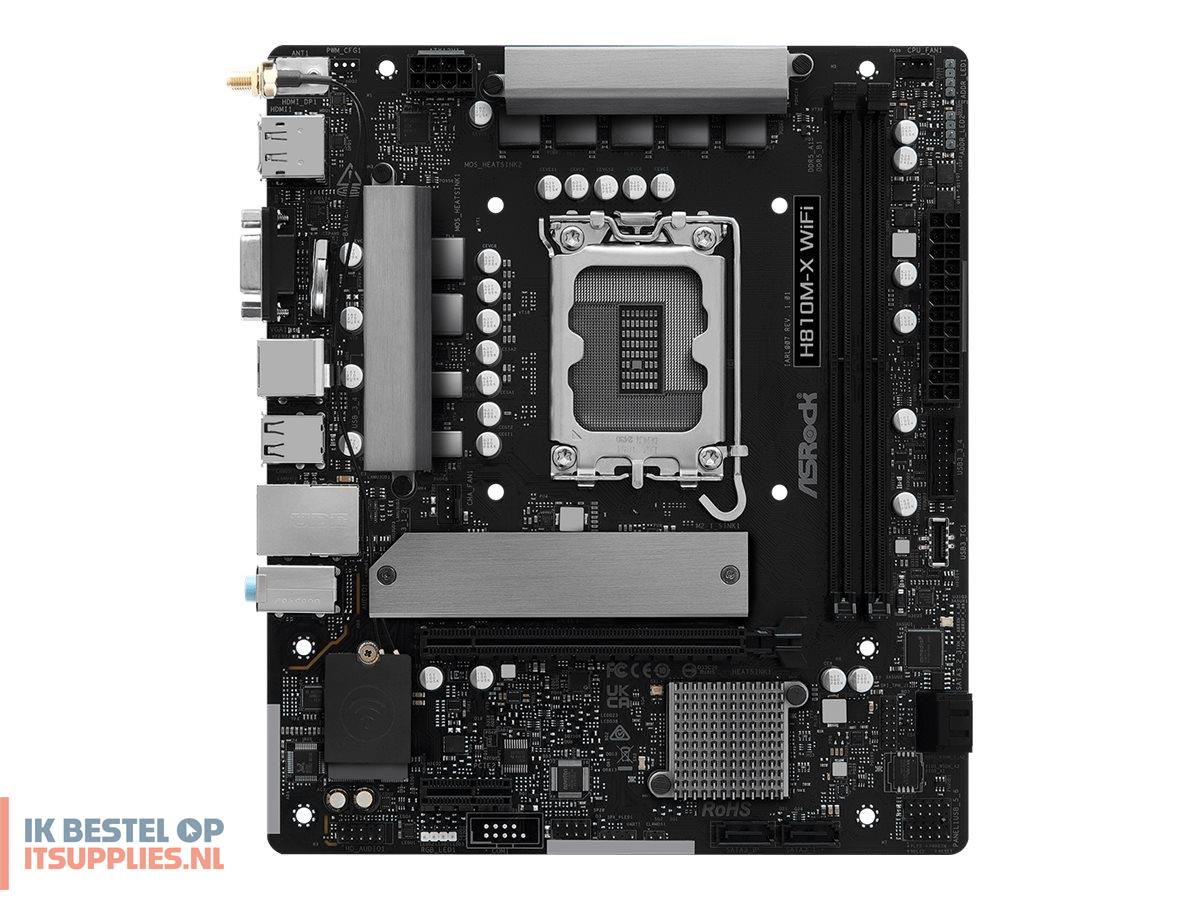

ASRock H810M-X WIFI - Motherboard

Productcode: 90-MXBS6-A0UAYZ | EAN/UPC: 4711581490659

€ 97,06 excl.btw

ASRock H810M-X WIFI - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Supports Intel Core Ultra processors (Series 2)
Equipped with Realtek ALC897 high definition audio codec
Includes multiple USB ports including USB-C 3.2 Gen 1
Features 2.5 Gigabit Ethernet for enhanced network speed
Intel H810 chipset with dual-channel memory architecture

Op voorraad: 50 stuk(s)

Levertijd:

Product:
ASRock H810M-X WIFI - Motherboard

€ 117,44 incl. 21% btw € 97,06excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Versatile connectivity options
The motherboard provides an array of ports including HDMI, DisplayPort, and multiple USB options to accommodate a variety of devices and peripherals, offering ease of use for a comprehensive setup.
Enhanced audio quality
With the Realtek ALC897 audio codec, enjoy high definition audio output that delivers immersive sound quality for gaming, media consumption, and professional applications.
Robust memory support
Designed for DDR5 SDRAM, the motherboard supports dual-channel memory architecture and Intel Extreme Memory Profiles (XMP) 3.0, ensuring optimal performance and seamless multitasking.
Fast networking capabilities
Featuring 2.5 Gigabit Ethernet and compatibility with the latest wireless technologies, this motherboard enables high-speed Internet connectivity for smooth online experiences.
Easy BIOS management
Utilizing AMI UEFI BIOS, this motherboard comes with features like ASRock Instant Flash that simplify system navigation and BIOS updates, making it user-friendly for all levels of expertise.

Specificaties

General

Product Type

Motherboard - micro ATX

Chipset Type

Intel H810

Processor Socket

LGA1851 Socket

Max Processors Qty

Compatible Processors

(supports Intel Core Ultra processors (Series 2))

Supported RAM

Max Size

128 GB

Technology

DDR5

Bus Clock

3200 MHz

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered, clocked unbuffered

Features

Dual channel memory architecture, unbuffered, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC897

Compliant Standards

High Definition Audio

LAN

Network Controller

Dragon RTL8125BG

Network Interfaces

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0

Expansion / Connectivity

Expansion Slots

1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
M.2 socket (Key E, for wireless module)
M.2 socket (2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x M.2

Interfaces

2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x VGA
1 x PS/2 keyboard / mouse
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
2 x aerial

Internal Interfaces

1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x SPI - header
1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS

Hardware Features

6+1+1+1 Phase Power Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash

Miscellaneous

Included Accessories

IO shield, 1 x M.2 screw, 2 x ASRock WiFi 2.4/5GHz Antennas

Cables Included

2 x Serial ATA cable

Software Included

ASRock Dragon 2.5G LAN Software, ASRock A-Tuning, ASRock Polychrome SYNC

Compliant Standards

FCC

Width

22 cm

Depth

19.3 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
