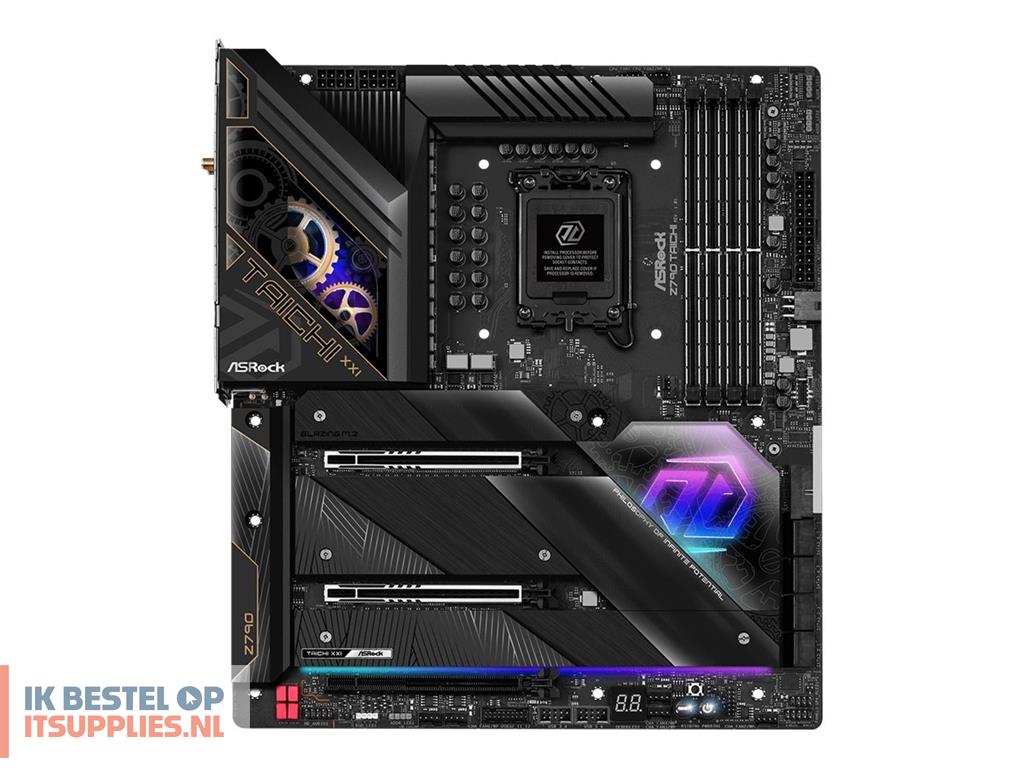

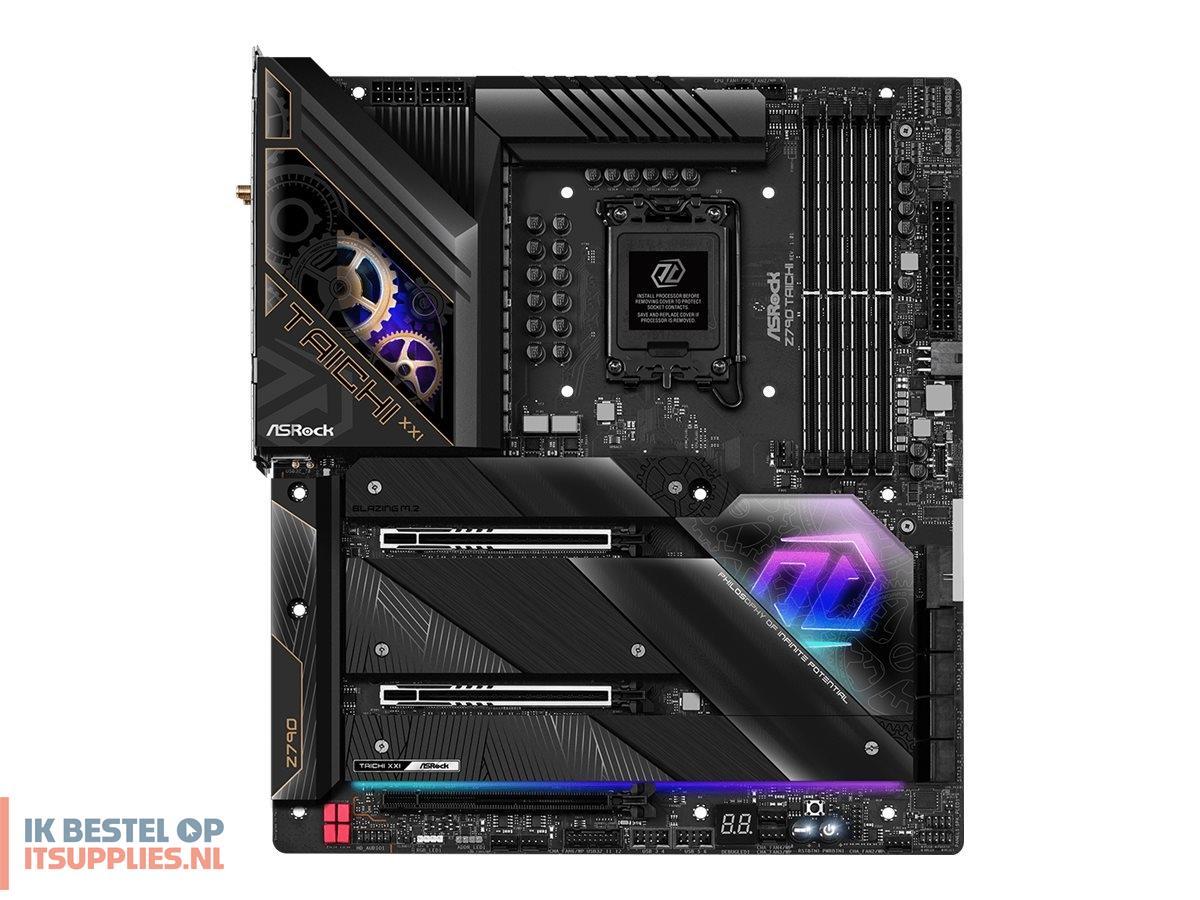

ASRock Z790 Taichi - Motherboard

Productcode: 90-MXBJD0-A0UAYZ | EAN/UPC: 4710483941085

€ 703,48 excl.btw

ASRock Z790 Taichi - Motherboard - extended ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - Bluetooth, 2.5 Gigabit LAN, Wi-Fi 6 - onboard graphics (CPU required) - HD Audio (5.1-channel)

Supports 13th Gen and 12th Gen Intel Core processors
24+1+2-phase power design, SPS for VCore+GT
Nahimic Audio
Killer 2.5G LAN, Intel 1G LAN
Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

Op voorraad: 1 stuk(s)

Levertijd:

Product:
ASRock Z790 Taichi - Motherboard

€ 851,21 incl. 21% btw € 703,48excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Optimized VRM design
Dr.MOS design features the SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smooth and neat power to the CPU with enhanced performance and OC capability.
8-layer PCB design
The 8-layer PCB provides stable signal traces and power shapes delivering low temperature and high energy efficiency, ensures a reliable and long-lasting system while delivering powerful performance without any compromise.
DDR5 XMP and EXPO support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 memory with protection circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximizes stability under high speed, a key breakthrough to fully support the lighting speed of the PCIe 5.0 standard.
PCIe Gen 5 Blazing M.2
The Blazing M.2 accommodates the PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128 Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Composite VRM heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.
Anti-drop screw
The enhanced M.2 heatsink with anti-drop screw design that makes sure installation process more easily.
Thunderbolt technology
Thunderbolt 4/USB4 technology brings speed and versatility to the advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40 Gbps and connects external monitors, Thunderbolt, and USB devices with a single Thunderbolt 4 cable.
More than USB transfer speed
Aimed for die hard gamers and enthusiasts! Lightning Gaming ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Wi-Fi 6E 802.11ax
Wi-Fi 6E technology has extended to the 6 GHz spectrum band, providing more Wi-Fi capability and giving a good and fast Internet traffic. In addition to deliver high speeds, the Wi-Fi 6E also enhances the low latency and supports service levels that are equivalent to 5G networks.
USB 3.2 Gen 2x2 Type-C
The USB 3.2 Gen 2x2 Type-C delivers up to 20 Gbps data transfer rate.

Specificaties

General

Product Type

Motherboard - extended ATX

Chipset Type

Intel Z790

Processor Socket

LGA1700 Socket

Max Processors Qty

Compatible Processors

(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size

128 GB

Technology

DDR5

Bus Clock

7000 MHz (O.C.)

Supported RAM Integrity Check

Non-ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type

HD Audio (5.1-channel)

Audio Codec

Realtek ALC4082

Compliant Standards

High Definition Audio

LAN

Network Controller

Intel I219V / Killer E3100G / Killer AX1675

Network Interfaces

Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Expansion / Connectivity

Expansion Slots

1 x CPU
4 x DIMM 288-pin
2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes)
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (2230 M.2 Key E slot)
2 x M.2 socket (2280 M.2 Key M slot)
3 x M.2 socket (2260/2280 M.2 Key M slot)

Storage Interfaces

SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5

Interfaces

1 x HDMI
2 x Thunderbolt 4/USB4
2 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
2 x USB 2.0
2 x aerial
1 x SPDIF out
1 x LAN (2.5Gigabit Ethernet)
1 x microphone - mini-jack
1 x audio line-out - mini-jack
1 x LAN (Gigabit Ethernet)

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
1 x speaker - header

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type

AMI

BIOS Features

UEFI BIOS

Hardware Features

ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, Clear CMOS Button, Debug LED, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Killer DoubleShot Pro, ASRock EZ Mode, Nichicon 12K Black Caps, Hi-Density Power Connectors, ASRock Ultra USB Power, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ESS 9218 SABRE HiFi DAC, ASRock Hyper BCLK Engine, WIMA audio capacitors, 105A Smart Power Stage, Intel Hybrid Technology, ASRock Auto Driver Installer, 24+1+2 Phase Power Design, Enlarged Heatsink Armor, Reinforced DIMM slot

Miscellaneous

Included Accessories

4 x M.2 screws, wireless dongle USB bracket, ASRock WiFi 2.4/5/6 GHz aerial

Cables Included

4 x Serial ATA cable

Software Included

ASRock A-Tuning, Killer Control Center

Compliant Standards

ErP Ready, RoHS 2011/65/EU, HDCP 2.3, CEC Tier II, FCC Part 15 Subpart B

Width

30.5 cm

Depth

26.7 cm

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
