General
Product Type

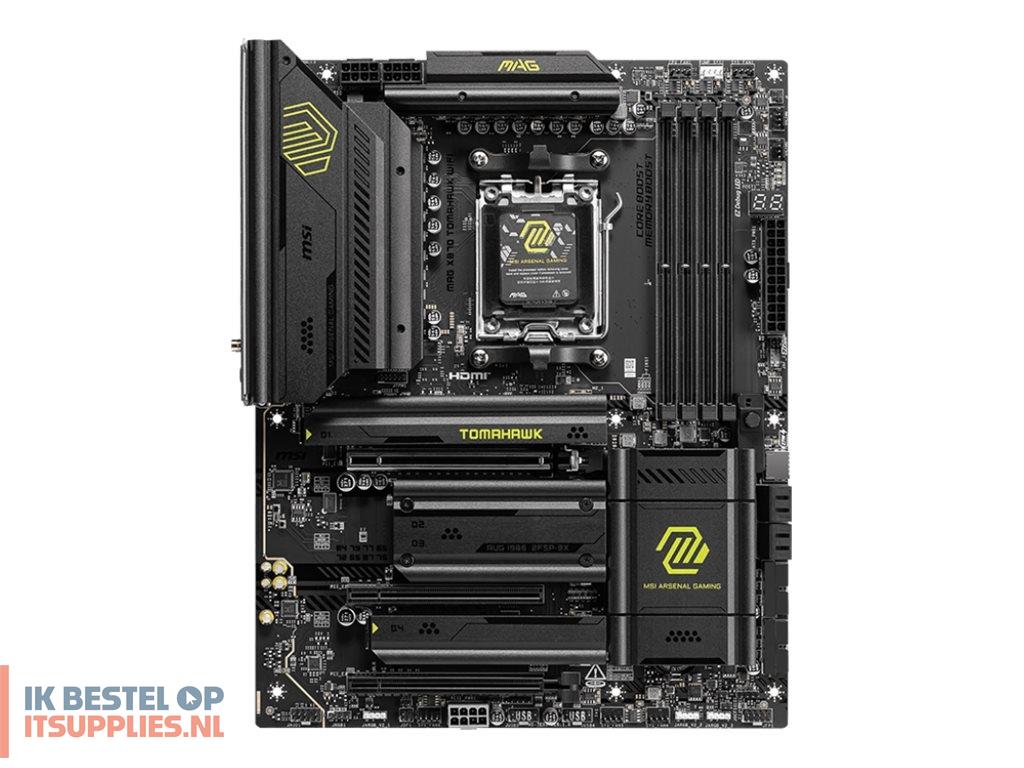

Motherboard - ATX
Chipset Type
AMD X870 / Nuvoton NCT6687-R
Processor Socket
Socket AM5
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Supported RAM
Bus Clock
2400 MHz, 2500 MHz, 2600 MHz, 2700 MHz, 2800 MHz (O.C.), 2900 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C), 4200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Audio
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8126CG
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 3.0 x1
1 x PCIe 4.0 x4
3 x M.2 socket (2260/2280 M.2 Key M slot)
1 x M.2 socket (2280/22110 M.2 Key M slot)
1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI
4 x USB 2.0
3 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
2 x USB4
2 x aerial
1 x SPDIF out
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x LAN (5Gigabit Ethernet)
Internal Interfaces
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
Features
BIOS Features
MSI ClickBIOS, UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support
Hardware Features
CUDIMM support, MSI AI Engine, MSI Audio Boost 5, MSI Mystic Light, Frozr AI Cooling, 2oz Copper PCB, DIY Friendly Design, Extended Heatsink Design, lightning gen5 solution, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, Super Charger, EZ M.2 Clip II, EZ M.2 Sheild FROZR II, EZ PCIe Release, flash BIOS button, Clear CMOS Button, pre-mounted I/O shield, EZ Conn-Design, MSI Steel Armor II, EZ Debug LED, EZ LED control, 14+2+1 Phase Power Design, 8 Layer PCB, AMD Precision Boost Overdrive (PBO), Enlarged Chipset Heatsink
Miscellaneous
Included Accessories
USB drive, EZ front panel cable, 1 to 3 EZ Conn-Cable, Wi-Fi aerial, cable sticker, 3 x EZ M.2 clip, EZ M.2 clip remover
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Norton 360
Compliant Standards
DisplayPort 1.4
