General
Product Type

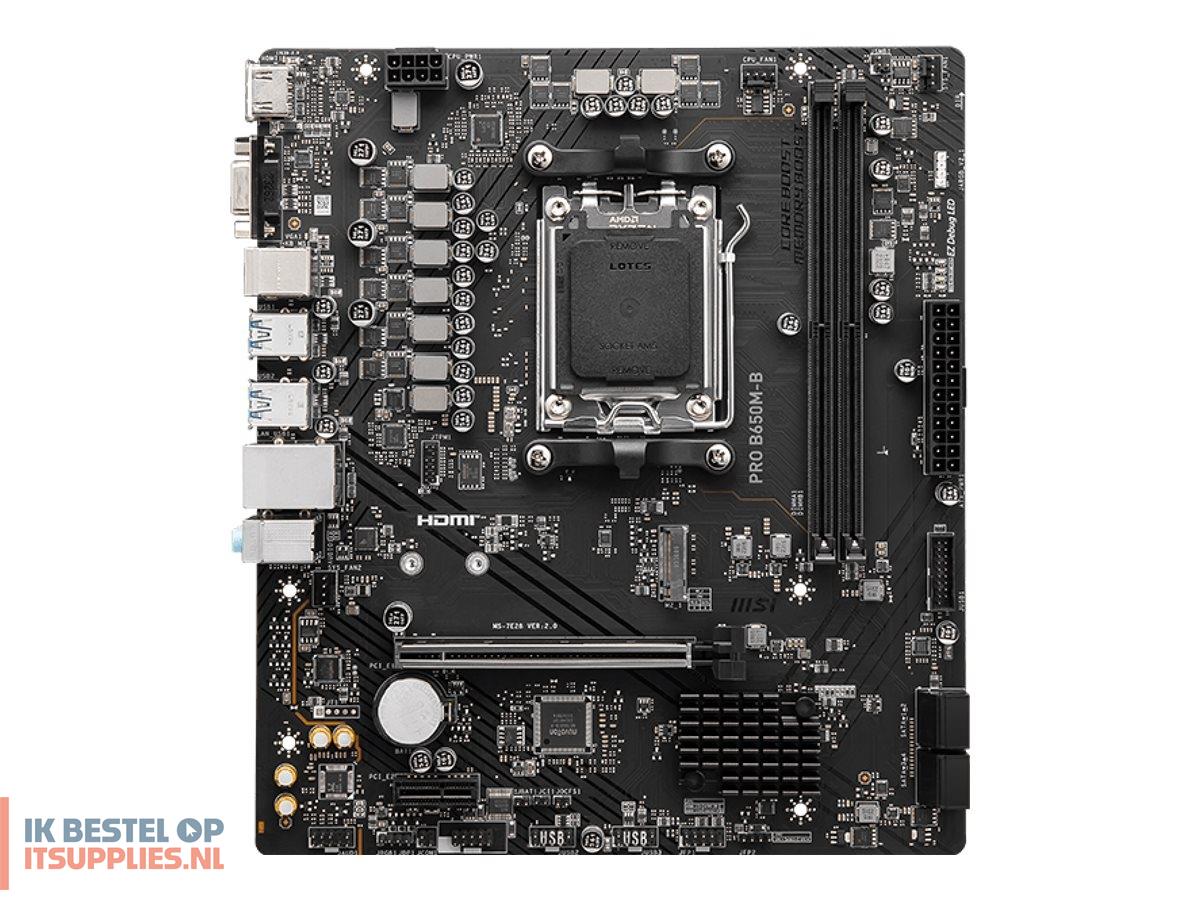

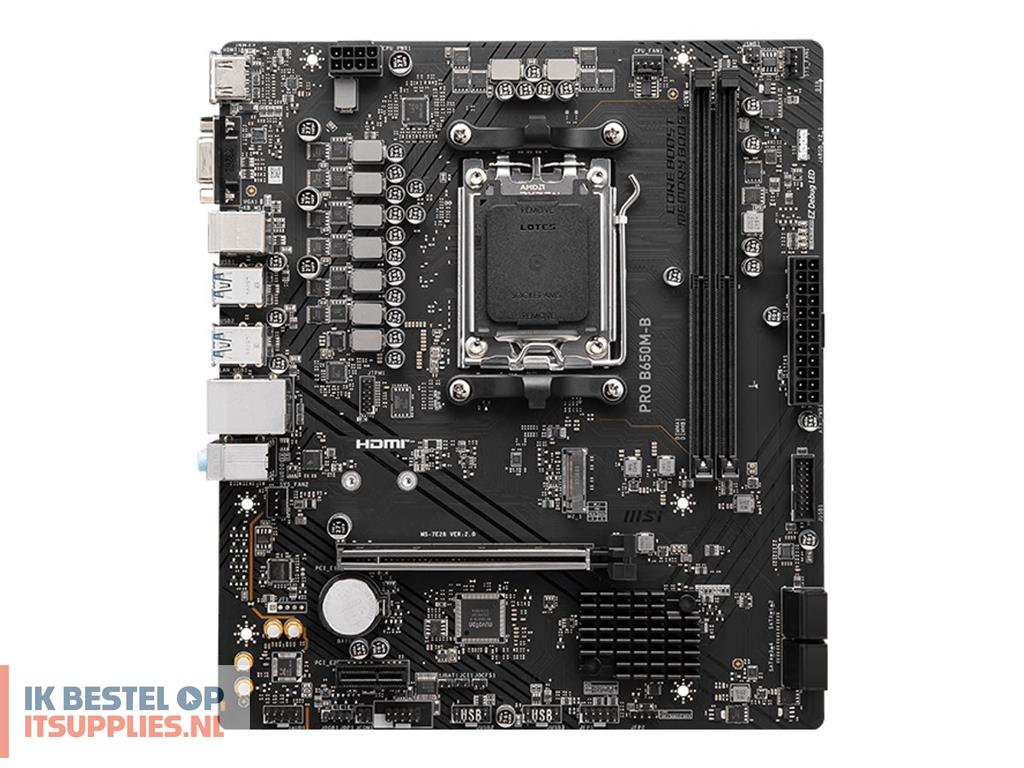

Motherboard - micro ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000/8000 Series)
Supported RAM
Bus Clock
4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Audio
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI
1 x VGA
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2 keyboard
1 x PS/2 mouse
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5, UEFI BIOS, ACPI 6.4 support, SMBIOS 3.5 support
Hardware Features
2oz Copper PCB, EZ Debug LED, EZ LED control, Frozr AI Cooling, lightning gen4 solution, MSI Audio Boost, MSI Core Boost, MSI Memory Boost, MSI Mystic Light, MSI Steel Armor
Miscellaneous
Included Accessories
IO shield, m.2 screw / standoff sets
Cables Included
1 x Serial ATA cable
Software Included
MSI Center, MSI CPU-Z, Norton 360, AIDA64 Extreme - MSI Edition
