General
Product Type

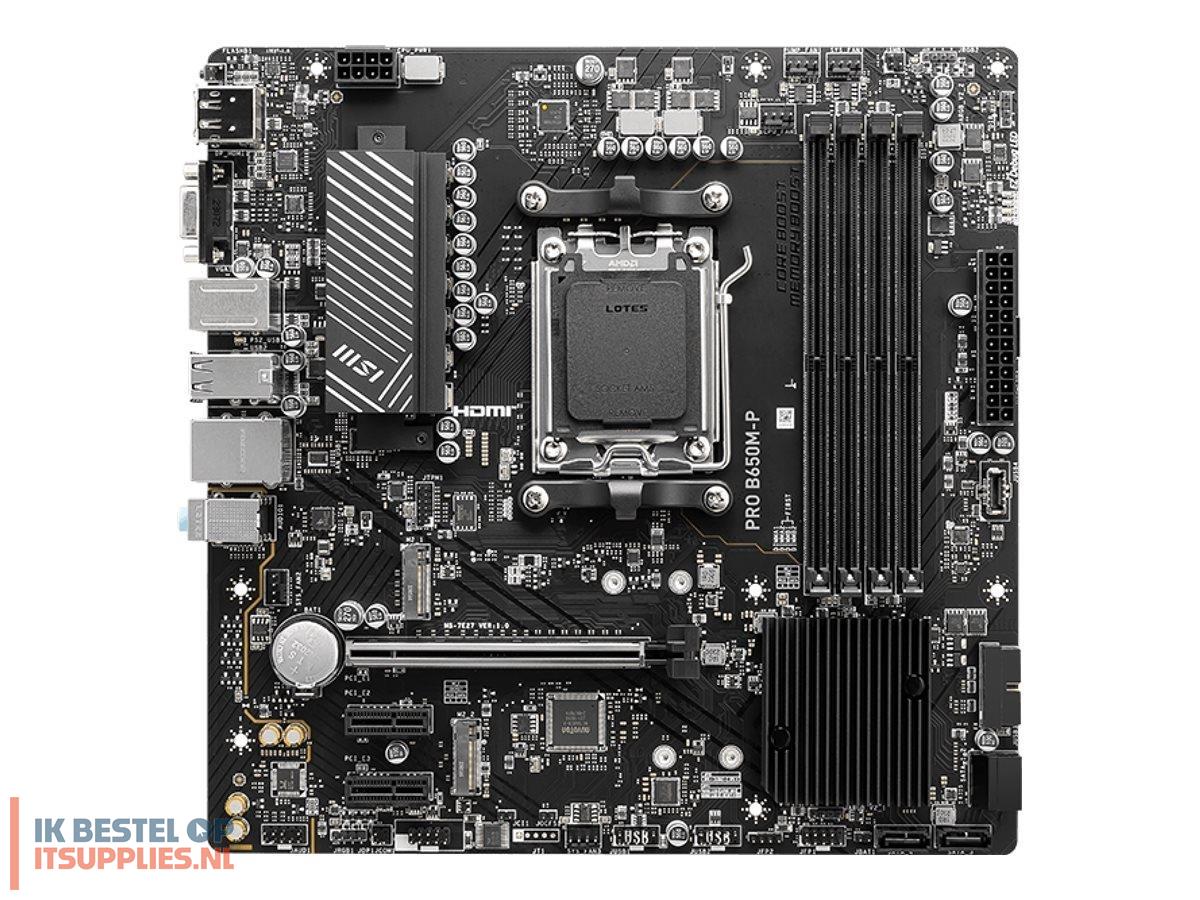

Motherboard - micro ATX
Processor Socket
Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Supported RAM
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Audio
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
2 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Interfaces
1 x HDMI
1 x DisplayPort
1 x VGA
2 x USB 3.2 Gen 1
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x LAN (2.5Gigabit Ethernet)
2 x USB 3.2 Gen 2
1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x audio - header
1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
M-Flash, UEFI BIOS
Hardware Features
Anti-pop function, Debug LED, 6 Layer PCB, MSI Steel Armor, 2oz Copper PCB, Water Pump Header, MSI Core Boost, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost, Frozr AI Cooling
Miscellaneous
Included Accessories
IO shield, 2 x M.2 clips
Cables Included
1 x Serial ATA cable
Software Included
AIDA64 Extreme (60 days trial), MSI Center
Compliant Standards
WEEE, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4
