General
Product Type

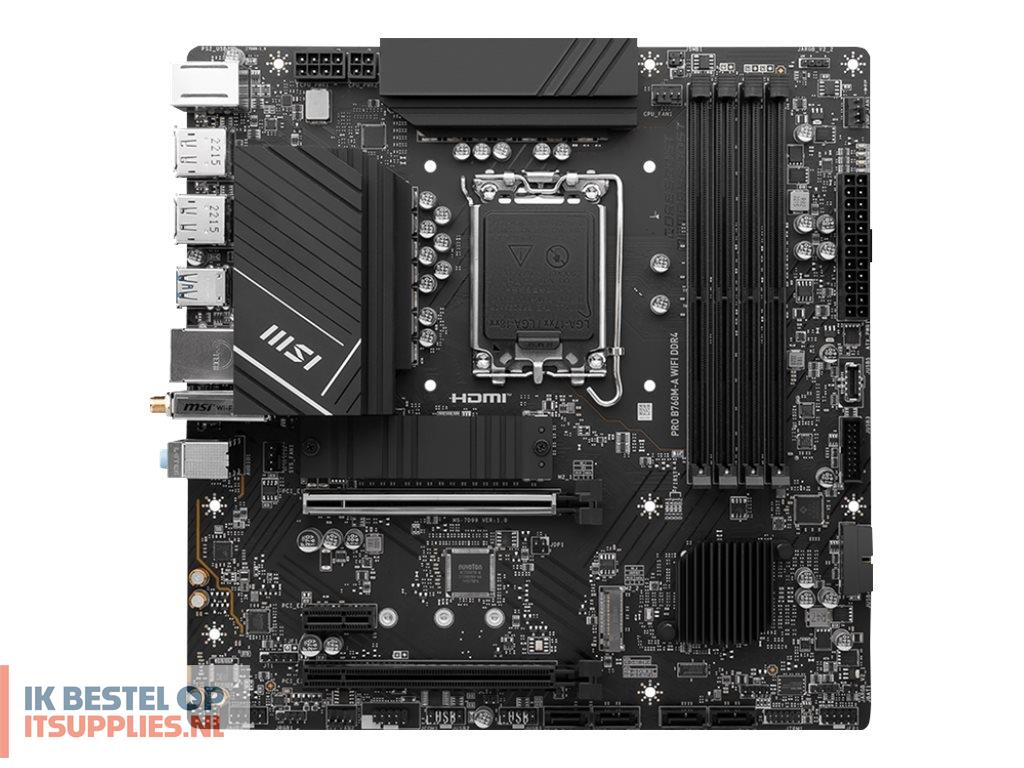

Motherboard - micro ATX
Chipset Type
Intel B760 / Nuvoton NCT6687D
Processor Socket
LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium / Celeron, supports CPUs with up to 16 cores, Maximum TDP 125 Watt)
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x PCIe 4.0 x16 (x4 mode)
2 x M.2 socket (2242/2260/2280 M.2 Key B slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2
Interfaces
2 x USB 3.2 Gen 1
2 x USB 2.0
2 x USB 3.2 Gen 2
1 x LAN (2.5Gigabit Ethernet)
2 x aerial
1 x PS/2 keyboard / mouse
1 x audio line-out - mini-jack
1 x headphones output - mini-jack
1 x microphone - mini-jack
2 x HDMI
2 x DisplayPort
Internal Interfaces
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 1 - header
1 x audio - header
1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
Multilingual BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
Hardware Features
MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Mystic Light, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, 12+1+1 Phase Power Design, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, reinforced PCIe slots, Windows 11 compatible, MSI Memory Boost
Miscellaneous
Included Accessories
2 x M.2 screws, IO shield, Wi-Fi aerial
Cables Included
1 x Serial ATA cable
Compliant Standards
WEEE, FIPS, FISMA, FCC Part 15 Class B
