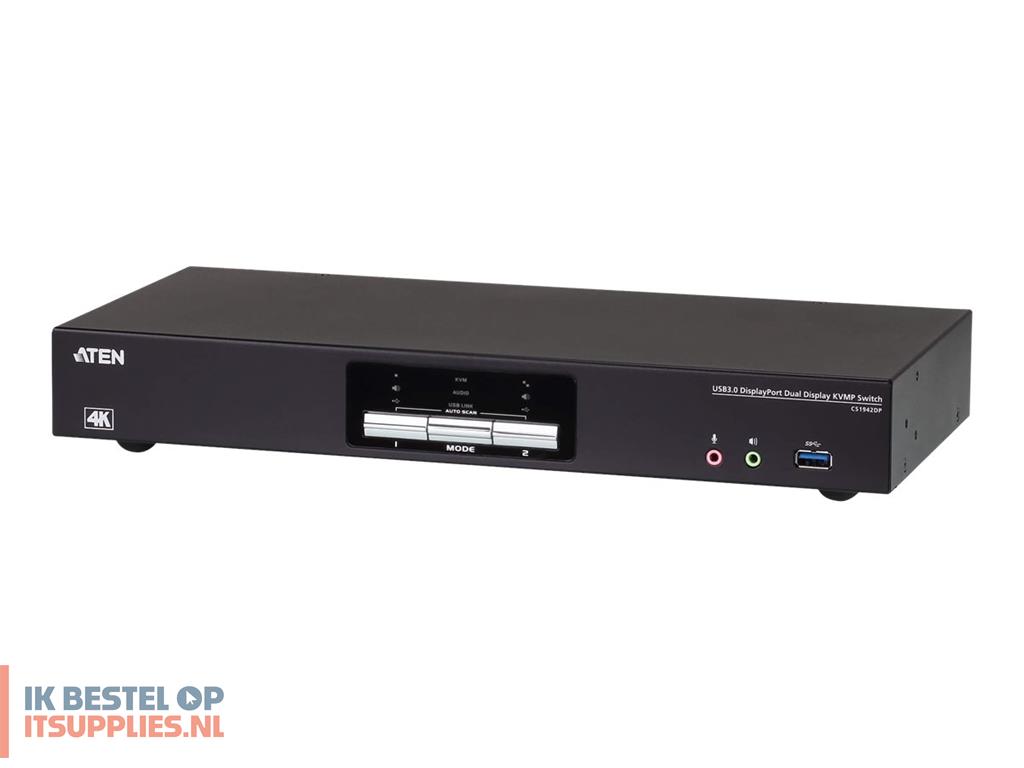

ATEN CS1942DP - KVM / audio / USB switch

Productcode: CS1942DP-AT-G | EAN/UPC: 4719264645952

€ 321,40 excl.btw

ATEN CS1942DP - KVM / audio / USB switch - 2 x KVM / audio - 2 local users - desktop

One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Supports superior video quality - up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
Computer selection via front panel, hotkeys, mouse, and RS-232 commands
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports DisplayPort Dual-Mode technology (DP++)
Supports MST (Multi-Stream Transport)
Supports console keyboard emulation / bypass feature
Supports console mouse emulation / bypass feature
Independent switching of KVM, USB, and Audio
Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
DisplayPort 1.2 compliant; HDCP compliant
Supports HD audio
Power on detection
Firmware upgradable

Op voorraad: 19 stuk(s)

Levertijd:

Product:
ATEN CS1942DP - KVM / audio / USB switch

€ 388,89 incl. 21% btw € 321,40excl. 21% btw

Winkelwagen Offerte

Omschrijving

ATEN CS1942DP - KVM / audio / USB switch - 2 x KVM / audio - 2 local users - desktop

Specificaties

General

Device Type

KVM / audio / USB switch - 2 ports

Enclosure Type

Desktop

Subtype

DisplayPort

Ports

2 x KVM / audio

KVM Local Users Qty

2 local users

Keyboard / Mouse Interface

USB

Max Resolution

4096 x 2160 / 3840 x 2160 @ 60 Hz

Features

Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, daisy-chaining support, built-in 2-port USB 3.1 hub, DP++ technology

Compliant Standards

USB 3.1 Gen 1

Built-in Devices

USB 3.1 Gen 1 hub

Expansion / Connectivity

Interfaces

2 x keyboard (USB) / mouse (USB) Type A
2 x DisplayPort output
2 x microphone input mini-jack
2 x headphones output mini-jack
1 x network stack device RJ-45
2 x USB 3.1 Gen 1 Type B
2 x USB 3.1 Gen 1 Type A
2 x microphone output mini-jack
2 x headphones input mini-jack
4 x DisplayPort input

Power

Power Device

External power adapter

Power Provided

12 V

Miscellaneous

Cables Included

4 x DisplayPort cable
2 x USB cable
4 x audio cable

Dimensions & Weight

Width

33.5 cm

Depth

15.66 cm

Height

4.4 cm

Weight

1.54 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 80% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

60 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
