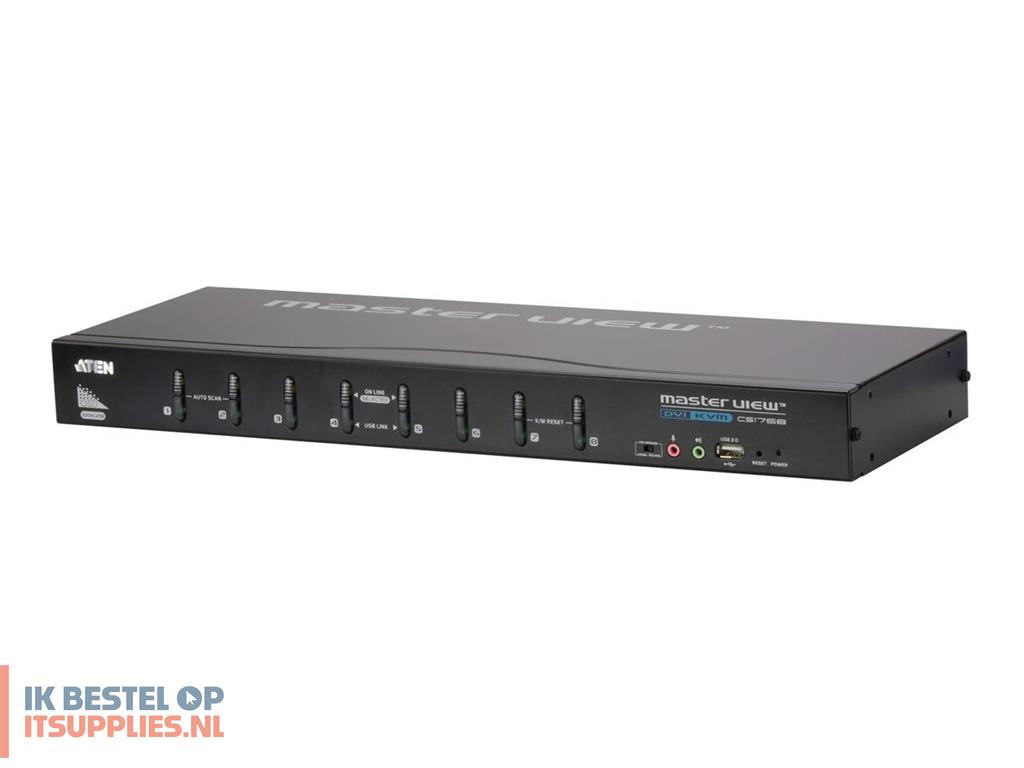

ATEN MasterView CS1768 - KVM / audio switch

Productcode: CS1768-ATA-G | EAN/UPC: -

€ 484,57 excl.btw

ATEN MasterView CS1768 - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop, rack-mountable

Supports up to 8 ports for flexible device management
Maximum video resolution of 2048 x 1536 for clear visuals
Built-in 2-port USB 2.0 hub for convenient connectivity
Designed for both desktop and rack-mountable applications
Durable metal housing with included rack mounting kit

Op voorraad: 86 stuk(s)

Levertijd:

Product:
ATEN MasterView CS1768 - KVM / audio switch

€ 586,33 incl. 21% btw € 484,57excl. 21% btw

Winkelwagen Offerte

Omschrijving

ATEN MasterView CS1768 - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop, rack-mountable

Product features

Versatile connectivity options
The ATEN MasterView CS1768 features multiple connection ports, supporting USB keyboards and mice alongside audio switching, facilitating a clutter-free workspace with efficient device management.
High video resolution support
Enjoy visual clarity with a maximum video resolution of 2048 x 1536. This capability ensures that all graphics and text appear sharp and detailed, enhancing productivity.
Adaptive environmental design
Built to function optimally in varying conditions, this KVM switch operates effectively within a temperature range of 0°C to 50°C and a humidity range of 0 - 80% RH, making it suitable for diverse environments.
Durable construction
The robust metal housing provides necessary protection for the switch while ensuring longevity. Additionally, the included rack mounting kit offers flexible installation options.
User-friendly features
With functions like Auto Scan Mode and On-Screen Display, navigating between devices becomes simple. Users can easily monitor device status through clear indicators for power and selection.

Specificaties

General

Device Type

KVM / audio switch - 8 ports - cascadable

Enclosure Type

Desktop, rack-mountable

Subtype

KVM

Ports

8 x KVM / audio

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

USB

Max Units In A Stack

Max Resolution

2048 x 1536

Features

On-Screen Display, firmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant, Video DynaSync, metal housing, broadcast mode, Auto Scan Mode

Built-in Devices

USB Hub

Status Indicators

Power, select, USB

Expansion / Connectivity

Interfaces

1 x keyboard (USB) Type A
1 x mouse (USB) Type A
1 x DVI-I
1 x VGA HD-15
2 x audio mini-jack
2 x microphone mini-jack
8 x keyboard (USB) / mouse (USB) Type B
8 x DVI-I
8 x audio mini-jack
8 x microphone mini-jack
2 x USB 2.0 Type A

Power

Power Device

External power adapter

Voltage Required

DC 5 V

Power Consumption Operational

4.53 Watt

Miscellaneous

Cables Included

2 x keyboard / mouse / video cable

Rack Mounting Kit

Included

Compliant Standards

RoHS, WEEE

Dimensions & Weight

Width

43.72 cm

Depth

16.12 cm

Height

4.4 cm

Weight

2.8 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 80% RH (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

60 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
