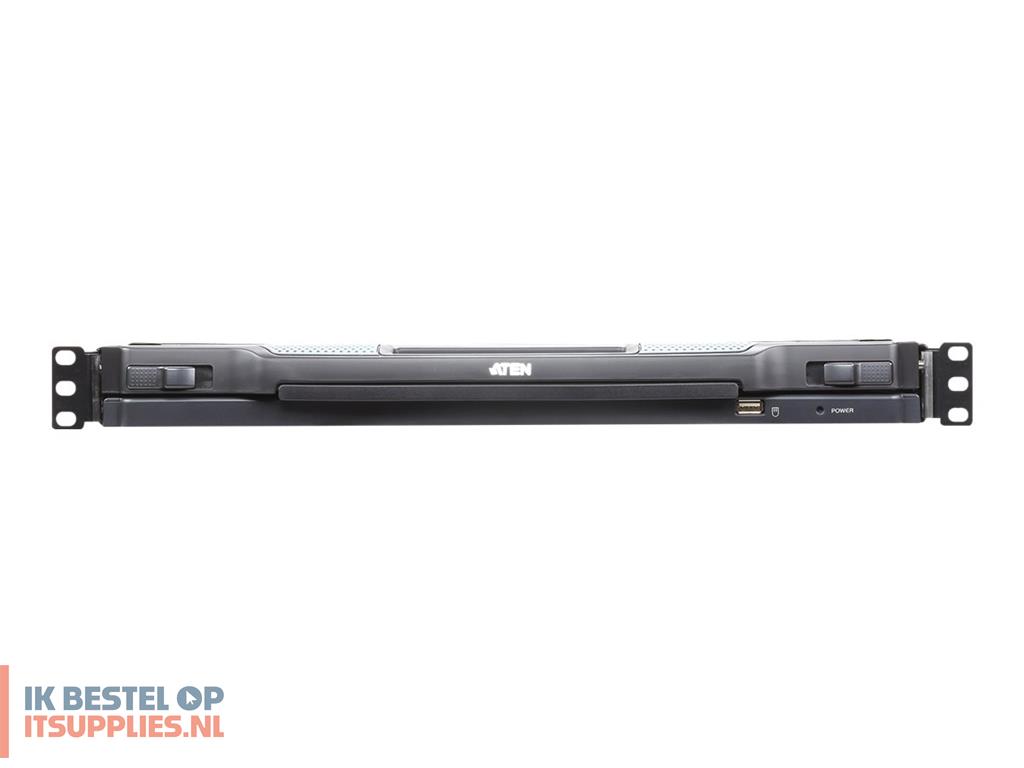

ATEN Slideaway CL5716IN - KVM console with KVM switch

Productcode: CL5716IN-ATA-XG | EAN/UPC: 4719264645631

€ 1.537,02 excl.btw

ATEN Slideaway CL5716IN - KVM console with KVM switch - 16 ports - PS/2, USB - English - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - 250 cd/m² - 1000:1 - 5 ms - VGA - 1U

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with LED-backlit LCD monitor in a Slideaway housing
Space saving technology - up to two consoles (one bus) control up to 16 computers
Daisy chain up to 15 additional units - control up to 256 computers from a single console
Extra console port - manage computers from an external console
Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60 Hz/24 bit color depth for remote sessions
Dual interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows connected computers to access USB peripherals
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports multimedia USB keyboards for Windows, Mac and Sun
Supports external USB mouse
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack
LCD module rotates up to 115 degrees for a more comfortable viewing angle

Op voorraad: 0 stuk(s)

Levertijd:

Product:
ATEN Slideaway CL5716IN - KVM console with KVM switch

€ 1859,79 incl. 21% btw € 1537,02excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

ATEN Slideaway CL5716IN - KVM console with KVM switch - 16 ports - PS/2, USB - English - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - 250 cd/m² - 1000:1 - 5 ms - VGA - 1U

Specificaties

General

Display Type

KVM console / TFT active matrix

Diagonal Size

19"

Built-in Devices

16 port KVM switch

Aspect Ratio

5:4

Native Resolution

1280 x 1024 at 75 Hz

Pixel Pitch

0.294 mm

Brightness

250 cd/m²

Contrast Ratio

1000:1

Colour Support

16.7 million colours

Response Time

5 ms

Horizontal Viewing Angle

170

Vertical Viewing Angle

160

Backlight Technology

LED backlight

Dimensions (WxDxH)

48 cm x 68.92 cm x 4.4 cm

Height (Rack Units)

Weight

13.67 kg

Input

Type

Keyboard, touchpad

KVM

Type

KVM switch - 16 ports

Keyboard / Mouse Interface

PS/2, USB

Max Resolution

1920 x 1080 @ 60 Hz

Max Cascading Depth

256

Connectivity

Interfaces

16 x KVM (SPHD-17)
Mouse (USB)
Console (SPHD-18)
Daisy chain port (DB-25)
Management (RJ-11)
USB (Type A)
Network (RJ-45)

Mechanical

Rotation Angle

115

Miscellaneous

Features

LED lighting

Cables Included

2 x keyboard / mouse / video cable - 1.8 m
Console cable - 27 cm
Management cable
Power cable

Rack Mounting Kit

Included

Compliant Standards

IPv6 Ready

Localisation

Germany

Power

Input Voltage

AC 100 - 240 V (50 - 60 Hz)

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 80% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
