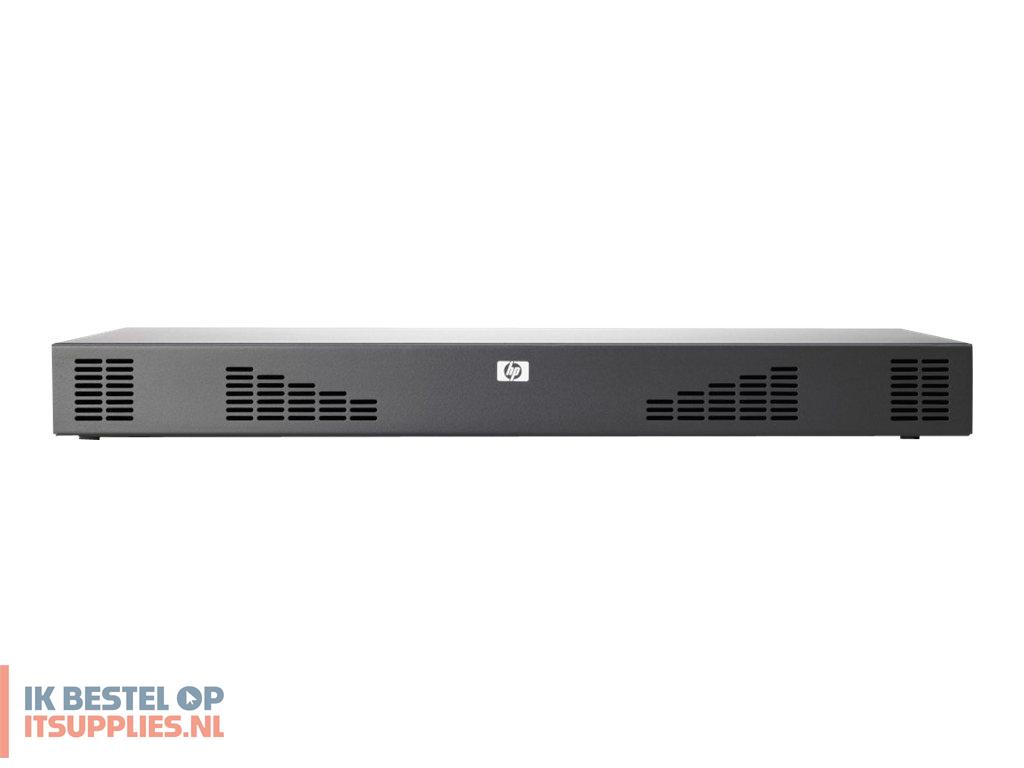

HP HPE IP Console G2 Switch with Virtual Media and CAC 4x1Ex32

Productcode: AF622A | EAN/UPC: 0884962274231

€ 4.494,39 excl.btw

HPE IP Console G2 Switch with Virtual Media and CAC 4x1Ex32 - KVM switch - 32 x KVM port(s) - 1 local user - 4 IP users - desktop - for HPE 10XXX G2, 600, 800; Advanced Series Racks 42U 600; ProLiant DL20 Gen9, e2000 G6; Rack

Common Access Card (CAC) support
True serial
DVD support
Supports existing ITFC server modules, backward compatible
Dual-stack IPv6 with stateless auto configuration
Support for DVD-ROM data over virtual media
Remote virtual media
ILO compatibility
Local console user interface
Programmable scanning
Configuration NVRAM
Password protection

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HP HPE IP Console G2 Switch with Virtual Media and CAC 4x1Ex32

€ 5438,21 incl. 21% btw € 4494,39excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Product features

Remote virtual media
Easily load and update software and firmware from anywhere on the LAN or WAN when used with virtual media interface adapters.
iLO compatibility
Easily switch between remote KVM and iLO sessions directly from the IP Viewer software.
Local console user interface
It displays all system-related information on the console monitor, same look and feel as the remote On-Board Web Interface (OBWI).
Programmable scanning
An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection.
Configuration NVRAM
NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power.
Password protection
For protection against unauthorized users, the switch box provides a local password option for security purposes as well as individual user authentication and access rights for remote users.

Specificaties

General

Device Type

KVM switch - 32 ports - cascadable

Enclosure Type

Desktop 1U

Subtype

KVM

Ports

32 x KVM port(s)

KVM Local Users Qty

1 local user

KVM IP Users Qty

4 IP users

Keyboard / Mouse Interface

USB

Encryption Algorithm

DES, Triple DES, AES, SSL

Authentication Method

LDAP

Max Resolution

1600 x 1200

Features

Firmware upgradable

Expansion / Connectivity

Interfaces

32 x KVM RJ-45
1 x RJ-45 management
1 x keyboard (USB) Type A
1 x mouse (USB) Type A
1 x VGA HD-15
1 x LAN RJ-45
4 x USB Type A

Power

Power Device

Internal power supply

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V (50/60 Hz)

Dimensions & Weight

Width

43.8 cm

Depth

23.7 cm

Height

4.4 cm

Weight

3.4 kg

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

50 °C

Humidity Range Operating

20 - 80%

Compatibility Information

Designed For

HPE 10642 G2 1200mm deep Shock Rack, 10647 G2 1200mm deep Shock Rack, 600mm x 1075mm Advanced Pallet Rack, 600mm x 1075mm Advanced Shock Rack, 600mm x 1075mm Enterprise Crate Rack, 600mm x 1075mm Enterprise Pallet Rack, 600mm x 1075mm Enterprise Shock Rack, 600mm x 1200mm Advanced Pallet Rack, 600mm x 1200mm Advanced Shock Rack, 600mm x 1200mm Enterprise Air Duct Rack, 600mm x 1200mm Enterprise Pallet Rack, 600mm x 1200mm Enterprise Shock Network Rack, 600mm x 1200mm Enterprise Shock Rack, 600mm x 1200mm Grey Enterprise Air Duct Rack, 600mm x 1200mm Grey Enterprise Shock Rack, 600mm x 1200mm Network Advanced Shock Rack, 800mm x 1075mm Enterprise Pallet Rack, 800mm x 1075mm Enterprise Shock Rack, 800mm x 1200mm Advanced Pallet Rack, 800mm x 1200mm Advanced Shock Rack, 800mm x 1200mm Enterprise Pallet Rack, 800mm x 1200mm Enterprise Shock Network Rack, 800mm x 1200mm Enterprise Shock Rack, 800mm x 1200mm Grey Enterprise Shock Network Rack, 800mm x 1200mm Grey Enterprise Shock Rack, 800mm x 1200mm Network Advanced Shock Rack
HPE Advanced Series Racks 42U 600mm x 1075mm Kitted Advanced Pallet Rack with Side Panels and Baying, 42U 600mm x 1075mm Kitted Advanced Shock Rack with Side Panels and Baying
HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Entry, DL360p Gen8, DL360p Gen8 CMS, DL380 G6, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, e2000 G6, m350, m400, m710, m800, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350p Gen8
HPE Rack

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
