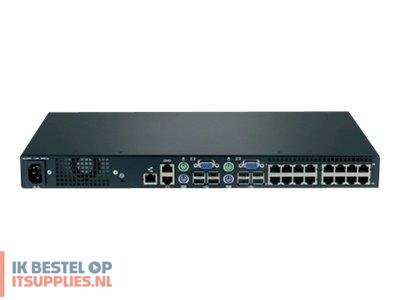

IBM Lenovo Local 2x16 Console Manager

Productcode: 1754A2X | EAN/UPC: 0883436083577

€ 2.107,83 excl.btw

Lenovo Local 2x16 Console Manager - KVM switch - CAT5 - 16 x KVM port(s) - 2 local users - rack-mountable - for System x3620 M3; x3950 X5

Increase serviceability
Enhance security
Improve scalability

Op voorraad: 0 stuk(s)

Levertijd:

Product:
IBM Lenovo Local 2x16 Console Manager

€ 2550,47 incl. 21% btw € 2107,83excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Lenovo Local 2x16 Console Manager - KVM switch - CAT5 - 16 x KVM port(s) - 2 local users - rack-mountable - for System x3620 M3; x3950 X5

Product features

Increase serviceability
1754 KVM switches support virtual media capabilities, which allow a single USB media, mass storage device or integrated optical drive in the 19" 1U Console kit (172319X) to be quickly switched directly to any server connected to the switch using the Virtual Media Conversion Option Gen2 (VCO2). This can help improve serviceability and lower operational expenses by allowing the transfer of data to deploy, patch, recover or even boot multiple servers all from one local console.
Enhance security
Two Factor Authentication (TFA) devices, such as Smart Card, or Common Access Card (CAC) readers, have quickly become an integral part of organizations' security standards and a requirement for secure government data centers based on HSPD12 . The 1754 LCM offerings support TFA devices providing a convenient single point of access, at the console tray, to authenticate the connected servers. Centralized authentication will help prevent security breaches, simplify rack management, and improve staff efficiencies. These solutions are also easily architected using the Virtual Media Conversion Option Gen2 (VCO2).
Improve scalability
The 16- port 1U analog solutions also support the ability to "daisy chain" up to 16 systems off a single switch port when used with existing UCO or KCOs and tier or cascade up to two levels. This allows the ability to manage up to 256 servers connected to multiple switches from one local console.

Specificaties

General

Device Type

KVM switch - 16 ports - cascadable

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

16 x KVM port(s)

KVM Local Users Qty

2 local users

Server Connection Via Twisted Pair

CAT5

Max Resolution

1600 x 1200

Expansion / Connectivity

Interfaces

16 x

Power

Power Device

Internal power supply

Miscellaneous

Rack Mounting Kit

Included

Dimensions & Weight

Width

43.2 cm

Depth

16.5 cm

Height

4.8 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

20 - 80%

Compatibility Information

Designed For

Lenovo System x3620 M3
Lenovo System x3950 X5

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
