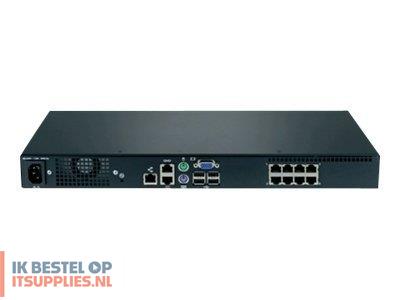

Lenovo Local 1x8 Console Manager

Productcode: 1754A1X | EAN/UPC: 0883436083584

€ 1.327,33 excl.btw

Lenovo Local 1x8 Console Manager - KVM switch - CAT5 - 8 x KVM port(s) - 1 local user - rack-mountable - for System x3620 M3; x3950 X5

Increase serviceability
Enhance security

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Lenovo Local 1x8 Console Manager

€ 1606,07 incl. 21% btw € 1327,33excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Lenovo Local 1x8 Console Manager - KVM switch - CAT5 - 8 x KVM port(s) - 1 local user - rack-mountable - for System x3620 M3; x3950 X5

Product features

Increase serviceability
1754 KVM switches support virtual media capabilities, which allow a single USB media, mass storage device or integrated optical drive in the 19" 1U Console kit to be quickly switched directly to any server connected to the switch using the Virtual Media Conversion Option Gen2 (VCO2). This can help improve serviceability and lower operational expenses by allowing the transfer of data to deploy, patch, recover or even boot multiple servers all from one local console.
Enhance security
Two Factor Authentication (TFA) devices, such as Smart Card, or Common Access Card (CAC) readers, have quickly become an integral part of organizations' security standards and a requirement for secure government data centers based on HSPD12 (Presidential Directive 12). The 1754 LCM offerings support TFA devices providing a convenient single point of access, at the console tray, to authenticate the connected servers. Centralized authentication will help prevent security breaches, simplify rack management, and improve staff efficiencies. These solutions are also easily architected using the Virtual Media Conversion Option Gen2 (VCO2).

Specificaties

General

Device Type

KVM switch - 8 ports - cascadable

Enclosure Type

Rack-mountable 1U

Subtype

KVM

Ports

8 x KVM port(s)

KVM Local Users Qty

1 local user

Server Connection Via Twisted Pair

CAT5

Max Resolution

1600 x 1200

Expansion / Connectivity

Interfaces

8 x

Power

Power Device

Internal power supply

Miscellaneous

Rack Mounting Kit

Included

Dimensions & Weight

Width

43.2 cm

Depth

16.5 cm

Height

4.8 cm

Weight

1.9 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

20 - 80%

Compatibility Information

Designed For

Lenovo System x3620 M3
Lenovo System x3950 X5

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
