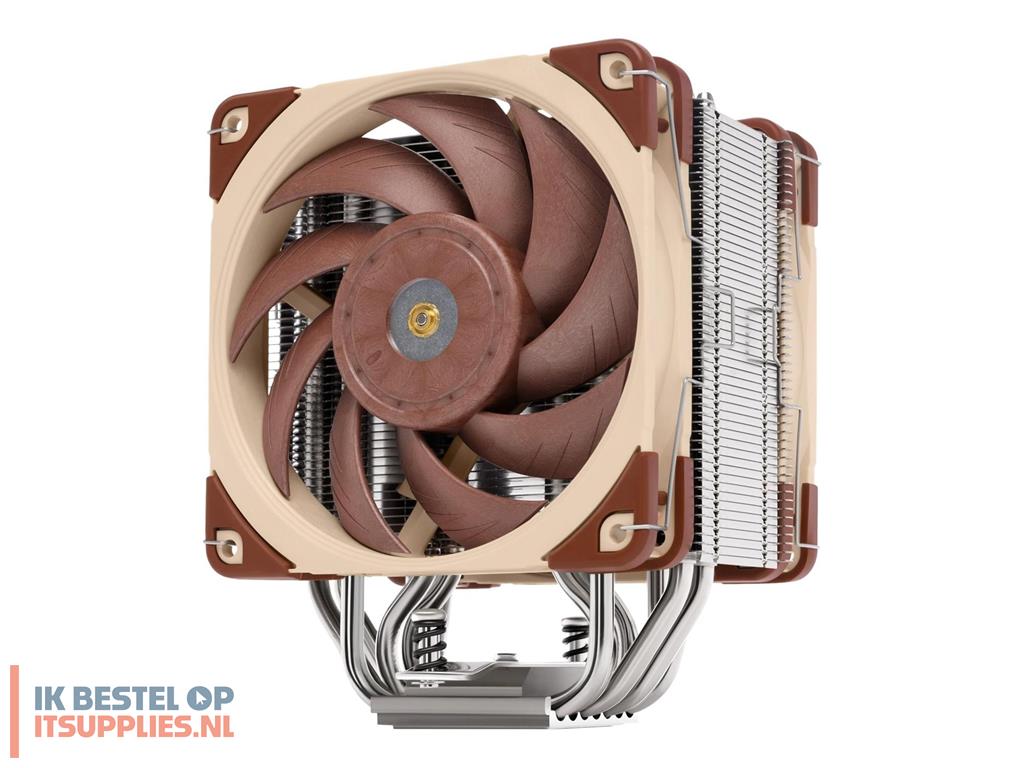

Noctua NH-U12 series NH-U12A - Processor cooler

Productcode: NH-U12A | EAN/UPC: 9010018000160

€ 153,64 excl.btw

Noctua NH-U12 series NH-U12A - Processor cooler - (for: LGA1156, AM2, AM2+, AM3, LGA1155, AM3+, LGA2011, FM1, FM2, LGA1150, FM2+, LGA1151, AM4, LGA2066, LGA1200) - aluminium and copper - 120 mm - for P/N: 0-761345-80102-7

Award-winning NH-U12 series
140mm performance in 120mm size
100% RAM compatibility on LGA115x and AM4
Classic 120mm tower size for excellent case and PCIe compatibility
Dual NF-A12 120mm fans
PWM support and Low-Noise Adaptors
SecuFirm2 multi-socket mounting system
Compatibility with past and future sockets
NT-H1 thermal compound
Soldered interface between heatpipes and fins

Op voorraad: 31 stuk(s)

Levertijd:

Product:
Noctua NH-U12 series NH-U12A - Processor cooler

€ 185,90 incl. 21% btw € 153,64excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Award-winning NH-U12 series
First introduced in 2005, Noctua's NH-U12 series has won more than 600 awards and recommendations from leading international hardware websites and magazines. The NH-U12A is the latest addition to this prestigious series that has established itself as a benchmark for premium-quality quiet 120mm coolers.
140mm performance in 120mm size
Thanks to its completely revised, thoroughly optimized 7 heatpipe layout, 37% more fin surface area (as compared to the NH-U12S) and a dual fan push/pull configuration that uses the new, state-of-the-art NF-A12x25 fans, the NH-U12A pushes the performance envelope in the 120mm class and can actually match or even outperform many 140mm sized coolers.
100% RAM compatibility on LGA115x and AM4
Due to its asymmetric design, the NH-U12A does not overhang the RAM slots on Intel LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, the rear fan will overhang the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 42mm in height.
Classic 120mm tower size for excellent case and PCIe compatibility
Standing 158mm tall, the NH-U12A is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.
Dual NF-A12 120mm fans
The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. Using this elite-class fan in a push/pull dual fan configuration is one of the cornerstones of the NH-U12A's commanding performance and acoustic efficiency.
PWM support and Low-Noise Adaptors
The NF-A12 120mm fans supplied with the NH-U12A support PWM for convenient automatic speed control through the motherboard: Full performance under load, virtually silent at idle! In addition, maximum fan speed can be reduced from 2000 to 1700rpm using the supplied Low-Noise Adaptors for even quieter operation.
SecuFirm2 multi-socket mounting system
Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2 mounting included with the NH-U12A is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.
Compatibility with past and future sockets
Thanks to Noctua's SecuFirm ecosystem, the NH-U12A can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-U12A a safe long-term investment.
NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminum, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-U12A's fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn't deteriorate even after many years of usage.

Specificaties

General

Product Type

Processor cooler

Package Content

2 Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, NT-H1 high-grade thermal compound, Noctua metal case-badge, 4-pin PWM Y-cable, 2 NF-A12 PWM fans

Width

12.5 cm

Depth

11.2 cm

Height

15.8 cm

Weight

1.22 kg

Heatsink & Fan

Compatible With

LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, Socket FM2+, LGA1151 Socket, Socket AM4, LGA2066 Socket, LGA1200 Socket

Heatsink Material

Aluminium and copper

Fans Qty

Fan Diameter

120 mm

Fan Height

25 mm

Fan Bearing

SSO2 bearing

Rotation Speed

450-2000 rpm

Noise Level

18.8 - 22.6 dBA

Power Connector

4-pin fan connector

Rated Voltage

12 V

Features

Pulse-width modulation (PWM) support

Miscellaneous

MTBF

150,000 hour(s)

Manufacturer Warranty

Service & Support

Limited warranty: - 6 years

Compatibility Information

Designed For

P/N: 0-761345-80102-7

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
