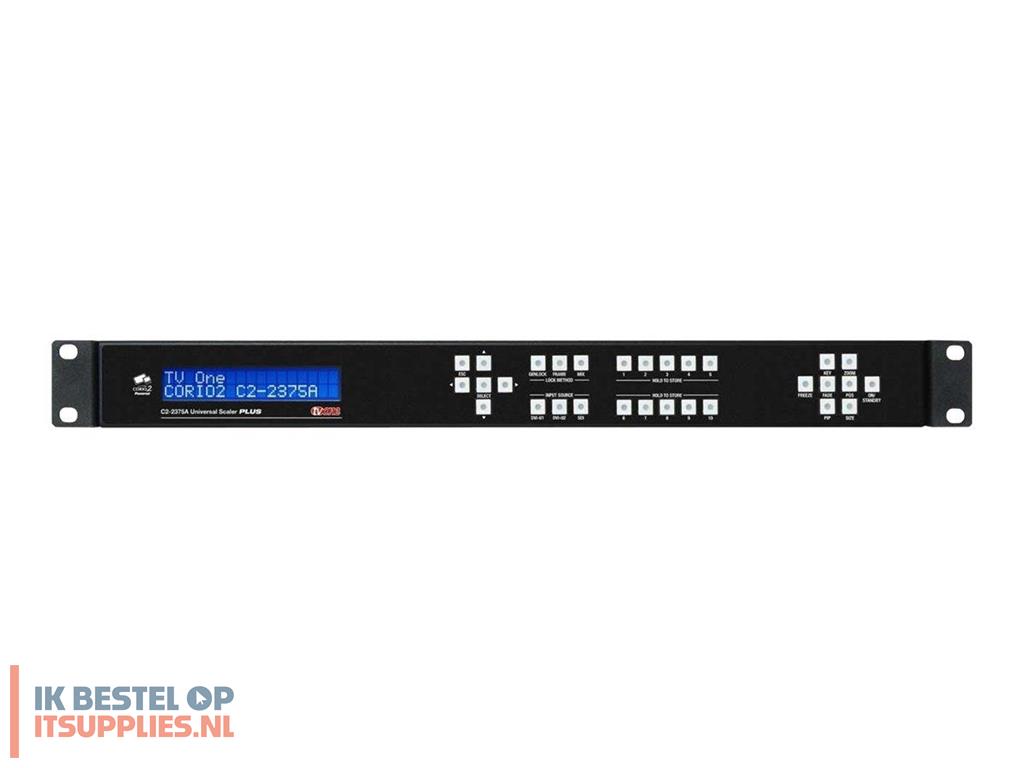

tvONE TV One C2-2375A Universal Scaler PLUS

Productcode: C2-2375A | EAN/UPC: 8716065125931

€ 4.712,40 excl.btw

TV One C2-2375A Universal Scaler PLUS - Universal video scaler / audio switcher / picture in picture inserter / chroma keyer / luma keyer / video mixer

Up-down-cross conversion
2nd DVI/analog output can be different format
Motion compensation & 3:2 pulldown
Temporal interpolation & diagonal interpolation
Noise reduction for PAL, NTSC and 1080i inputs
Automatic incoming resolution detection
AutoSet - automatic picture sizing of PC inputs
Video signal parameter adjustments
AFD and VP packet support for SDI
Integral audio routing
User-defined logo insertion
Borders with variable size and color
IP interface
Variable image zoom to 10x and shrink to 10%

Op voorraad: 0 stuk(s)

Levertijd:

Product:
tvONE TV One C2-2375A Universal Scaler PLUS

€ 5702,00 incl. 21% btw € 4712,40excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

TV One C2-2375A Universal Scaler PLUS - Universal video scaler / audio switcher / picture in picture inserter / chroma keyer / luma keyer / video mixer

Specificaties

General

Type

Universal video scaler / audio switcher / picture in picture inserter / chroma keyer / luma keyer / video mixer

Width

43.1 cm

Depth

33.4 cm

Height

4.4 cm

Weight

4.82 kg

Studio & Production Equipment

Supported Video Standards

PAL, NTSC

Features

3:2 pull-down for NTSC film mode, picture-in-picture support

Power

Voltage Required

AC 120/230 V

Frequency

50/60 Hz

Terminals

(1) x component video input - BNC x 5 ¦ (1) x component video output - BNC x 5 ¦ (1) x 3G-SDI input - BNC - with loop through ¦ (2) x 3G-SDI output - BNC ¦ (2) x DVI-U input - DVI-I ¦ (2) x DVI-U output - DVI-I ¦ (1) x genlock input - BNC - with loop through ¦ (1) x network - RJ-45 ¦ (1) x serial - 9 pin D-Sub (DB-9)

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 85% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
