General
Product Type

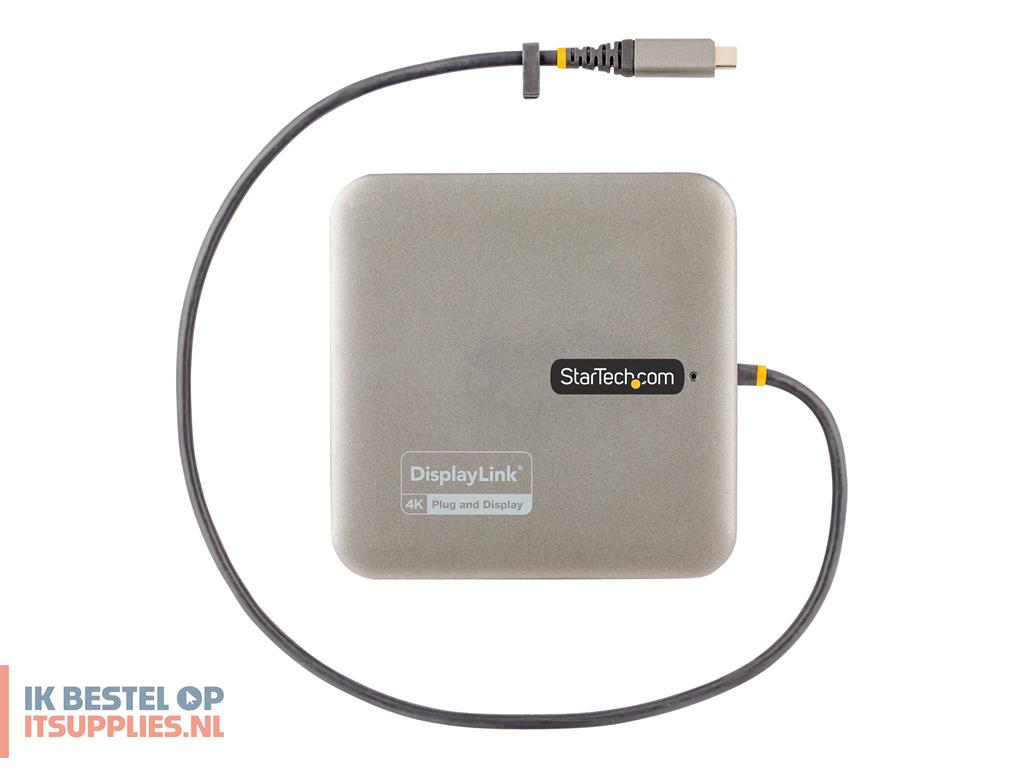

Docking station
Enclosure Colour
Space grey
Video
Max Resolution Details
4096 x 2160 - 60 Hz (Dual Display)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Compliant Standards
USB 3.2 Gen 2, Power Delivery 3.0, Battery Charging 1.2, USB4
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x SD / MMC Memory Card
Interfaces
2 x display / video - HDMI - 19 pin HDMI Type A
1 x USB-C 3.2 Gen 2 - 24 pin USB-C
1 x USB 3.2 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x USB-C with Power Delivery (100 W) (power only) - 24 pin USB-C
Miscellaneous
Input Device
SD card reader
Cables Included
1 x USB-C cable - integrated - 30 cm
Features
Up to 10Gbps data transfer, Preboot Execution Environment (PXE) support, full duplex support, 100W power delivery (pass-through), 20W power consumption, plastic housing, USB-C powered, HDR10 support, DisplayLink DL-6950 chipset, Fast Role Swap, wake on LAN
Compliant Standards
UASP (USB Attached SCSI Protocol), RoHS, RCM, WEEE, Thunderbolt 3, Thunderbolt 4, DisplayLink certified
System Requirements
OS Required
Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Google Chrome OS, Android, Ubuntu Linux 18.04, Ubuntu Linux 20.04, Apple macOS 10.11 - 10.12, Apple macOS 10.14 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
