General

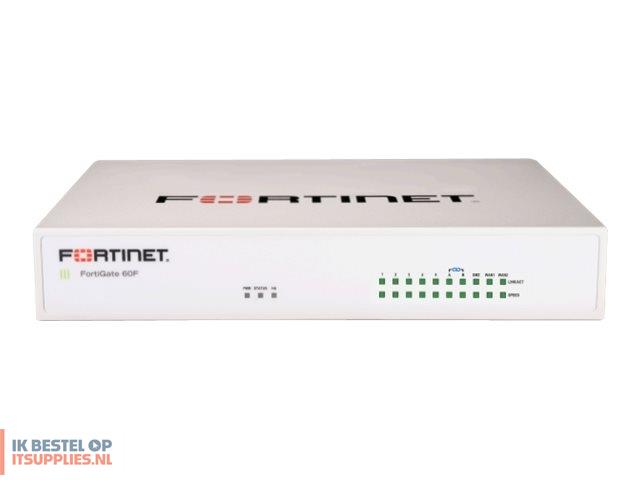

Device Type
Security appliance
Bundled Services
5 years 24x7 FortiCare and FortiGuard Unified (UTM) Protection
Processor / Memory / Storage
Processors Installed
1 x Fortinet FortiASIC SOC4
Networking
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol
IPSec
Performance
VPN throughput (512-bit IPSec): 6.5 Gbps
NGFW throughput: 1 Gbps
SSL inspection throughput: 750 Mbps
IPS throughput: 1.4 Gbps
Firewall throughput: 9000000 packets per second
Threat protection throughput: 700 Mbps
Firewall throughput (1518-byte UDP): 10 Gbps
Firewall throughput (512-byte UDP): 10 Gbps
Firewall throughput (64-byte UDP): 6 Gbps
Firewall throughput: 9 Mpps
Application control (AVC) throughput: 1.8 Gbps
VPN throughput (SSL): 900 Mbps
Capacity
Latency: 4 µs
Concurrent sessions: 700000
New sessions: 35000
Firewall policies: 5000
Gateway to gateway IPSec VPN Tunnels: 200
Virtual domains: 10
Number of FortiSwitches: 16
Number of FortiToken devices: 500
Client to gateway IPSec VPN tunnels: 500
Number of registered FortiClients: 200
Concurrent SSL VPN users: 200
SSL inspection concurrent sessions: 55000
Features
Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection
Encryption Algorithm
SSL, TLS 1.3
Expansion / Connectivity
Interfaces
5 x 1000Base-T - RJ-45
2 x 1000Base-T - RJ-45
2 x 1000Base-T - RJ-45 (WAN / DMZ)
1 x console - RJ-45
1 x USB 3.0 - Type A
Miscellaneous
Compliant Standards
UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
18.5 Watt
Software / System Requirements
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
