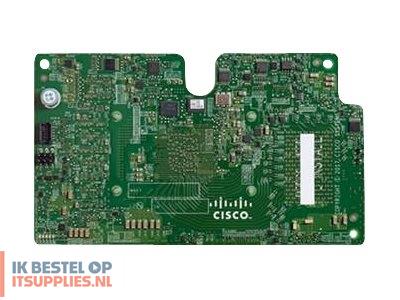

Cisco UCS Virtual Interface Card 1440

Productcode: UCSB-MLOM-40G-04= | EAN/UPC: 0889728010221

€ 661,52 excl.btw

Cisco UCS Virtual Interface Card 1440 - Network adapter - LAN-on-motherboard (LOM) - 40Gb Ethernet / FCoE x 2 - for UCS B200 M5, B480 M5, SmartPlay Select B200 M5

Stateless and agile platform
Network interface virtualization

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Cisco UCS Virtual Interface Card 1440

€ 800,44 incl. 21% btw € 661,52excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Cisco UCS Virtual Interface Card 1440 - Network adapter - LAN-on-motherboard (LOM) - 40Gb Ethernet / FCoE x 2 - for UCS B200 M5, B480 M5, SmartPlay Select B200 M5

Product features

Stateless and agile platform
The personality of the card is determined dynamically at boot time using the service profile associated with the server. The number, type (NIC or HBA), identity (MAC address and World Wide Name [WWN]), failover policy, bandwidth, and Quality-of-Service (QoS) policies of the PCIe interfaces are all determined using the service profile. The capability to define, create, and use interfaces on demand provides a stateless and agile server infrastructure.
Network interface virtualization
Each PCIe interface created on the VIC is associated with an interface on the Cisco UCS fabric interconnect, providing complete network separation for each virtual cable between a PCIe device on the VIC and the interface on the Fabric Interconnect.

Specificaties

General

Device Type

Network adapter

Form Factor

Plug-in module

Interface (Bus) Type

LAN-on-motherboard (LOM)

Networking

Ports

40Gb Ethernet / FCoE x 2

Connectivity Technology

Wired

Data Link Protocol

10 Gigabit Ethernet, 40 Gigabit Ethernet

Data Transfer Rate

40 Gbps

Capacity

Jumbo frame size: up to 9 KB
Virtual interfaces (VLANs): 256

Compliant Standards

IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1BR

Expansion / Connectivity

Interfaces

2 x 40Gb Ethernet / FCoE

Power

Power Consumption Operational

21 Watt

Dimensions & Weight

Width

14.9 cm

Depth

2.44 cm

Height

8.63 cm

Compatibility Information

Designed For

Cisco UCS B200 M5 Blade Server, B200 M5 Blade Server (Tracer), B480 M5 Blade Server, SmartPlay Select B200 M5, SmartPlay Select B200 M5 (Tracer), SmartPlay Select B200 M5 Advanced 1, SmartPlay Select B200 M5 Advanced 1 (Tracer), SmartPlay Select B200 M5 Advanced 2, SmartPlay Select B200 M5 Advanced 2 (Tracer), SmartPlay Select B200 M5 Advanced 3, SmartPlay Select B200 M5 Advanced 4, SmartPlay Select B200 M5 Advanced 4 (Tracer), SmartPlay Select B200 M5 Basic 1, SmartPlay Select B200 M5 Basic 1 (Tracer), SmartPlay Select B200 M5 High Core 1, SmartPlay Select B200 M5 High Core 1 (Tracer), SmartPlay Select B200 M5 High Core 2, SmartPlay Select B200 M5 High Core 2 (Tracer), SmartPlay Select B200 M5 High Frequency 1, SmartPlay Select B200 M5 High Frequency 1 (Tracer), SmartPlay Select B200 M5 High Frequency 2, SmartPlay Select B200 M5 High Frequency 3, SmartPlay Select B200 M5 High Frequency 3 (Tracer), SmartPlay Select B200 M5 Standard 1, SmartPlay Select B200 M5 Standard 1 (Tracer), SmartPlay Select B200 M5 Standard 2, SmartPlay Select B200 M5 Standard 2 (Tracer)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
