StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Ca

Productcode: PCI2S1P2 | EAN/UPC: 0065030891301

€ 23,19 excl.btw

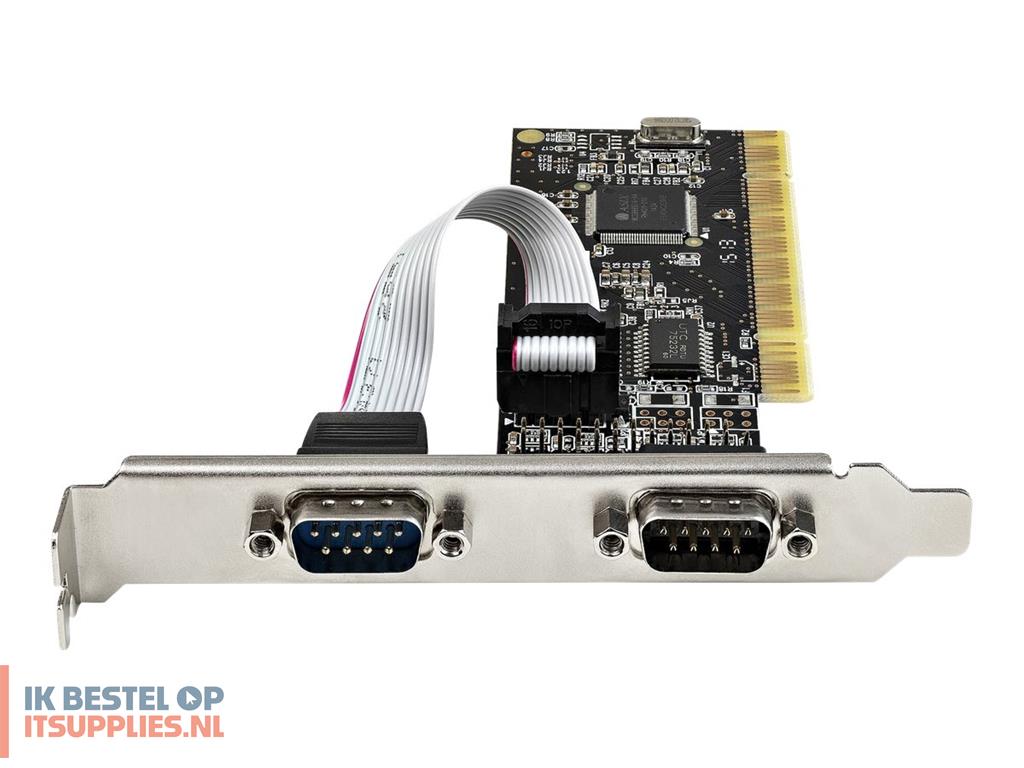

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Card Controller, PCI to Printer Card - PCI Serial & Parallel Card (PCI2S1P2) - Serial adapter - PCIe low profile - RS-232 x 2 - black

Adds an LPT parallel port
Adds a COM serial port
Wide installation compatibility

Op voorraad: 8 stuk(s)

Levertijd:

Product:
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Ca

€ 28,06 incl. 21% btw € 23,19excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Adds an LPT parallel port
The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.
Adds a COM serial port
The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.
Wide installation compatibility
With broad OS support, this PCI serial/parallel card is easy to integrate into mixed environments.

Specificaties

General

Device Type

Serial adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express

Networking

Ports

RS-232 x 2

Connectivity Technology

Wired

Cabling Type

Serial RS-232

Data Link Protocol

RS-232

Network / Transport Protocol

SPP

Features

ECP, 256-byte FIFO

Compliant Standards

16C550 UART, IEEE 1284

Processor / Memory

Processor

MCS9865

Expansion / Connectivity

Interfaces

2 x RS-232 - 9 pin D-Sub (DB-9)

Miscellaneous

Included Accessories

2 x low-profile bracket, 1 x bracket with DB25 connector

Compliant Standards

FCC, RoHS

Colour

Black

Software / System Requirements

OS Required

Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.6.x to 5.x LTS versions

Dimensions & Weight

Width

2.16 cm

Depth

13.4 cm

Height

12 cm

Weight

141 g

Dimensions & Weight (Shipping)

Shipping Width

14.2 cm

Shipping Depth

17 cm

Shipping Height

3 cm

Shipping Weight

190 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

10 - 90%

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
