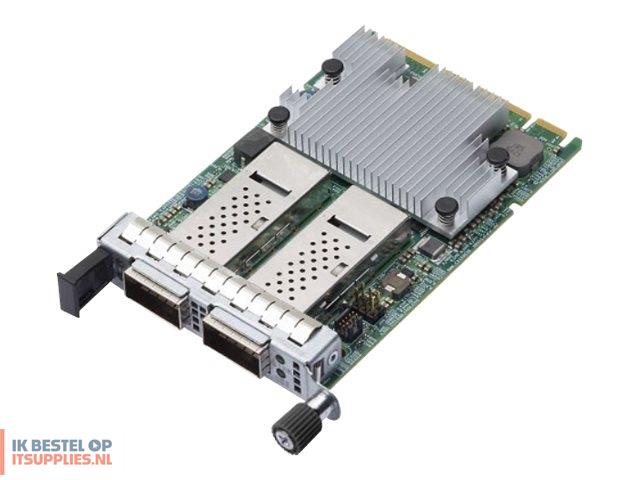

Brocade Broadcom NetXtreme E-Series N2100G

Productcode: BCM957508-N2100G | EAN/UPC: 5715063275009

€ 776,36 excl.btw

Broadcom NetXtreme E-Series N2100G - Network adapter - PCIe 4.0 x16 low profile - 100 Gigabit QSFP56 x 2

Supports 50G PAM-4 and 25G NRZ signaling
Multi-Host up to four hosts
Fully compliant with the SFF-8402 standard
SR-IOV with up to 1k virtual functions (VFs)
Function-Level Reset (FLR) support
TruFlow flow processing engine
Tunnel-aware stateless offloads
DCB support - PFC, ETS, QCN, DCBx
RDMA over Converged Ethernet (RoCE)
Network Controller Sideband Interface (NC-SI)
SMBus 2.0
MCTP over SMBus
Jumbo frames up to 9 KB
Advanced congestion avoidance
Multiqueue, NetQueue, and VMQ
IPv4 and IPv6 offloads
TCP, UDP, and IP checksum offloads
Large send offload (LSO)
Large receive offload (LRO)
TCP segmentation offload (TSO)
Receive-side scaling (RSS)
Transmit-side scaling (TSS)
VLAN insertion/removal
Interrupt coalescing
Network boot - PXE, UEFI
Wake-on-LAN (WOL)
MSI and MSI-X
OCP 3.0 FRU support

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Brocade Broadcom NetXtreme E-Series N2100G

€ 939,40 incl. 21% btw € 776,36excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Broadcom NetXtreme E-Series N2100G - Network adapter - PCIe 4.0 x16 low profile - 100 Gigabit QSFP56 x 2

Product features

Enhanced connectivity
Equipped with two 100Gb Ethernet QSFP56 ports, the Broadcom NetXtreme E-Series N2100G network adapter ensures high-speed, reliable connectivity for demanding data center environments.
Advanced networking features
This network adapter supports a wide range of features such as Data Center Bridging (DCB), Enhanced Transmission Selection (ETS), and RDMA over Converged Ethernet (RoCE), enhancing data efficiency and network management.
Optimized for virtualization
With support for technologies like Single Root I/O Virtualization (SR-IOV) and VMware NetQueue, the N2100G facilitates efficient virtual machine traffic management, making it ideal for virtualized data centers.
Energy efficient
Operating at a power consumption of just 19.3 watts, the N2100G is designed to maximize performance while minimizing energy use, contributing to a greener data center.
Robust security and management features
Features like Wake On LAN (WOL) and iSCSI boot provide enhanced security and management options, ensuring reliable and secure network operations.

Specificaties

General

Device Type

Network adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 4.0 x16

PCI Specification Revision

PCIe 4.0

Networking

Ports

100 Gigabit QSFP56 x 2

Connectivity Technology

Wired

Data Link Protocol

100 Gigabit Ethernet

Status Indicators

Link/activity

Features

WOL, DCBX support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frames support (up to 9000 bytes), Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt coalescing, ETS, QCN, Multi-Host technology, OCP 3.0 support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, NetQueue

Processor / Memory

Processor

Broadcom BCM57508

Expansion / Connectivity

Interfaces

2 x 100Gb Ethernet - QSFP56

Miscellaneous

Compliant Standards

MSA SFF-8402

Power

Power Consumption Operational

19.3 Watt

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
