General
Device Type

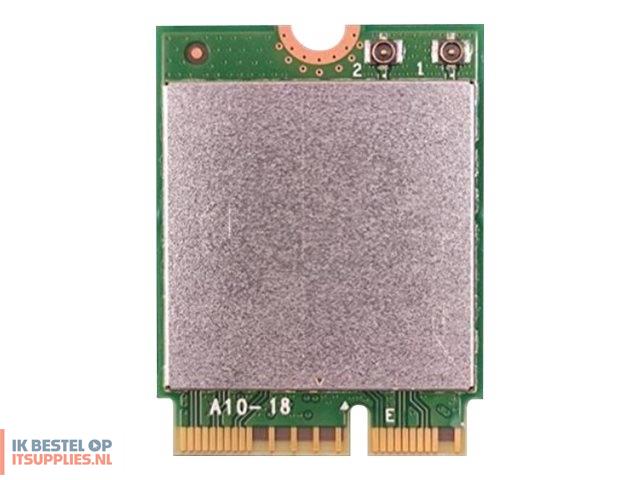

Network adapter
Interface (Bus) Type
M.2 2230 (CNVio2)
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Data Transfer Rate
2.4 Gbps
Line Coding Format
1024 QAM, OFDMA
Frequency Band
2.4 GHz, 5 GHz, 6 GHz
Features
WMM support, Wi-Fi Direct, 802.1x authentication, 2x2 MU-MIMO technology, Intel vPro Technology support, 160MHz bandwidth support
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Bluetooth 5.2, Wi-Fi CERTIFIED 6E, IEEE 802.11az
Miscellaneous
Encryption Algorithm
PEAP, FIPS 140-2, WPA2, 128-bit AES-CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2
Compliant Standards
UL, cUL, CB, IEC 60950-1, FISMA
Software / System Requirements
OS Required
Linux, Google Chrome OS, Windows 10, Windows 11
Dimensions & Weight
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
80 °C
Humidity Range Operating
50 - 90% (non-condensing)
